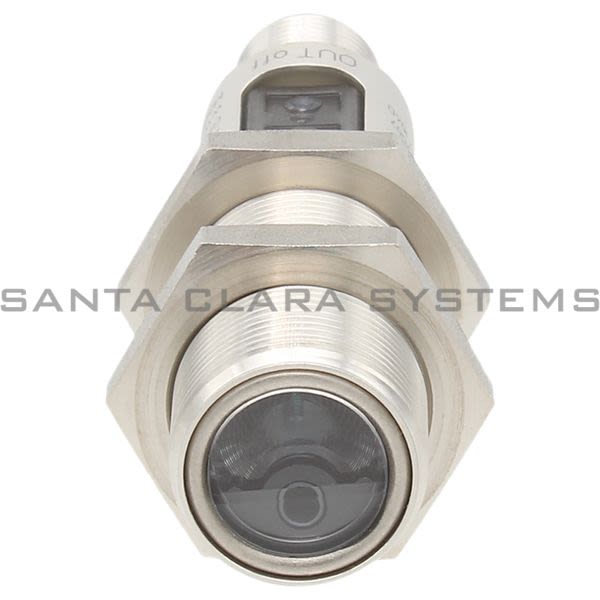

• Efector OGH700 Diffuse Reflection Sensor | OGHLFPKG/US100 Product Image

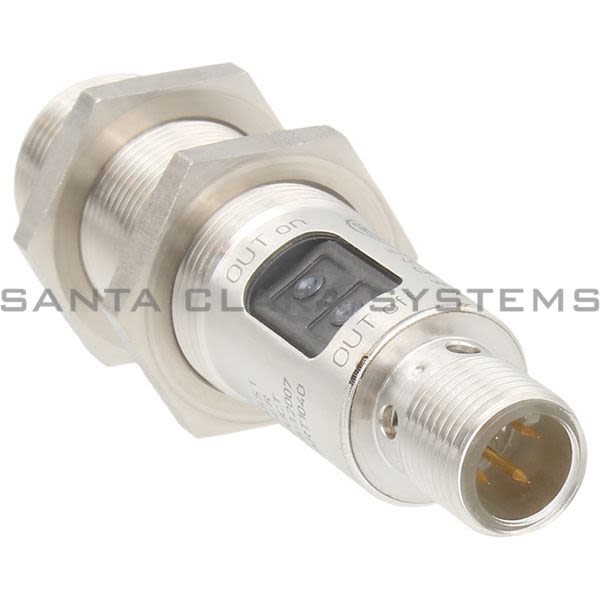

  • Efector OGH700 Diffuse Reflection Sensor | OGHLFPKG/US100 Product Image

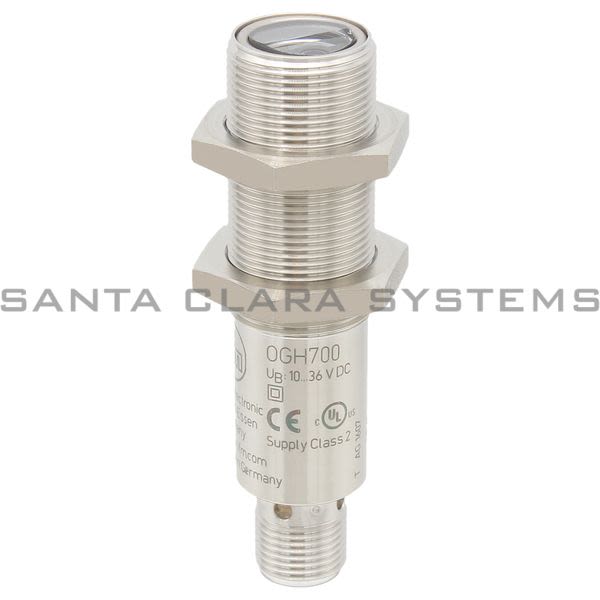

  • Efector OGH700 Diffuse Reflection Sensor | OGHLFPKG/US100 Product Image

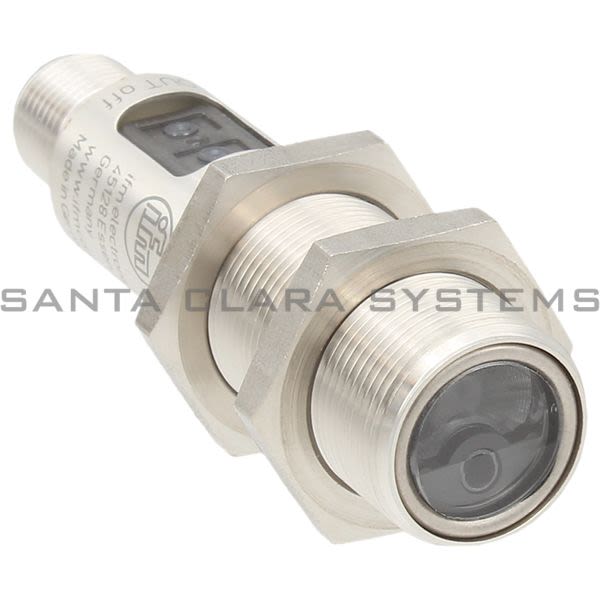

  • Efector OGH700 Diffuse Reflection Sensor | OGHLFPKG/US100 Product Image
  • Efector OGH700 Barcode

OGH700

Product Summary:

  • Electrical Design: DC PNP
  • Output Function: light-on / dark-on programmable via pushbutton
  • Material: stainless steel (1.4404 / 316L); PA; LCP; EPDM; TPU (urethane)
  • Operating Voltage [V]: 10...36 DC
  • Ambient temperature [C]: -10...60
Get a Quote

Current response time:

7 Minutes 51 Seconds
  • Description: Diffuse Reflection Sensor | OGHLFPKG/US100
  • Electrical Design: DC PNP
  • Output Function: light-on / dark-on programmable via pushbutton
  • Material: stainless steel (1.4404 / 316L); PA; LCP; EPDM; TPU (urethane)
  • Operating Voltage [V]: 10...36 DC
  • Ambient temperature [C]: -10...60
  • Alternate Manufacturer Name: IFM
  • Type of light: red light
  • Laser protection class: 1
  • Housing: Threaded type
  • Dimensions [mm]: M18 x 1 / L = 72
  • System: Background suppression
  • Function principle: Diffuse reflection sensor
  • Current consumption [mA]: 15
  • Protection class: II
  • Reverse polarity protection: yes
  • Wave length [nm]: 655
  • Typ. lifetime [h]: 50000
  • Max. voltage drop switching output DC [V]: 2.5
  • Permanent current rating of switching output DC [mA]: 200
  • Switching frequency DC [Hz]: 1000
  • Short-circuit protection: yes
  • Type of short-circuit protection: yes (non-latching)
  • Overload protection: yes
  • Range [mm]: 20...200; (white paper 200 x 200 mm 90 % remission)
  • Range on white object (90 % remission) [mm]: 20...200
  • Range on grey object (18 % remission) [mm]: 20...100
  • Range on black object (6 % remission) [mm]: 20...70
  • Range adjustable: yes
  • Diameter of the smallest detectable object [mm]: 1.5
  • Max. light spot diameter [mm]: 1.2
  • Background suppression available: yes
  • Protection: IP 65; IP 67
  • EMC: EN 60947-5-2
  • MTTF [years]: 485
  • Weight [g]: 62.3
  • Thread designation: M18 x 1
  • Lens material: PMMA
  • Display: Switching status 1 x LED, yellow
  • Accessories (supplied): lock nuts: 2 x
  • Remarks: cULus - Class 2 source required
  • Pack quantity: 1 pcs.
  • Connection: 1 x M12
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on OGH700 . Santa Clara Systems carries 2,078 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
