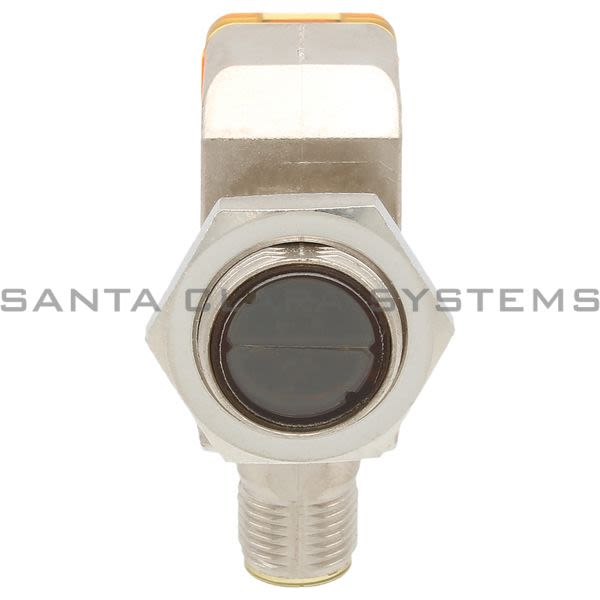

• Efector OGP280 Retro-reflective Sensor | OGP-DPKG/US/CUBE Product Image

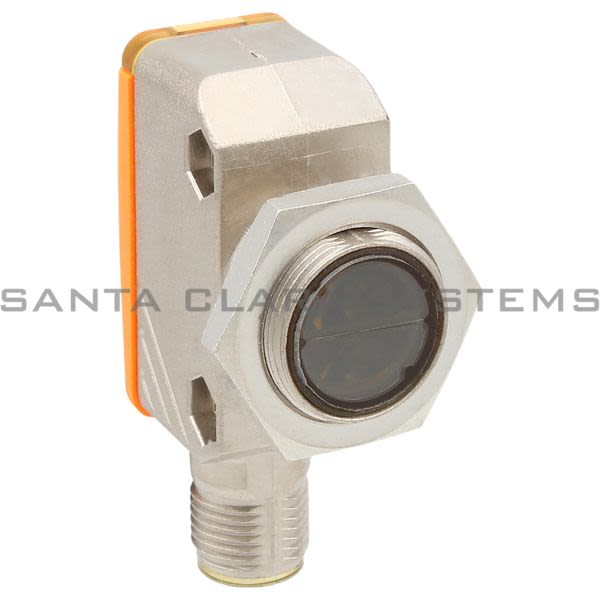

  • Efector OGP280 Retro-reflective Sensor | OGP-DPKG/US/CUBE Product Image

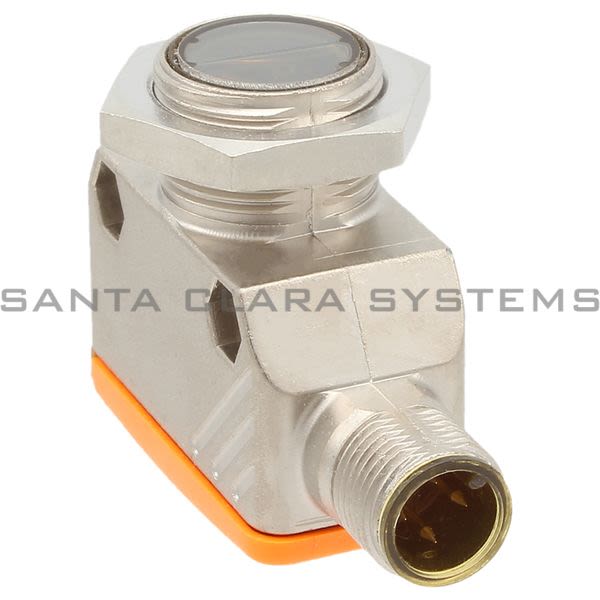

  • Efector OGP280 Retro-reflective Sensor | OGP-DPKG/US/CUBE Product Image

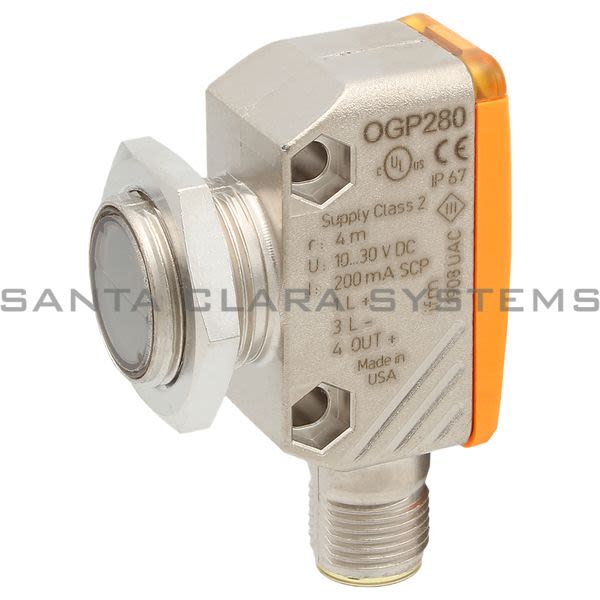

  • Efector OGP280 Retro-reflective Sensor | OGP-DPKG/US/CUBE Product Image
  • Efector OGP280 Barcode

OGP280

Product Summary:

  • Electrical Design: Pnp
  • Output Function: Dark-On Mode
  • Material: Diecast Zinc; Pei
  • Function Principle: Retro-Reflective Sensor
  • Operating Voltage [V]: 10...30 Dc
Let Us Find It

Current response time:

15 Minutes 19 Seconds
  • Description: Retro-reflective Sensor | OGP-DPKG/US/CUBE
  • Electrical Design: Pnp
  • Output Function: Dark-On Mode
  • Material: Diecast Zinc; Pei
  • Function Principle: Retro-Reflective Sensor
  • Operating Voltage [V]: 10...30 Dc
  • Current Consumption [Ma]: 25
  • Protection Class: Iii
  • Reverse Polarity Protection: Yes
  • Type Of Light: Red Light
  • Wave Length [Nm]: 624
  • Max. Voltage Drop Switching Output Dc [V]: 2.5
  • Permanent Current Rating Of Switching Output Dc [Ma]: 200
  • Switching Frequency Dc [Hz]: 1000
  • Short-Circuit Protection: Yes
  • Type Of Short-Circuit Protection: Yes (Non-Latching)
  • Overload Protection: Yes
  • Range Referred To Prismatic Reflector [M]: 0.1...4; (Prismatic Reflector 80 E20005)
  • Range Adjustable: No
  • Max. Light Spot Diameter [Mm]: 160
  • Light Spot Dimensions Refer To: At Maximum Range
  • Polarization Filter Available: Yes
  • Ambient Temperature [C]: -25...60
  • Protection: Ip 65; Ip 67
  • Emc: En 60947-5-2
  • Housing: Rectangular
  • Lens Material: Pmma
  • Lens Alignment: Side Sensing
  • Display: Switching Status 1 X Led, Yellow Power 1 X Led, Green
  • Accessories (Supplied): Lock Nut: 1 X
  • Connection: Connector: 1 X M12
  • Alternate Manufacturer Name: IFM
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on OGP280 . Santa Clara Systems carries 2,078 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
