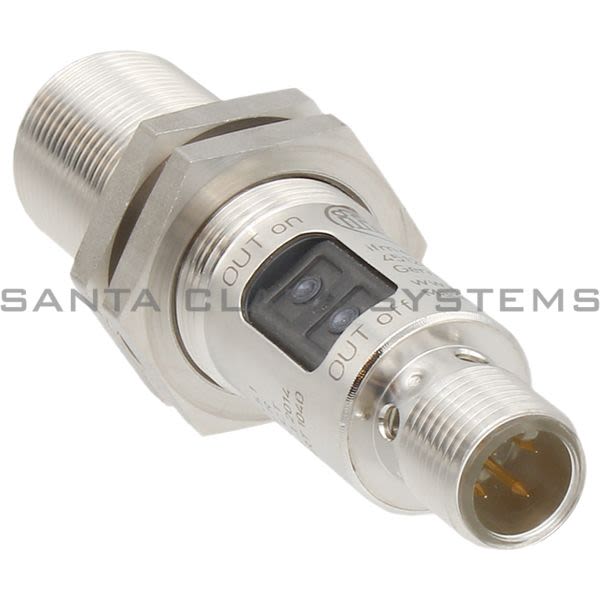

• Efector OGP701 Photoelectric Sensor | Ogplfpkg/US100 Product Image

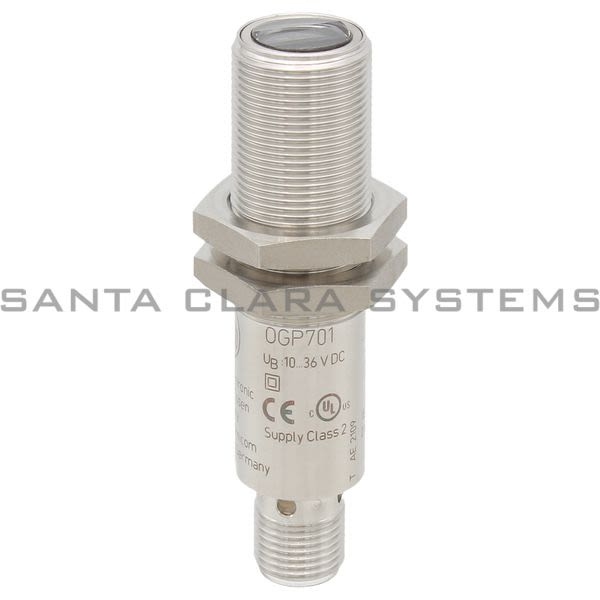

  • Efector OGP701 Photoelectric Sensor | Ogplfpkg/US100 Product Image

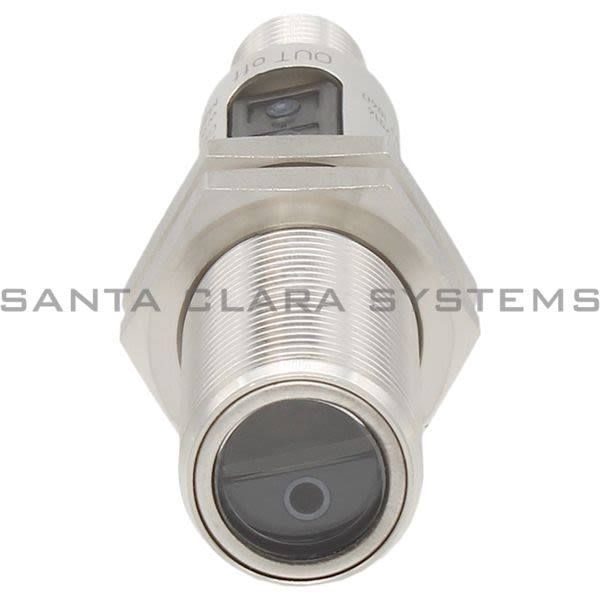

  • Efector OGP701 Photoelectric Sensor | Ogplfpkg/US100 Product Image
  • Efector OGP701 Photoelectric Sensor | Ogplfpkg/US100 Product Image
  • Efector OGP701 Barcode

OGP701

Product Summary:

  • Electrical Design: Pnp
  • Output Function: Light-On/Dark-On Mode; (Programmable)
  • Function Principle: Retro-Reflective Sensor
  • Operating Voltage [V]: 10...36 Dc
  • Current Consumption [Ma]: 15
Get a Quote

Current response time:

16 Minutes 9 Seconds
  • Description: Photoelectric Sensor | Ogplfpkg/US100
  • Electrical Design: Pnp
  • Output Function: Light-On/Dark-On Mode; (Programmable)
  • Material: Housing: Stainless Steel (1.4404 / 316L); Operator Interface: Pa; Sealing: Epdm; Pushbuttons: Tpu (Urethane)
  • Function Principle: Retro-Reflective Sensor
  • Operating Voltage [V]: 10...36 Dc
  • Current Consumption [Ma]: 15
  • Protection Class: Ii
  • Reverse Polarity Protection: Yes
  • Type Of Light: Red Light
  • Wave Length [Nm]: 655
  • Typ. Lifetime [H]: 50000
  • Max. Voltage Drop Switching Output Dc [V]: 2.5
  • Permanent Current Rating Of Switching Output Dc [Ma]: 200
  • Switching Frequency Dc [Hz]: 2000
  • Short-Circuit Protection: Yes
  • Type Of Short-Circuit Protection: Yes (Non-Latching)
  • Overload Protection: Yes
  • Range Referred To Prismatic Reflector [M]: 0.2...2; (Prismatic Reflector 80 E20005)
  • Factory Setting: Dark-On Mode
  • Range Adjustable: Yes
  • Diameter Of The Smallest Detectable Object [Mm]: 1.5; (1 M; 2 M: 2)
  • Max. Light Spot Diameter [Mm]: 5
  • Light Spot Dimensions Refer To: At Maximum Range
  • Polarization Filter Available: Yes
  • Ambient Temperature [C]: -10...60
  • Protection: Ip 65; Ip 67
  • Emc: En 60947-5-2
  • Laser Protection Class: 1; (Iec 60825-1 : 2007; Complies With 21 Cfr 1040 Except For Deviations Pursuant To Laser Notice No. 50, Dated June 2007.)
  • Housing: Threaded Type
  • Dimensions [Mm]: M18 X 1 / L = 72
  • Thread Designation: M18 X 1
  • Lens Material: Pmma
  • Display: Switching Status 1 X Led, Yellow
  • Accessories (Supplied): Lock Nuts: 2 X
  • Connection: Connector: 1 X M12
  • Excess Gain Graph: X: Abstand [Mm] Y: Funktionsreservefaktor
  • Alternate Manufacturer Name: IFM
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on OGP701 . Santa Clara Systems carries 2,078 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
