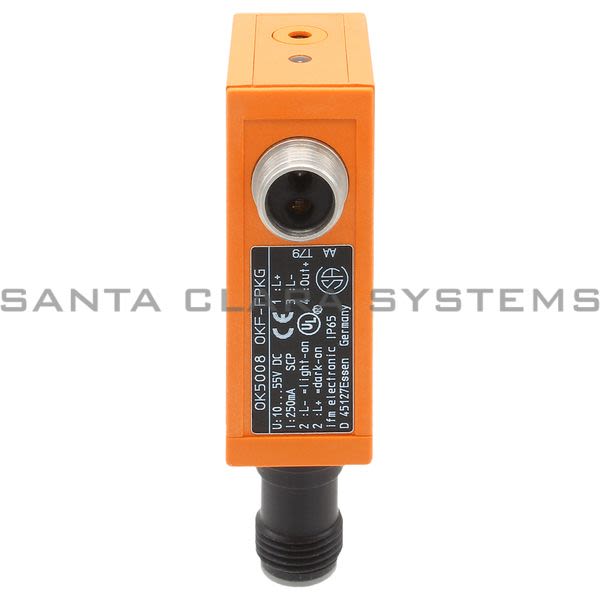

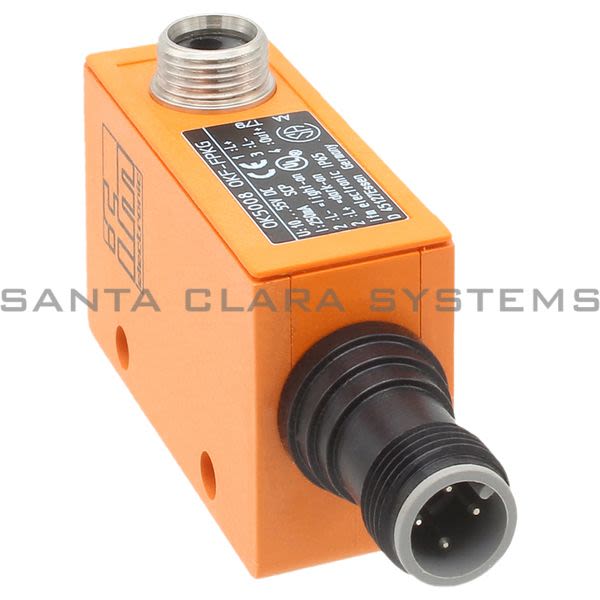

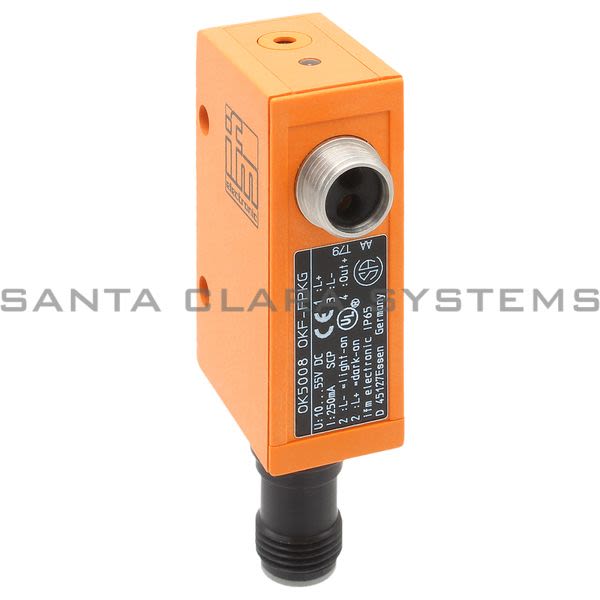

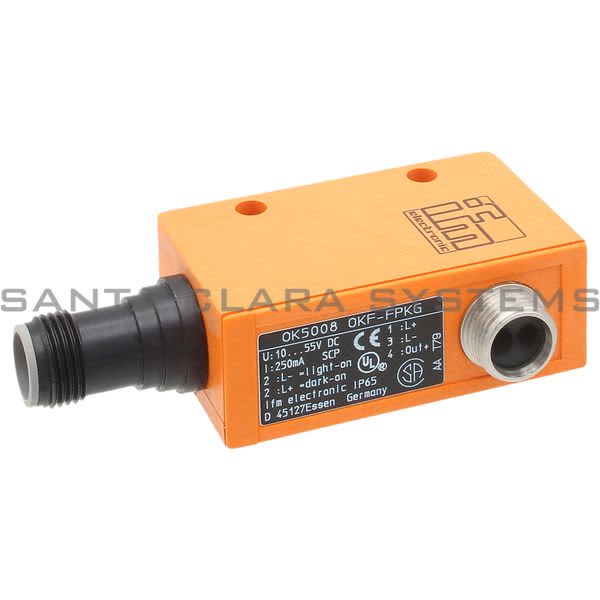

Efector OK5008 Fiber-Optic Amplifier | Okf-FPKG/US-100-DPF Product Image

OK5008

Efector - Fiber-Optic Amplifier | Okf-FPKG/US-100-DPF

Product Summary:

Electrical Design: Pnp
Output Function: Light-On/Dark-On Mode; (Programmable)
Material: Ppo Modified
Operating Voltage [V]: 10...36 Dc
Current Consumption [Ma]: 30; ((24 V))

Current response time:

11 Minutes 12 Seconds

Description: Fiber-Optic Amplifier | Okf-FPKG/US-100-DPF
Electrical Design: Pnp
Output Function: Light-On/Dark-On Mode; (Programmable)
Material: Ppo Modified
Operating Voltage [V]: 10...36 Dc
Current Consumption [Ma]: 30; ((24 V))
Protection Class: Iii
Reverse Polarity Protection: Yes
Type Of Light: Red Light
Wave Length [Nm]: 660
Max. Voltage Drop Switching Output Dc [V]: 2.5
Permanent Current Rating Of Switching Output Dc [Ma]: 250
Switching Frequency Dc [Hz]: 120
Short-Circuit Protection: Yes
Type Of Short-Circuit Protection: Yes (Non-Latching)

Overload Protection: Yes
Range [M]: 0...0.12; (Through-Beam Sensor)
Range [Mm]: 0...40; (Diffuse Reflection Sensor)
Range Adjustable: Yes
Ambient Temperature [C]: -25...60
Protection: Ip 65
Emc: En 60947-5-2 En 55011 Class B
Housing: Rectangular
Dimensions [Mm]: 50 X 19 X 35
Lens Alignment: Side Sensing
Display: Switching Status 1 X Led, Yellow
Accessories (Supplied): Screwdrivers Screws: 2 X X M4 X 25 Washers: 2 X Spring Washers: 2 X Nuts: 2 X
Connection: Connector: 1 X M12
Alternate Manufacturer Name: IFM
