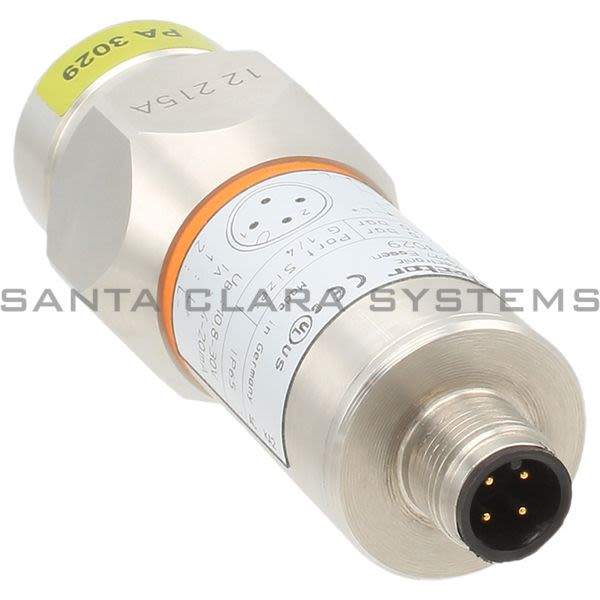

• Efector PA3029 Pressure Sensor | PA-0-1-RBR14-A-ZVG/US/ /V Product Image

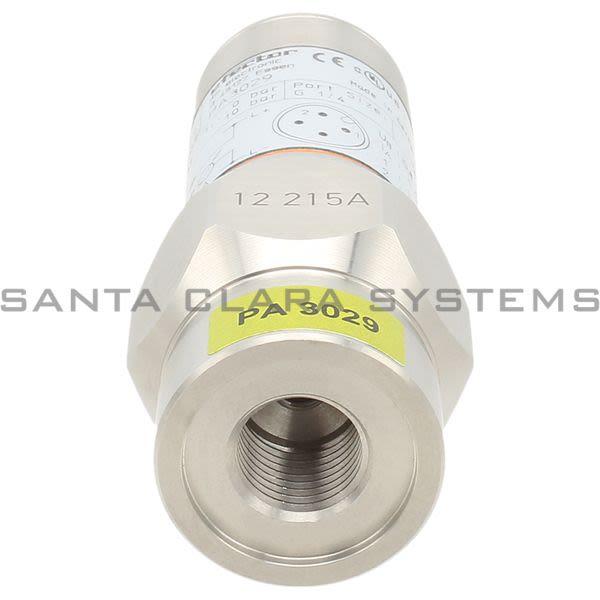

  • Efector PA3029 Pressure Sensor | PA-0-1-RBR14-A-ZVG/US/ /V Product Image

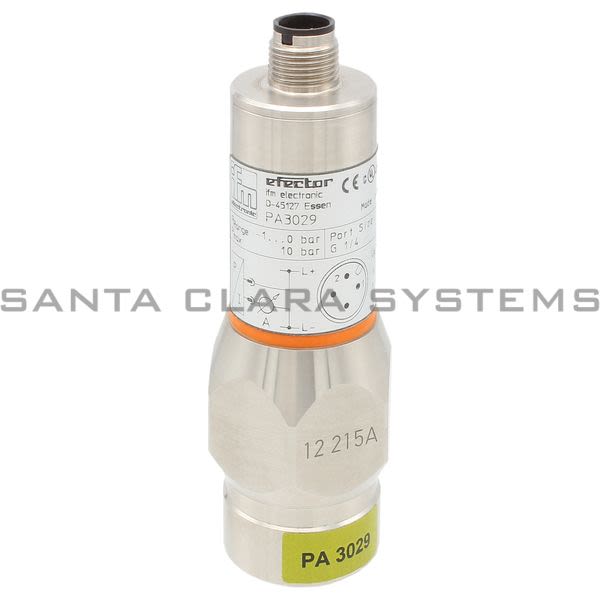

  • Efector PA3029 Pressure Sensor | PA-0-1-RBR14-A-ZVG/US/ /V Product Image

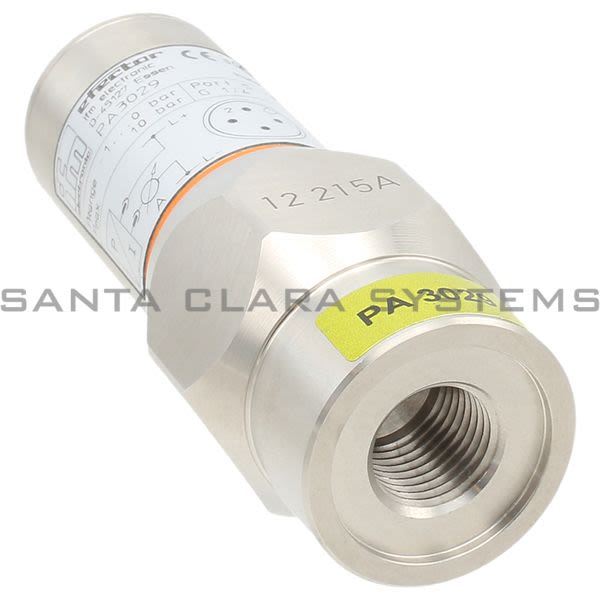

  • Efector PA3029 Pressure Sensor | PA-0-1-RBR14-A-ZVG/US/ /V Product Image
  • Efector PA3029 Barcode

PA3029

Product Summary:

  • Material: Stainless Steel (1.4404 / 316L); Fkm; Pa; Epdm/X
  • Media: Liquids And Gases
  • Medium Temperature [C]: -25...90; (On Request: -40...90 C)
  • Pressure Rating [Bar]: 10
  • Min. Bursting Pressure [Bar]: 30
Get a Quote

Current response time:

By 5AM PT on Tuesday
  • Description: Pressure Sensor | PA-0-1-RBR14-A-ZVG/US/ /V
  • Material: Stainless Steel (1.4404 / 316L); Fkm; Pa; Epdm/X
  • Media: Liquids And Gases
  • Medium Temperature [C]: -25...90; (On Request: -40...90 C)
  • Pressure Rating [Bar]: 10
  • Min. Bursting Pressure [Bar]: 30
  • Type Of Pressure: Relative Pressure
  • Operating Voltage [V]: 9.6...32 Dc
  • Min. Insulation Resistance [M?]: 100; (500 V Dc)
  • Protection Class: Iii
  • Reverse Polarity Protection: Yes
  • Number Of Inputs And Outputs: Number Of Analog Outputs: 1
  • Total Number Of Outputs: 1
  • Output Signal: Analog Signal
  • Number Of Analog Outputs: 1
  • Analog Current Output [Ma]: 4...20
  • Max. Load [?]: 720; (Ub = 24 V; (Ub - 9,6 V) / 20 Ma)
  • Overload Protection: Yes
  • Measuring Range [Bar]: -1...0
  • Repeatability [% Of The Span]: < 0,1; (With Temperature Fluctuations < 10 K)
  • Characteristics Deviation [% Of The Span]: < 0,25 (Bfsl) / < 0,5 (Ls); (Bfsl = Best Fit Straight Line; Ls = Limit Value Setting)
  • Long-Term Stability [% Of The Span]: < 0,05; (Per 6 Months)
  • Temperature Coefficient Zero Point [% Of The Span / 10 K]: 0,1; (0...80 C)
  • Temperature Coefficient Span [% Of The Span / 10 K]: 0,2; (0...80 C)
  • Step Response Time Analogue Output [Ms]: 3
  • Ambient Temperature [C]: -25...80
  • Storage Temperature [C]: -40...100
  • Protection: Ip 65
  • Emc: En 61000-4-2 Esd 4 Kv Cd / 8 Kv Ad En 61000-4-3 Hf Radiated 30 V/M En 61000-4-4 Burst 2 Kv En 61000-4-6 Hf Conducted 10 V Radiation Of Interference According To The Automotive Directive 2004/104/Ec Cispr 25 Noise Immunity According To The Automotive Directive 2004/104/Ec Iso 11452-2 Hf Radiated 100 V/M Iso 7637-2 Pulse Severity Level 4
  • Shock Resistance: Din En 60068-2-27 50 G (11 Ms) Din En 61373 Category 3
  • Vibration Resistance: Din En 60068-2-6 20 G (10...2000 Hz) Din En 61373 Category 2
  • Railway Applications: Din En 50155 / Iec 60571 Klasse T3, C1, S1
  • Materials (Wetted Parts): Stainless Steel (1.4305 / 303); Ceramics; Fkm
  • Min. Pressure Cycles: 100 Million
  • Process Connection: Threaded Connection G 1/4 Internal Thread
  • Connection: Connector: 1 X M12; Contacts: Gold-Plated
  • Alternate Manufacturer Name: IFM
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on PA3029 . Santa Clara Systems carries 2,078 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
