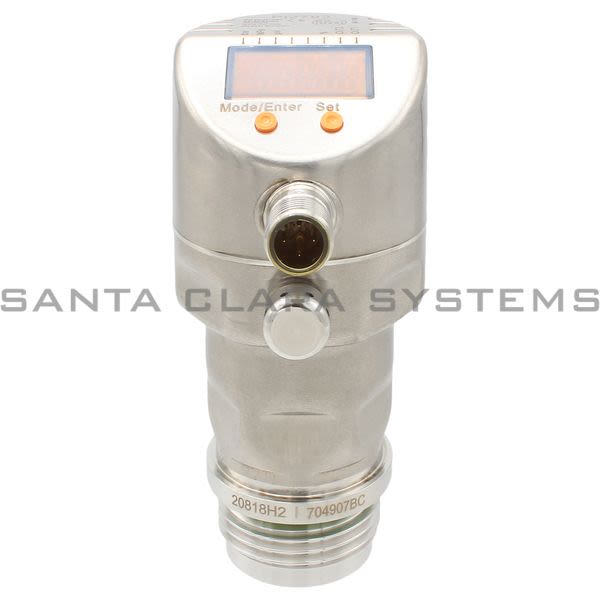

• Efector PI2793 Combined Pressure Sensor | PI-025-REA01-MFRKG/US/ /P Product Image

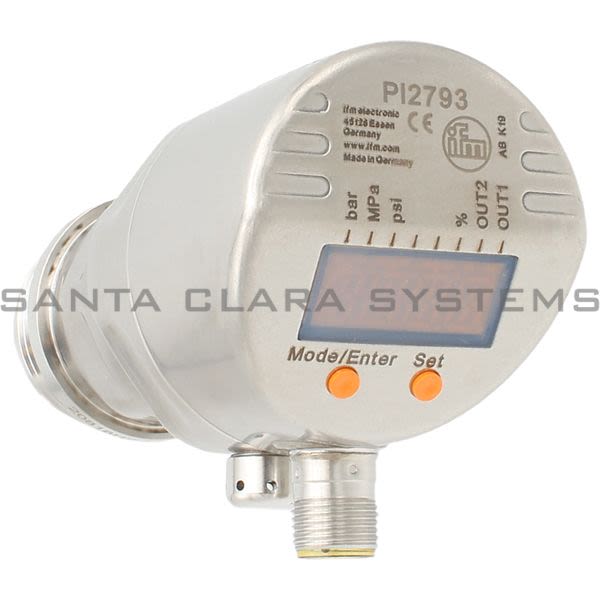

  • Efector PI2793 Combined Pressure Sensor | PI-025-REA01-MFRKG/US/ /P Product Image

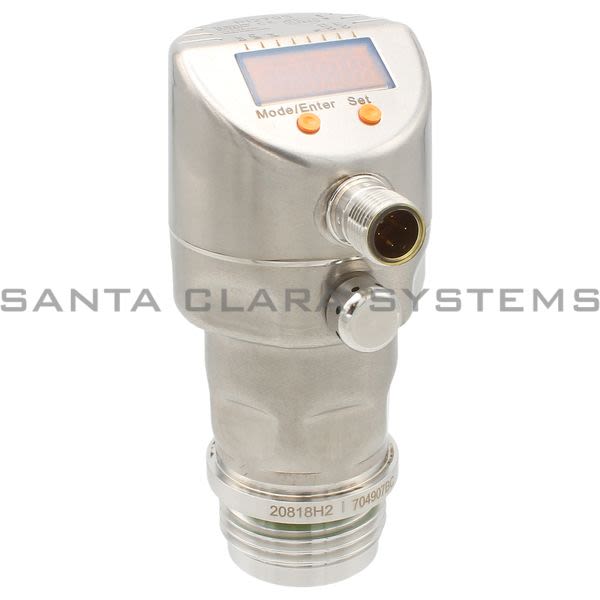

  • Efector PI2793 Combined Pressure Sensor | PI-025-REA01-MFRKG/US/ /P Product Image

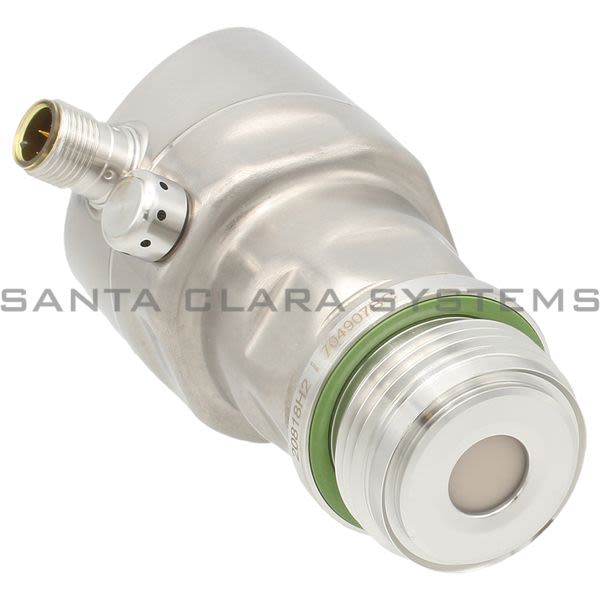

  • Efector PI2793 Combined Pressure Sensor | PI-025-REA01-MFRKG/US/ /P Product Image
  • Efector PI2793 Barcode

PI2793

Product Summary:

  • Electrical Design: Pnp/Npn
  • Output Function: Normally Open / Closed; (Configurable)
  • Material: Stainless Steel (1.4404 / 316L); Fkm; Ptfe; Pbt; Pei; Pfa
  • Media: Viscous Media And Liquids With Suspended Particles; Liquids And Gases
  • Medium Temperature [C]: -25...125; (145 Max. 1H)
Get a Quote

Current response time:

9 Minutes 12 Seconds
  • Description: Combined Pressure Sensor | PI-025-REA01-MFRKG/US/ /P
  • Electrical Design: Pnp/Npn
  • Output Function: Normally Open / Closed; (Configurable)
  • Material: Stainless Steel (1.4404 / 316L); Fkm; Ptfe; Pbt; Pei; Pfa
  • Media: Viscous Media And Liquids With Suspended Particles; Liquids And Gases
  • Medium Temperature [C]: -25...125; (145 Max. 1H)
  • Pressure Rating: 100 Bar 1450 Psi 10 Mpa
  • Min. Bursting Pressure: 350 Bar 5070 Psi 35 Mpa
  • Type Of Pressure: Relative Pressure
  • No Dead Space: Yes
  • Mawp (For Applications According To Crn) [Bar]: 60
  • Min. Insulation Resistance [M?]: 100; (500 V Dc)
  • Protection Class: Iii
  • Reverse Polarity Protection: Yes
  • Integrated Watchdog: Yes
  • Operating Voltage [V]: 18...32 Dc
  • Current Consumption [Ma]: < 45
  • Power-On Delay Time [S]: 0.5
  • Number Of Inputs And Outputs: Number Of Digital Outputs: 2; Number Of Analog Outputs: 1
  • Total Number Of Outputs: 2
  • Output Signal: Switching Signal; Analog Signal; Io-Link; (Configurable)
  • Number Of Digital Outputs: 2
  • Number Of Analog Outputs: 1
  • Analog Current Output [Ma]: 4...20, Invertible; (Scalable)
  • Short-Circuit Protection: Yes
  • Type Of Short-Circuit Protection: Yes (Non-Latching)
  • Overload Protection: Yes
  • Max. Load [?]: (Ub - 10 V) / 20 Ma
  • Max. Voltage Drop Switching Output Dc [V]: 2
  • Permanent Current Rating Of Switching Output Dc [Ma]: 250
  • Switching Frequency Dc [Hz]: 125
  • Measuring Range: -1...25 Bar -14.4...362.7 Psi -0.1...2.5 Mpa
  • Set Point Sp: -0.96...25 Bar -13.8...362.7 Psi -0.096...2.5 Mpa
  • Reset Point Rp: -1...24.96 Bar -14.4...362.1 Psi -0.1...2.496 Mpa
  • Analog Start Point: -1...18.74 Bar -14.4...271.8 Psi -0.1...1.874 Mpa
  • Analog End Point: 5.24...25 Bar 76.2...362.7 Psi 0.524...2.5 Mpa
  • In Steps Of: 0.02 Bar 0.3 Psi 0.002 Mpa
  • Factory Setting: Sp1 = 6.24 Bar Rp1 = 5.74 Bar Sp2 = 18.74 Bar Rp2 = 18.24 Bar Asp = 0.00 Bar Aep = 25.00 Bar
  • Switch Point Accuracy [% Of The Span]: < 0,2; (Turn Down 1:1)
  • Repeatability [% Of The Span]: < 0,1; (With Temperature Fluctuations < 10 K; Turn Down 1:1)
  • Characteristics Deviation [% Of The Span]: < 0,2; (Turn Down 1:1 Linearity, Incl. Hysteresis And Repeatability Limit Value Setting To Din 16086)
  • Linearity Deviation [% Of The Span]: < 0,15; (Turn Down 1:1)
  • Hysteresis Deviation [% Of The Span]: < 0,15; (Turn Down 1:1)
  • Long-Term Stability [% Of The Span]: < 0,1; (Turn Down 1:1; Per Year)
  • Temperature Coefficient Zero Point [% Of The Span / 10 K]: < 0,05; (0...70 C)
  • Temperature Coefficient Span [% Of The Span / 10 K]: < 0,15; (0...70 C)
  • Damping For The Switching Output Dap [S]: 0...30
  • Damping For The Analog Output Daa [S]: 0.01...99.99
  • Step Response Time Analogue Output [Ms]: 7
  • Min. Response Time Of Switching Output (Dap) [Ms]: 3
  • Communication Interface: Io-Link
  • Transmission Type: Com2 (38,4 Kbaud)
  • Io-Link Revision: 1
  • Io-Link Device Id: 156 D / 00 00 9C H
  • Profiles: No Profile
  • Sio Mode: Yes
  • Required Master Port Class: A
  • Process Data Analogue: 1
  • Process Data Binary: 2
  • Min. Process Cycle Time [Ms]: 2.3
  • Ambient Temperature [C]: -25...80
  • Storage Temperature [C]: -40...100
  • Protection: Ip 67; Ip 68; Ip 69K
  • Emc: En 61000-4-2 Esd 4 Kv Cd / 8 Kv Ad En 61000-4-3 Hf Radiated 10 V/M En 61000-4-4 Burst 2 Kv En 61000-4-5 Surge 0,5/1 Kv En 61000-4-6 Hf Conducted 10 V
  • Shock Resistance: Din Iec 68-2-27 50 G (11 Ms)
  • Vibration Resistance: Din Iec 68-2-6 20 G (10...2000 Hz)
  • Materials (Wetted Parts): Ceramics (99.9 % Al2O3); Ptfe; Stainless Steel (1.4435 / 316L); Surface Characteristics: Ra < 0,4 / Rz 4
  • Min. Pressure Cycles: 100 Million
  • Process Connection: Threaded Connection G 1 External Thread Aseptoflex Vario
  • Display: Display Unit Led, Green Switching Status Led, Yellow Function Display Alphanumeric Display, 4-Digit Measured Values Alphanumeric Display, 4-Digit
  • Display Unit: Bar; Psi; Mpa; % Of The Span
  • Connection: Connector: 1 X M12; Contacts: Gold-Plated
  • Alternate Manufacturer Name: IFM
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on PI2793 . Santa Clara Systems carries 2,078 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
