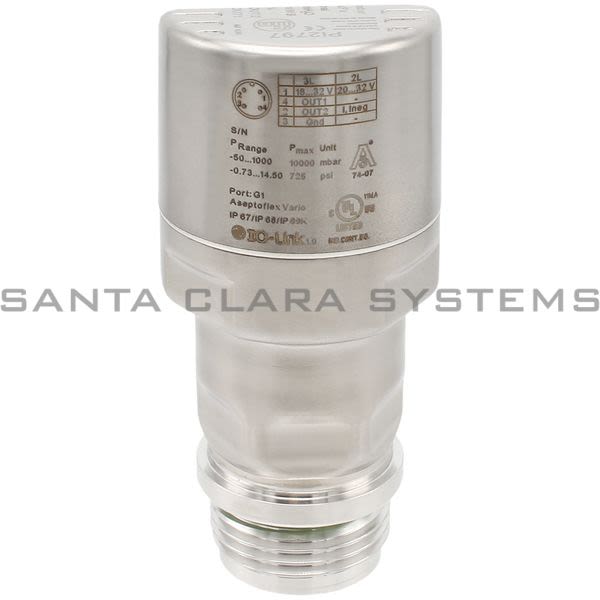

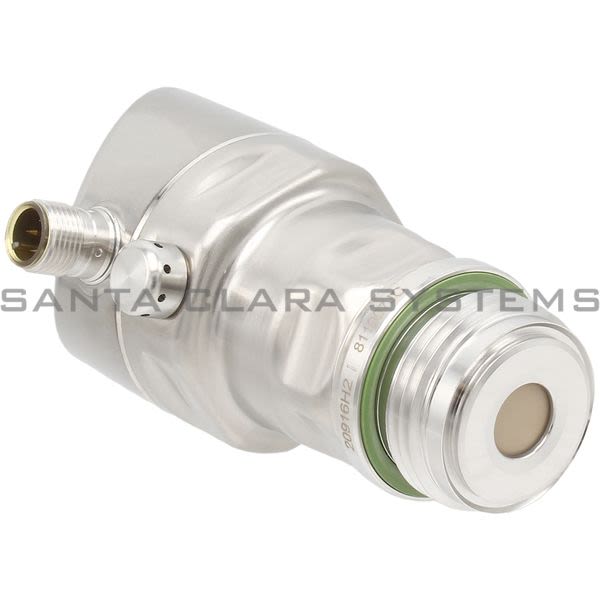

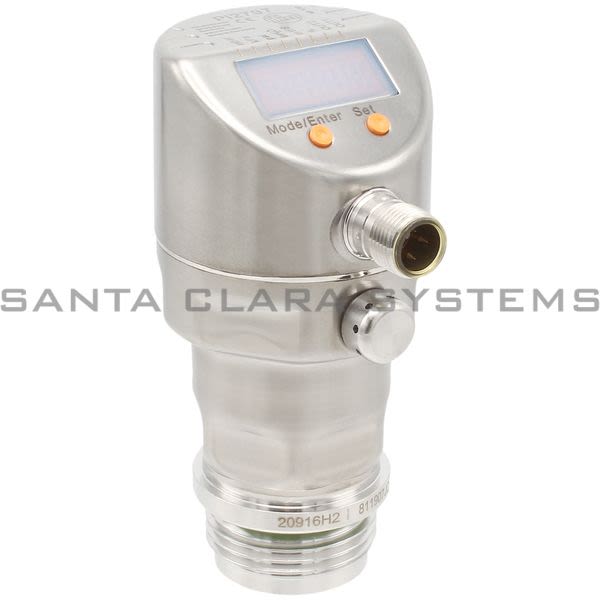

Efector - Combined Pressure Sensor | PI-001BREA01-MFRKG/US/ /P

Current response time:

By 5AM PT on Thursday

Emergency?

Description: Combined Pressure Sensor | PI-001BREA01-MFRKG/US/ /P
Electrical Design: Pnp/Npn
Output Function: Normally Open / Closed; (Configurable)
Material: Stainless Steel (1.4404 / 316L); Fkm; Ptfe; Pbt; Pei; Pfa
Media: Viscous Media And Liquids With Suspended Particles; Liquids And Gases
Medium Temperature [C]: -25...125; (145 Max. 1H)
Pressure Rating: 10000 Mbar 145 Psi
Min. Bursting Pressure: 30000 Mbar 435 Psi
Type Of Pressure: Relative Pressure
No Dead Space: Yes
Mawp (For Applications According To Crn) [Bar]: 10
Min. Insulation Resistance [M?]: 100; (500 V Dc)
Protection Class: Iii
Reverse Polarity Protection: Yes
Integrated Watchdog: Yes
Operating Voltage [V]: 18...32 Dc
Current Consumption [Ma]: < 45
Power-On Delay Time [S]: 0.5
Number Of Inputs And Outputs: Number Of Digital Outputs: 2; Number Of Analog Outputs: 1
Total Number Of Outputs: 2
Output Signal: Switching Signal; Analog Signal; Io-Link; (Configurable)
Number Of Digital Outputs: 2
Number Of Analog Outputs: 1
Analog Current Output [Ma]: 4...20, Invertible; (Scalable)
Short-Circuit Protection: Yes
Type Of Short-Circuit Protection: Yes (Non-Latching)
Overload Protection: Yes
Max. Load [?]: (Ub - 10 V) / 20 Ma
Max. Voltage Drop Switching Output Dc [V]: 2
Permanent Current Rating Of Switching Output Dc [Ma]: 250
Switching Frequency Dc [Hz]: 125
Measuring Range: -50...1000 Mbar -0.73...14.5 Psi
Set Point Sp: -48...1000 Mbar -0.7...14.5 Psi
Reset Point Rp: -50...998 Mbar -0.73...14.47 Psi
Analog Start Point: -50...750 Mbar -0.73...10.88 Psi
Analog End Point: 200...1000 Mbar 2.9...14.5 Psi
In Steps Of: 1 Mbar 0.01 Psi

Factory Setting: Sp1 = 250 Mbar Rp1 = 230 Mbar Sp2 = 750 Mbar Rp2 = 730 Mbar Asp = 0 Mbar Aep = 1000 Mbar
Switch Point Accuracy [% Of The Span]: < 0,2; (Turn Down 1:1)
Repeatability [% Of The Span]: < 0,1; (With Temperature Fluctuations < 10 K; Turn Down 1:1)
Characteristics Deviation [% Of The Span]: < 0,2; (Turn Down 1:1 Linearity, Incl. Hysteresis And Repeatability Limit Value Setting To Din 16086)
Linearity Deviation [% Of The Span]: < 0,15; (Turn Down 1:1)
Hysteresis Deviation [% Of The Span]: < 0,15; (Turn Down 1:1)
Long-Term Stability [% Of The Span]: < 0,1; (Turn Down 1:1; Per Year)
Temperature Coefficient Zero Point [% Of The Span / 10 K]: < 0,05; (0...70 C)
Temperature Coefficient Span [% Of The Span / 10 K]: < 0,15; (0...70 C)
Damping For The Switching Output Dap [S]: 0...30
Damping For The Analog Output Daa [S]: 0.01...99.99
Step Response Time Analogue Output [Ms]: 7
Min. Response Time Of Switching Output (Dap) [Ms]: 3
Communication Interface: Io-Link
Transmission Type: Com2 (38,4 Kbaud)
Io-Link Revision: 1
Io-Link Device Id: 256 D / 00 01 00 H
Profiles: No Profile
Sio Mode: Yes
Required Master Port Class: A
Process Data Analogue: 1
Process Data Binary: 2
Min. Process Cycle Time [Ms]: 2.3
Ambient Temperature [C]: -25...80
Storage Temperature [C]: -40...100
Protection: Ip 67; Ip 68; Ip 69K
Emc: En 61000-4-2 Esd 4 Kv Cd / 8 Kv Ad En 61000-4-3 Hf Radiated 10 V/M En 61000-4-4 Burst 2 Kv En 61000-4-5 Surge 0,5/1 Kv En 61000-4-6 Hf Conducted 10 V
Shock Resistance: Din Iec 68-2-27 50 G (11 Ms)
Vibration Resistance: Din Iec 68-2-6 20 G (10...2000 Hz)
Materials (Wetted Parts): Ceramics (99.9 % Al2O3); Ptfe; Stainless Steel (1.4435 / 316L); Surface Characteristics: Ra < 0,4 / Rz 4
Min. Pressure Cycles: 100 Million
Process Connection: Threaded Connection G 1 External Thread Aseptoflex Vario
Display: Display Unit Led, Green Switching Status Led, Yellow Function Display Alphanumeric Display, 4-Digit Measured Values Alphanumeric Display, 4-Digit
Display Unit: Mbar; Kpa; Psi; Inh2O; Mws; % Of The Span
Connection: Connector: 1 X M12; Contacts: Gold-Plated
Alternate Manufacturer Name: IFM
