PN2009

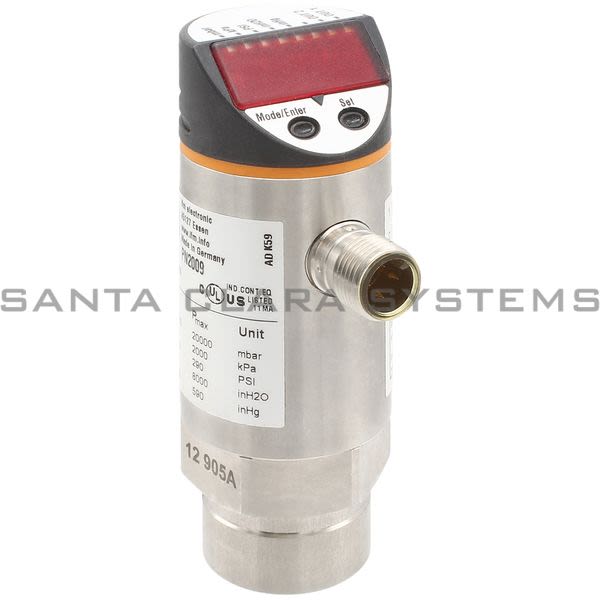

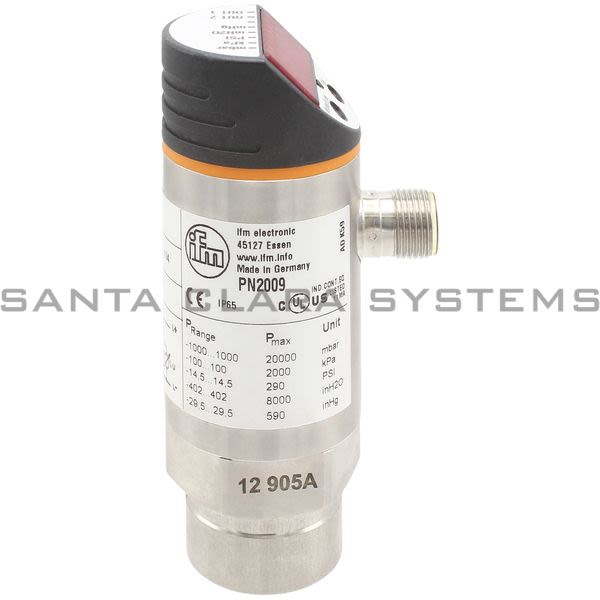

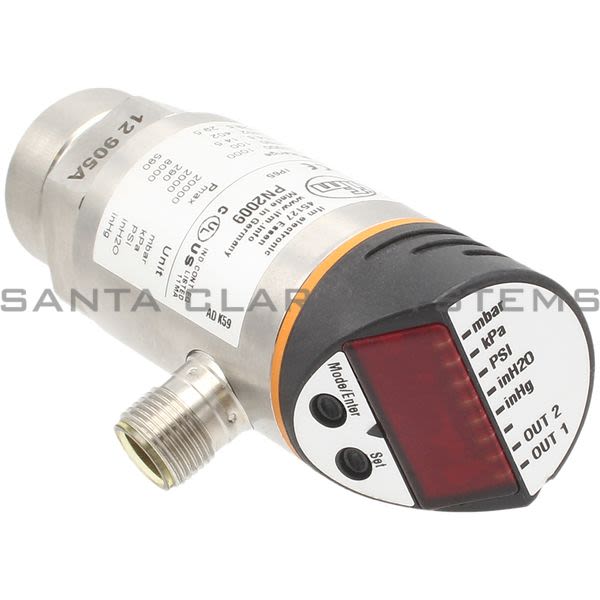

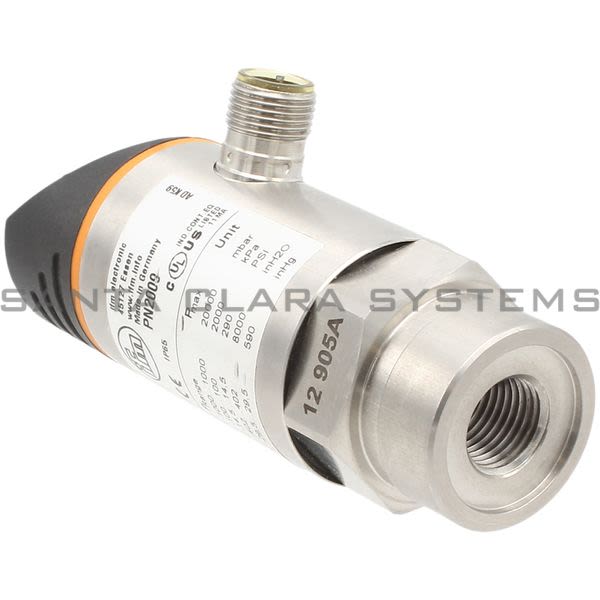

Efector - Pressure Sensor | PN-1-1BRBR14-MFRKG/US/ /V

Product Summary:

Electrical Design: Pnp/Npn
Output Function: Normally Open / Closed; (Configurable)
Media: Liquids And Gases
Medium Temperature [°C]: -25...80
Pressure Rating: 20000 Mbar 290 Psi

Current response time:

By 5AM PT on Wednesday

Emergency?

Description: Pressure Sensor | PN-1-1BRBR14-MFRKG/US/ /V
Electrical Design: Pnp/Npn
Output Function: Normally Open / Closed; (Configurable)
Material: Stainless Steel (1.4301 / 304); Stainless Steel (1.4404 / 316L); Pc; Pbt; Pei; Fkm; Ptfe
Media: Liquids And Gases
Medium Temperature [°C]: -25...80
Pressure Rating: 20000 Mbar 290 Psi
Min. Bursting Pressure: 50000 Mbar 725 Psi
Type Of Pressure: Relative Pressure
Operating Voltage [V]: 18...32 Dc; (According To En 50178 Selv/Pelv)
Current Consumption [Ma]: < 35
Min. Insulation Resistance [M?]: 100; (500 V Dc)
Protection Class: Iii
Reverse Polarity Protection: Yes
Power-On Delay Time [S]: 0.3
Integrated Watchdog: Yes
Number Of Inputs And Outputs: Number Of Digital Outputs: 2; Number Of Analog Outputs: 1
Total Number Of Outputs: 2
Output Signal: Switching Signal; Analog Signal; Io-Link; (Configurable)
Number Of Digital Outputs: 2
Max. Voltage Drop Switching Output Dc [V]: 2
Permanent Current Rating Of Switching Output Dc [Ma]: 250
Switching Frequency Dc [Hz]: < 500
Number Of Analog Outputs: 1
Analog Current Output [Ma]: 4...20; (Scalable 1:4)
Max. Load [?]: (Ub - 10 V) / 20 Ma
Analog Voltage Output [V]: 0...10; (Scalable 1:4)
Min. Load Resistance [?]: 2000
Short-Circuit Protection: Yes
Type Of Short-Circuit Protection: Yes (Non-Latching)
Overload Protection: Yes
Measuring Range: -1000...1000 Mbar -14.5...14.5 Psi
Set Point Sp: -988...1000 Mbar -14.3...14.5 Psi
Reset Point Rp: -996...992 Mbar -14.4...14.4 Psi
Analog Start Point: -996...500 Mbar -14.4...7.3 Psi
Analog End Point: -500...1000 Mbar -7.2...14.5 Psi
In Steps Of: 4 Mbar 0.1 Psi

Factory Setting: Sp1 = -500 Mbar Rp1 = -540 Mbar Sp2 = 500 Mbar Rp2 = 460 Mbar Asp = -996 Mbar Aep = 1000 Mbar
Switch Point Accuracy [% Of The Span]: < ± 0,4; (Turn Down 1:1)
Repeatability [% Of The Span]: < ± 0,1; (With Temperature Fluctuations < 10 K; Turn Down 1:1)
Characteristics Deviation [% Of The Span]: < ± 0,25 (Bfsl) / < ± 0,5 (Ls); (Turn Down 1:1; Bfsl = Best Fit Straight Line; Ls = Limit Value Setting)
Hysteresis Deviation [% Of The Span]: < ± 0,1; (Turn Down 1:1)
Long-Term Stability [% Of The Span]: < ± 0,1; (Turn Down 1:1; Per Year)
Temperature Coefficient Zero Point [% Of The Span / 10 K]: < ± 0,2; (-25...80 °C)
Temperature Coefficient Span [% Of The Span / 10 K]: < ± 0,2; (-25...80 °C)
Response Time [Ms]: < 1.5
Damping For The Switching Output Dap [S]: 0.01...4
Damping For The Analog Output Daa [S]: 0.01...4
Max. Response Time Analog Output [Ms]: 3
Parameter Setting Options: Hysteresis / Window; Normally Open / Closed; Switching Logic; Current/Voltage Output; Damping; Adaptation Of Displayed Values; Display Can Be Rotated And Switched Off; Display Unit; Zero Point; Span
Communication Interface: Io-Link
Transmission Type: Com2 (38,4 Kbaud)
Io-Link Revision: 1
Io-Link Device Id: 64 D / 00 00 40 H
Profiles: No Profile
Sio Mode: Yes
Required Master Port Class: A
Process Data Analogue: 1
Process Data Binary: 2
Min. Process Cycle Time [Ms]: 2.3
Ambient Temperature [°C]: -25...80
Storage Temperature [°C]: -40...100
Protection: Ip 65
Emc: En 61000-4-2 Esd 4 Kv Cd / 8 Kv Ad En 61000-4-3 Hf Radiated 10 V/M En 61000-4-4 Burst 2 Kv En 61000-4-5 Surge 0,5/1 Kv En 61000-4-6 Hf Conducted 10 V
Shock Resistance: Din Iec 68-2-27 50 G (11 Ms)
Vibration Resistance: Din Iec 68-2-6 20 G (10...2000 Hz)
Materials (Wetted Parts): Stainless Steel (1.4305 / 303); Ceramics; Fkm
Min. Pressure Cycles: 100 Million
Process Connection: Threaded Connection G 1/4 Internal Thread
Display: Display Unit 5 X Led, Green Switching Status 2 X Led, Yellow Function Display Alphanumeric Display, 4-Digit Measured Values Alphanumeric Display, 4-Digit
Display Unit: Mbar; Kpa; Psi; Inh2O; Inhg
Connection: Connector: 1 X M12; Contacts: Gold-Plated
Alternate Manufacturer Name: IFM
