PN5003

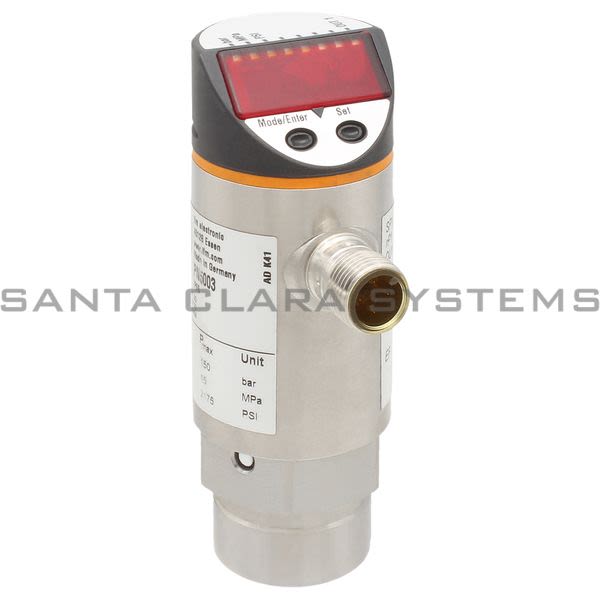

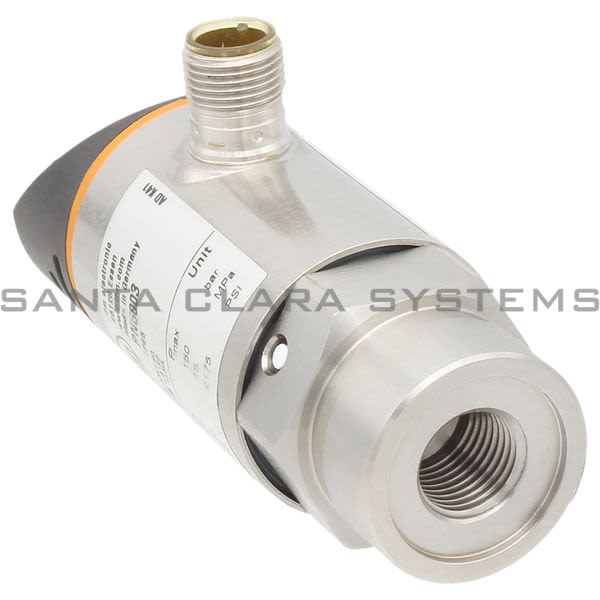

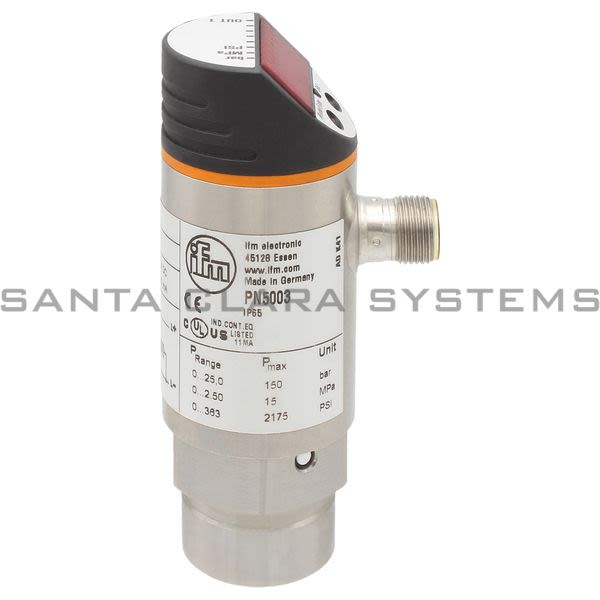

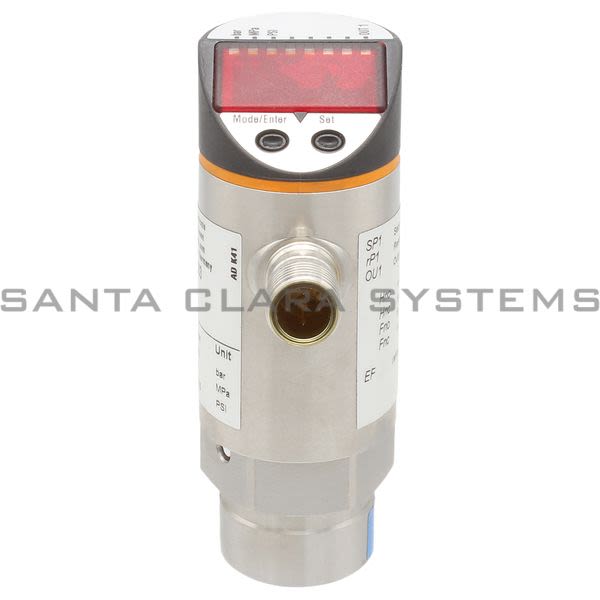

Efector - Pressure Monitor | PN-025-RBR14-HFPKG/US/ /V

Current response time:

16 Minutes 26 Seconds

Description: Pressure Monitor | PN-025-RBR14-HFPKG/US/ /V
Electrical Design: Pnp
Output Function: Normally Open / Closed; (Configurable)
Material: Stainless Steel (1.4301 / 304); Stainless Steel (1.4404 / 316L); Pc; Pbt; Pei; Fkm; Ptfe
Media: Liquids And Gases
Medium Temperature [C]: -25...80
Pressure Rating: 150 Bar 2175 Psi 15 Mpa
Min. Bursting Pressure: 350 Bar 5075 Psi 35 Mpa
Type Of Pressure: Relative Pressure
Operating Voltage [V]: 18...36 Dc; (According To En 50178 Selv/Pelv)
Current Consumption [Ma]: < 50
Min. Insulation Resistance [M?]: 100; (500 V Dc)
Protection Class: Iii
Reverse Polarity Protection: Yes
Overvoltage Protection: Yes; (< 40 V)
Power-On Delay Time [S]: 0.3
Integrated Watchdog: Yes
Number Of Inputs And Outputs: Number Of Digital Outputs: 1
Total Number Of Outputs: 1
Output Signal: Switching Signal
Number Of Digital Outputs: 1
Max. Voltage Drop Switching Output Dc [V]: 2
Permanent Current Rating Of Switching Output Dc [Ma]: 250
Switching Frequency Dc [Hz]: < 170
Short-Circuit Protection: Yes
Type Of Short-Circuit Protection: Yes (Non-Latching)

Measuring Range: 0...25 Bar 0...363 Psi 0...2.5 Mpa
Set Point Sp: 0.2...25 Bar 4...362 Psi 0.02...2.5 Mpa
Reset Point Rp: 0.1...24.9 Bar 2...360 Psi 0.01...2.49 Mpa
In Steps Of: 0.1 Bar 2 Psi 0.01 Mpa
Factory Setting: Sp1 = 6.3 Bar Rp1 = 5.8 Bar
Switch Point Accuracy [% Of The Span]: < 0,5
Repeatability [% Of The Span]: < 0,1; (With Temperature Fluctuations < 10 K)
Characteristics Deviation [% Of The Span]: < 0,25 (Bfsl) / < 0,5 (Ls); (Bfsl = Best Fit Straight Line; Ls = Limit Value Setting)
Hysteresis Deviation [% Of The Span]: < 0,25
Long-Term Stability [% Of The Span]: < 0,05; (Per 6 Months)
Temperature Coefficient Zero Point [% Of The Span / 10 K]: 0,2; (-20...80 C)
Temperature Coefficient Span [% Of The Span / 10 K]: 0,2; (-20...80 C)
Delay Time Programmable Ds, Dr [S]: 0; 0,2...50
Parameter Setting Options: Hysteresis / Window; Normally Open / Closed; Switch-On/Switch-Off Delay; Damping; Display Unit
Ambient Temperature [C]: -20...80
Storage Temperature [C]: -40...100
Protection: Ip 65
Emc: En 61000-4-2 Esd 4 Kv Cd / 8 Kv Ad En 61000-4-3 Hf Radiated 10 V/M En 61000-4-4 Burst 2 Kv En 61000-4-5 Surge 0,5/1 Kv En 61000-4-6 Hf Conducted 10 V
Shock Resistance: Din Iec 68-2-27 50 G (11 Ms)
Vibration Resistance: Din Iec 68-2-6 20 G (10...2000 Hz)
Materials (Wetted Parts): Stainless Steel (1.4305 / 303); Ceramics; Fkm
Min. Pressure Cycles: 100 Million
Process Connection: Threaded Connection G 1/4 Internal Thread
Display: Display Unit 3 X Led, Green Switching Status Led, Yellow Function Display Alphanumeric Display, 4-Digit Measured Values Alphanumeric Display, 4-Digit
Connection: Connector: 1 X M12; Contacts: Gold-Plated
Alternate Manufacturer Name: IFM
