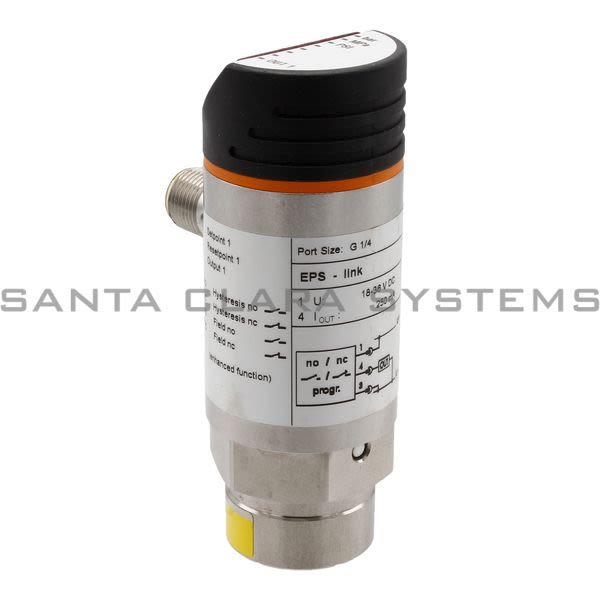

• Efector PN5004 Pressure Monitor | PN-010-RBR14-HFPKG/US/ /V Product Image

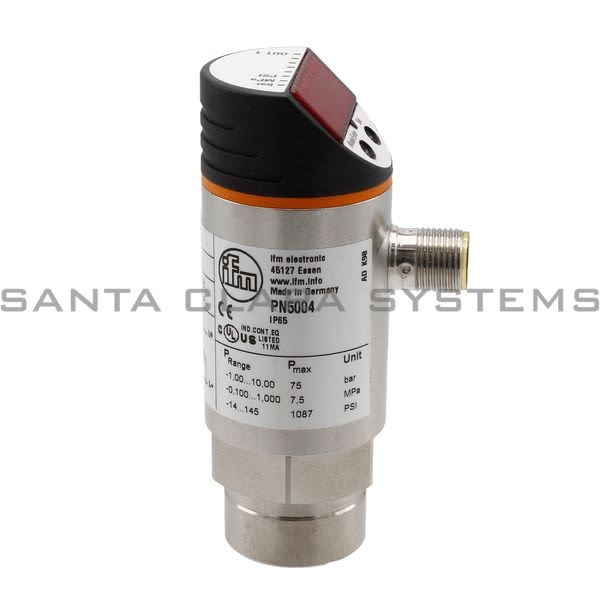

  • Efector PN5004 Pressure Monitor | PN-010-RBR14-HFPKG/US/ /V Product Image

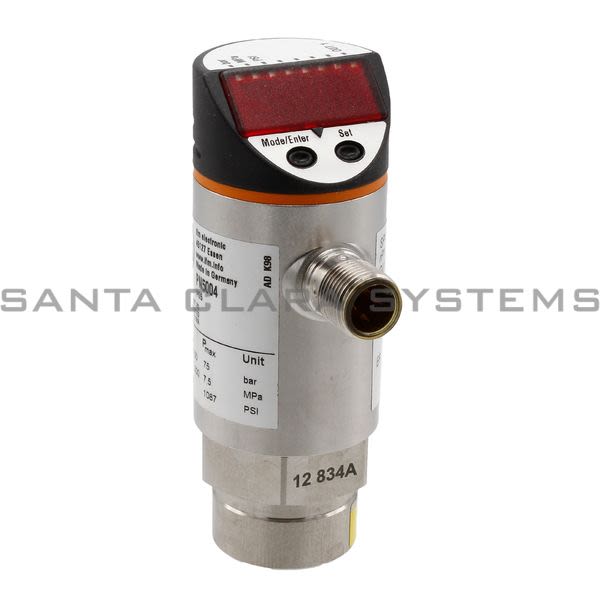

  • Efector PN5004 Pressure Monitor | PN-010-RBR14-HFPKG/US/ /V Product Image

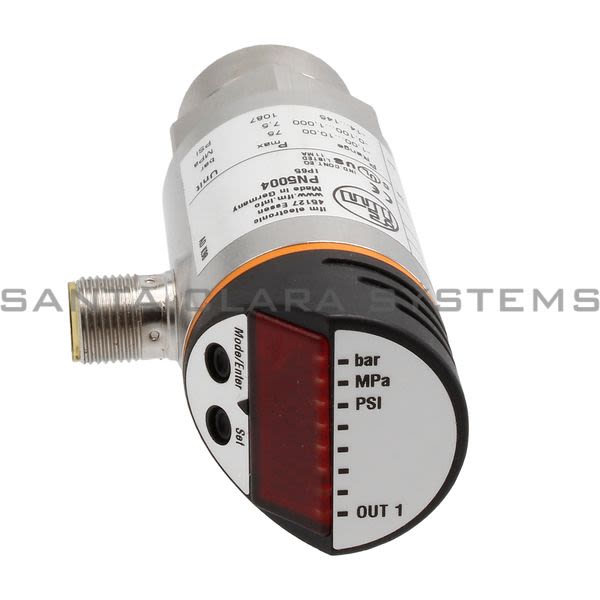

  • Efector PN5004 Pressure Monitor | PN-010-RBR14-HFPKG/US/ /V Product Image
  • Efector PN5004 Pressure Monitor | PN-010-RBR14-HFPKG/US/ /V Product Image
  • Efector PN5004 Barcode

PN5004

Product Summary:

  • ELECTRICAL DESIGN: PNP
  • OUTPUT FUNCTION: NORMALLY OPEN / CLOSED; (CONFIGURABLE)
  • Output: 1 switching output
  • Ambient Temperature [C]: -25 to 80 (UB < 32 V) / -25...60 (UB > 32 V)
  • Measuring Range: -1 to 10 bar, -14.5 to 145 psi, -0.1 to 1.0 MPa
Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: Pressure Monitor | PN-010-RBR14-HFPKG/US/ /V
  • ELECTRICAL DESIGN: PNP
  • OUTPUT FUNCTION: NORMALLY OPEN / CLOSED; (CONFIGURABLE)
  • Output: 1 switching output
  • MATERIAL: STAINLESS STEEL (1.4301 / 304); STAINLESS STEEL (1.4404 / 316L); PC; PBT; PEI; FKM; PTFE
  • Ambient Temperature [C]: -25 to 80 (UB < 32 V) / -25...60 (UB > 32 V)
  • Measuring Range: -1 to 10 bar, -14.5 to 145 psi, -0.1 to 1.0 MPa
  • Alternate Manufacturer Name: IFM
  • PROCESS CONNECTION: THREADED CONNECTION G 1/4 INTERNAL THREAD
  • SYSTEM: GOLD-PLATED CONTACTS
  • APPLICATION: FOR INDUSTRIAL APPLICATIONS
  • MEDIA: LIQUIDS AND GASES
  • MEDIUM TEMPERATURE [C]: -25...80
  • PRESSURE RATING: 75 BAR 1087 PSI 7.5 MPA
  • MIN. BURSTING PRESSURE: 150 BAR 2175 PSI 15 MPA
  • TYPE OF PRESSURE: RELATIVE PRESSURE
  • OPERATING VOLTAGE [V]: 18...36 DC; (ACCORDING TO EN 50178 SELV/PELV)
  • CURRENT CONSUMPTION [MA]: < 50
  • MIN. INSULATION RESISTANCE [M]: 100; (500 V DC)
  • PROTECTION CLASS: III
  • REVERSE POLARITY PROTECTION: YES
  • OVERVOLTAGE PROTECTION: YES; (< 40 V)
  • POWER-ON DELAY TIME [S]: 0.3
  • INTEGRATED WATCHDOG: YES
  • NUMBER OF INPUTS AND OUTPUTS: NUMBER OF DIGITAL OUTPUTS: 1
  • TOTAL NUMBER OF OUTPUTS: 1
  • OUTPUT SIGNAL: SWITCHING SIGNAL
  • NUMBER OF DIGITAL OUTPUTS: 1
  • MAX. VOLTAGE DROP SWITCHING OUTPUT DC [V]: 2
  • PERMANENT CURRENT RATING OF SWITCHING OUTPUT DC [MA]: 250
  • SWITCHING FREQUENCY DC [HZ]: < 170
  • SHORT-CIRCUIT PROTECTION: YES
  • TYPE OF SHORT-CIRCUIT PROTECTION: YES (NON-LATCHING)
  • SWITCH POINT ACCURACY [% OF THE SPAN]: < 0,5
  • REPEATABILITY [% OF THE SPAN]: < 0,1; (WITH TEMPERATURE FLUCTUATIONS < 10 K)
  • CHARACTERISTICS DEVIATION [% OF THE SPAN]: < 0,25 (BFSL) / < 0,5 (LS); (BFSL = BEST FIT STRAIGHT LINE; LS = LIMIT VALUE SETTING)
  • HYSTERESIS DEVIATION [% OF THE SPAN]: < 0,25
  • LONG-TERM STABILITY [% OF THE SPAN]: < 0,05; (PER 6 MONTHS)
  • TEMPERATURE COEFFICIENT ZERO POINT [% OF THE SPAN / 10 K]: 0,2; (-20...80 C)
  • TEMPERATURE COEFFICIENT SPAN [% OF THE SPAN / 10 K]: 0,2; (-20...80 C)
  • DELAY TIME PROGRAMMABLE DS, DR [S]: 0; 0,2...50
  • PARAMETER SETTING OPTIONS: HYSTERESIS / WINDOW; NORMALLY OPEN / CLOSED; SWITCH-ON/SWITCH-OFF DELAY; DAMPING; DISPLAY UNIT
  • STORAGE TEMPERATURE [C]: -40...100
  • PROTECTION: IP 65
  • EMC: EN 61000-4-2 ESD 4 KV CD / 8 KV AD EN 61000-4-3 HF RADIATED 10 V/M EN 61000-4-4 BURST 2 KV EN 61000-4-5 SURGE 0,5/1 KV EN 61000-4-6 HF CONDUCTED 10 V
  • SHOCK RESISTANCE: DIN IEC 68-2-27 50 G (11 MS)
  • VIBRATION RESISTANCE: DIN IEC 68-2-6 20 G (10...2000 HZ)
  • MTTF [YEARS]: 231
  • WEIGHT [G]: 258.6
  • MATERIALS (WETTED PARTS): STAINLESS STEEL (1.4305 / 303); CERAMICS; FKM
  • MIN. PRESSURE CYCLES: 100 MILLION
  • DISPLAY: DISPLAY UNIT 3 X LED, GREEN SWITCHING STATUS LED, YELLOW FUNCTION DISPLAY ALPHANUMERIC DISPLAY, 4-DIGIT MEASURED VALUES ALPHANUMERIC DISPLAY, 4-DIGIT
  • PACK QUANTITY: 1 PCS.
  • CONNECTION: CONNECTOR: 1 X M12; CONTACTS: GOLD-PLATED
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on PN5004 . Santa Clara Systems carries 2,078 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
