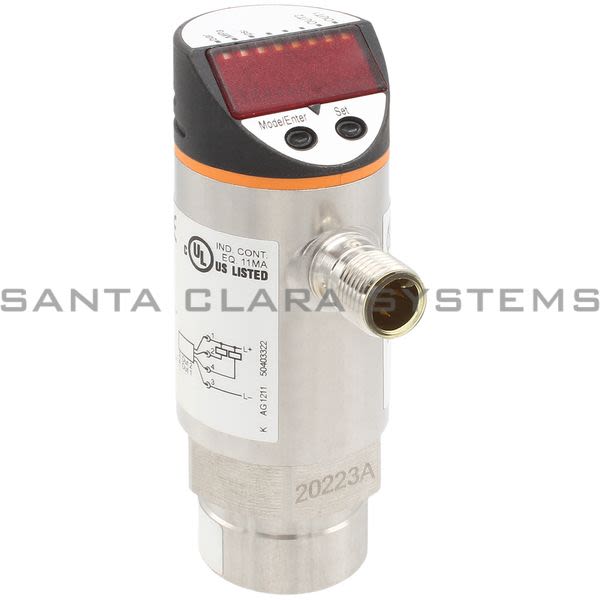

• Efector PN7001 Pressure Control Product Image

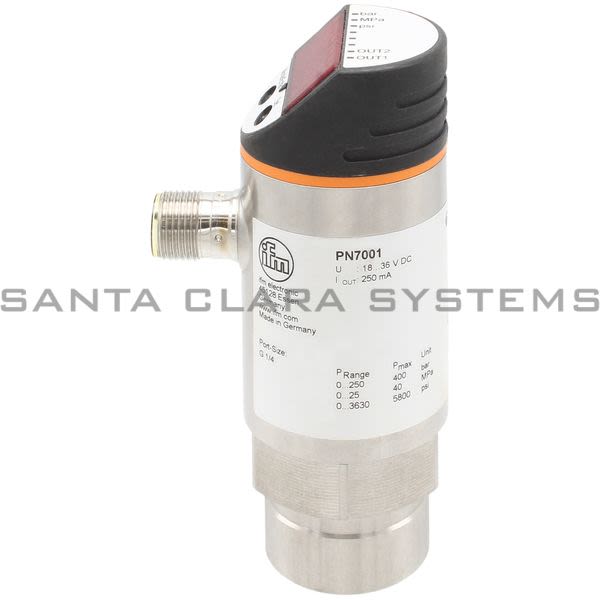

  • Efector PN7001 Pressure Control Product Image

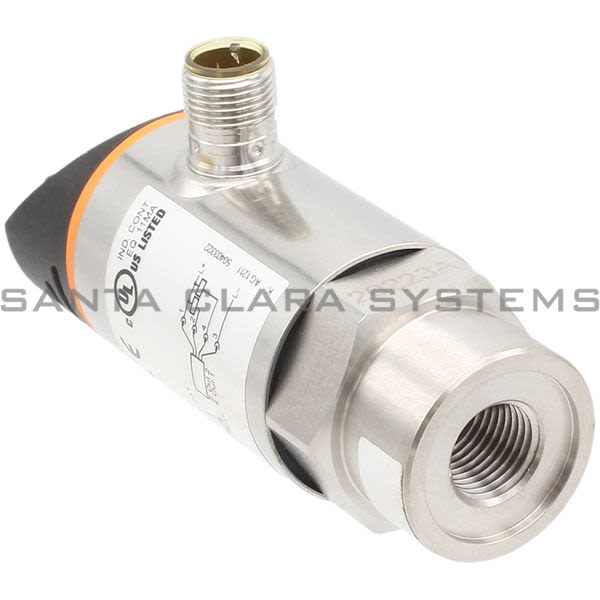

  • Efector PN7001 Pressure Control Product Image

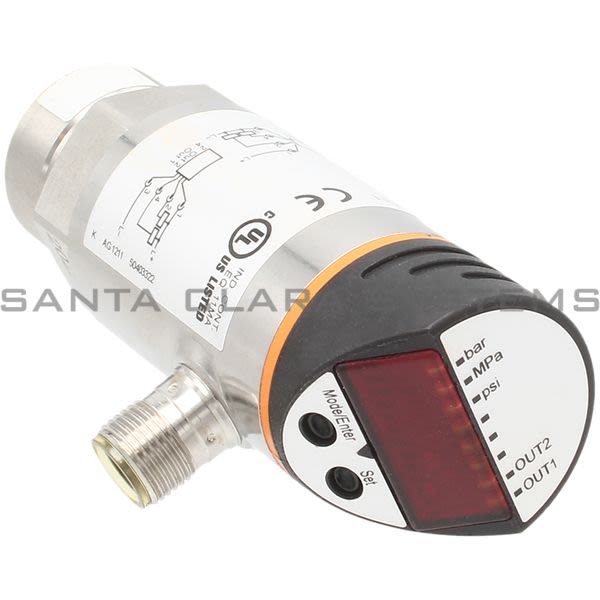

  • Efector PN7001 Pressure Control Product Image
  • Efector PN7001 Barcode

PN7001

Get a Quote

Current response time:

15 Minutes 9 Seconds
  • Description: Pressure Control
  • Electrical Design: Pnp/Npn
  • Output Function: Normally Open / Closed; (Configurable)
  • Material: Stainless Steel (1.4301 / 304); Stainless Steel (1.4404 / 316L); Pc; Pbt; Pei; Fkm
  • Media: Liquids And Gases
  • Conditionally Suitable For: Use In Gases At Pressures > 25 Bar Only On Request
  • Medium Temperature [C]: -25...80
  • Pressure Rating: 400 Bar 5800 Psi 40 Mpa
  • Min. Bursting Pressure: 850 Bar 12300 Psi 85 Mpa
  • Type Of Pressure: Relative Pressure
  • Operating Voltage [V]: 18...36 Dc; (According To En 50178 Selv/Pelv)
  • Current Consumption [Ma]: < 35
  • Min. Insulation Resistance [M?]: 100; (500 V Dc)
  • Protection Class: Iii
  • Reverse Polarity Protection: Yes
  • Overvoltage Protection: Yes; (< 40 V)
  • Power-On Delay Time [S]: 0.3
  • Integrated Watchdog: Yes
  • Number Of Inputs And Outputs: Number Of Digital Outputs: 2
  • Total Number Of Outputs: 2
  • Output Signal: Switching Signal; Io-Link; (Configurable)
  • Number Of Digital Outputs: 2
  • Max. Voltage Drop Switching Output Dc [V]: 2
  • Permanent Current Rating Of Switching Output Dc [Ma]: 250
  • Switching Frequency Dc [Hz]: < 170
  • Short-Circuit Protection: Yes
  • Type Of Short-Circuit Protection: Yes (Non-Latching)
  • Measuring Range: 0...250 Bar 0...3625 Psi 0...25 Mpa
  • Set Point Sp: 2...250 Bar 40...3620 Psi 0.2...25 Mpa
  • Reset Point Rp: 1...249 Bar 20...3600 Psi 0.1...24.9 Mpa
  • In Steps Of: 1 Bar 20 Psi 0.1 Mpa
  • Factory Setting: Sp1 = 63 Bar Rp1 = 58 Bar Sp2 = 188 Bar Rp2 = 183 Bar
  • Switch Point Accuracy [% Of The Span]: < 0,5
  • Repeatability [% Of The Span]: < 0,1; (With Temperature Fluctuations < 10 K)
  • Characteristics Deviation [% Of The Span]: < 0,25 (Bfsl) / < 0,5 (Ls); (Bfsl = Best Fit Straight Line; Ls = Limit Value Setting)
  • Hysteresis Deviation [% Of The Span]: < 0,25
  • Long-Term Stability [% Of The Span]: < 0,05; (Per 6 Months)
  • Temperature Coefficient Zero Point [% Of The Span / 10 K]: 0,2; (0...80 C)
  • Temperature Coefficient Span [% Of The Span / 10 K]: 0,2; (0...80 C)
  • Delay Time Programmable Ds, Dr [S]: 0; 0,2...50
  • Parameter Setting Options: Hysteresis / Window; Normally Open / Closed; Diagnostic Function; Switching Logic; Switch-On/Switch-Off Delay; Damping; Display Unit
  • Communication Interface: Io-Link
  • Transmission Type: Com2 (38,4 Kbaud)
  • Io-Link Revision: 1.1
  • Sdci Standard: Iec 61131-9 Cdv
  • Io-Link Device Id: 308 D / 00 01 34 H
  • Profiles: No Profile
  • Sio Mode: Yes
  • Required Master Port Class: A
  • Process Data Analogue: 1
  • Process Data Binary: 2
  • Min. Process Cycle Time [Ms]: 2.3
  • Ambient Temperature [C]: -20...80
  • Storage Temperature [C]: -40...100
  • Protection: Ip 67
  • Emc: En 61000-4-2 Esd 4 Kv Cd / 8 Kv Ad En 61000-4-3 Hf Radiated 10 V/M En 61000-4-4 Burst 2 Kv En 61000-4-5 Surge 0,5/1 Kv En 61000-4-6 Hf Conducted 10 V
  • Shock Resistance: Din Iec 68-2-27 50 G (11 Ms)
  • Vibration Resistance: Din Iec 68-2-6 20 G (10...2000 Hz)
  • Materials (Wetted Parts): Stainless Steel (1.4305 / 303); Ceramics; Fkm
  • Min. Pressure Cycles: 100 Million
  • Process Connection: Threaded Connection G 1/4 Internal Thread
  • Display: Display Unit 3 X Led, Green Switching Status 2 X Led, Yellow Function Display Alphanumeric Display, 4-Digit Measured Values Alphanumeric Display, 4-Digit
  • Alternate Manufacturer Name: IFM
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on PN7001 . Santa Clara Systems carries 2,203 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
