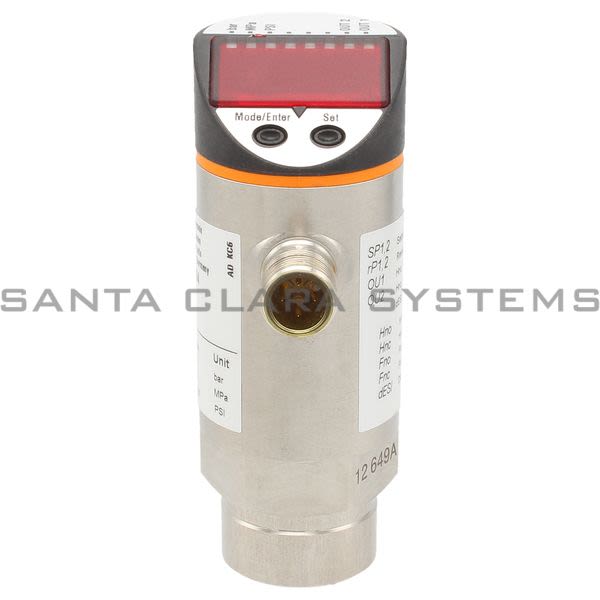

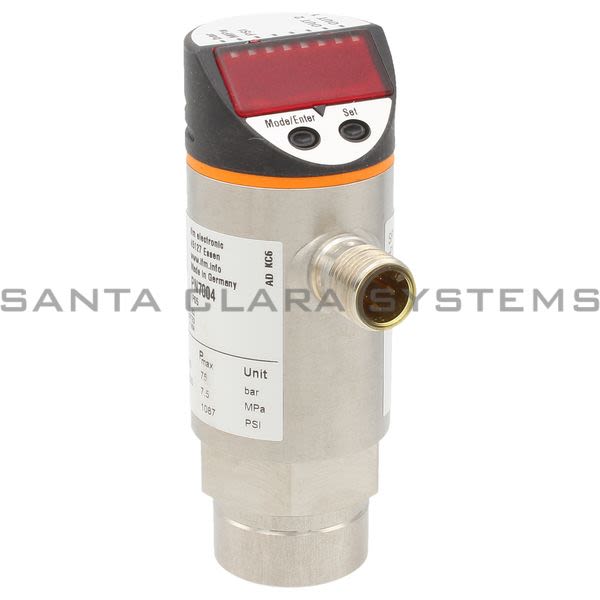

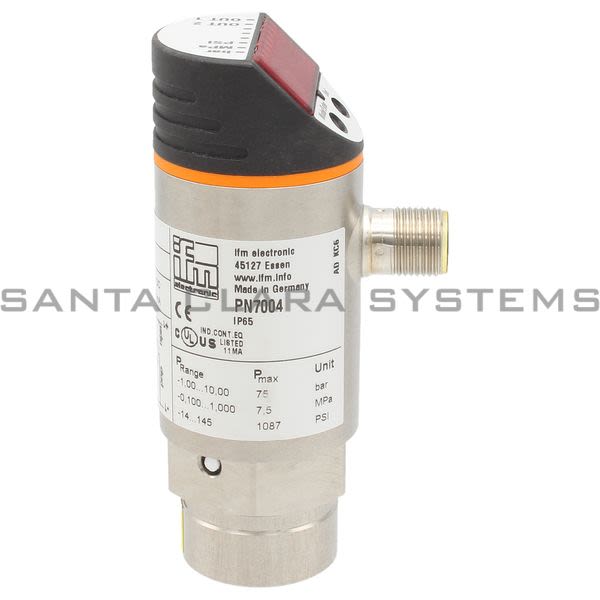

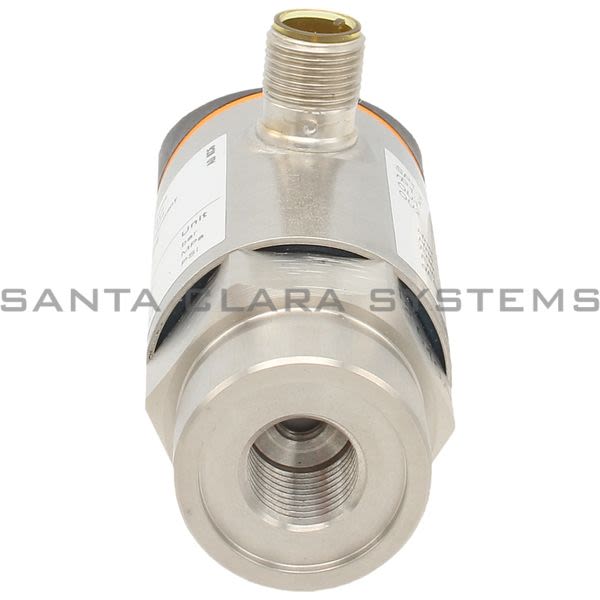

• Efector PN7004 Pressure Sensor | PN-010-RBR14-QFRKG/US/ /V Product Image
  • Efector PN7004 Pressure Sensor | PN-010-RBR14-QFRKG/US/ /V Product Image
  • Efector PN7004 Pressure Sensor | PN-010-RBR14-QFRKG/US/ /V Product Image
  • Efector PN7004 Pressure Sensor | PN-010-RBR14-QFRKG/US/ /V Product Image

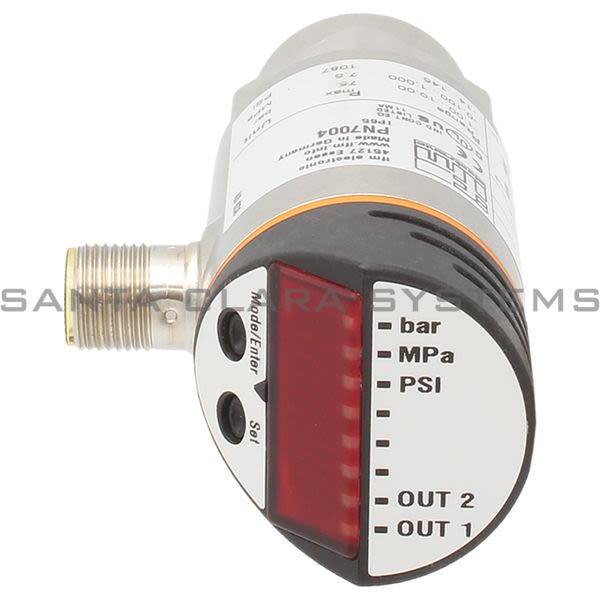

  • Efector PN7004 Pressure Sensor | PN-010-RBR14-QFRKG/US/ /V Product Image
  • Efector PN7004 Barcode

PN7004

Product Summary:

  • Electrical Design: DC PNP/NPN
  • Operating Voltage: 18 to 36 VDC
  • Measuring Range: -1 to 10 bar, -14.5 to 145 psi, -0.1 to 1.0 MPa
  • Ambient Temperature [C]: -25 to 80 (UB < 32 V) / -25 to 60 (UB > 32 V)
  • Alternate Manufacturer Name: IFM
Get a Quote

Current response time:

9 Minutes 50 Seconds
  • Description: Pressure Sensor | PN-010-RBR14-QFRKG/US/ /V
  • Electrical Design: DC PNP/NPN
  • Operating Voltage: 18 to 36 VDC
  • Output: 2 outputs OUT1 = switching output OUT2 = switching output or diagnostic output
  • Material: stainless steel (1.4301 / 304); stainless steel (1.4404 / 316L); PC; PBT; PEI; FKM; PTFE
  • Measuring Range: -1 to 10 bar, -14.5 to 145 psi, -0.1 to 1.0 MPa
  • Ambient Temperature [C]: -25 to 80 (UB < 32 V) / -25 to 60 (UB > 32 V)
  • Alternate Manufacturer Name: IFM
  • Output signal: switching signal; IO-Link; (configurable)
  • Process connection: threaded connection G 1/4 Internal thread
  • System: gold-plated contacts
  • Application: for industrial applications
  • Media: liquids and gases
  • Medium temperature [C]: -25...80
  • Pressure rating: 75 bar 1087 psi 7.5 MPa
  • Min. bursting pressure: 150 bar 2175 psi 15 MPa
  • Type of pressure: relative pressure
  • Operating voltage [V]: 18...36 DC; (according to EN 50178 SELV/PELV)
  • Current consumption [mA]: < 35
  • Min. insulation resistance [M]: 100; (500 V DC)
  • Protection class: III
  • Reverse polarity protection: yes
  • Overvoltage protection: yes; (< 40 V)
  • Power-on delay time [s]: 0.3
  • Integrated watchdog: yes
  • Number of inputs and outputs: Number of digital outputs: 2
  • Max. voltage drop switching output DC [V]: 2
  • Permanent current rating of switching output DC [mA]: 250
  • Switching frequency DC [Hz]: < 170
  • Short-circuit protection: yes
  • Type of short-circuit protection: yes (non-latching)
  • Set point SP: -0.9...10 bar -12...145 psi -0.09...1 MPa
  • Reset point rP: -0.95...9.95 bar -13...144 psi -0.095...0.995 MPa
  • In steps of: 0.05 bar 1 psi 0.005 MPa
  • Factory setting: SP1 = 2.50 bar rP1 = 2.30 bar SP2 = 7.50 bar rP2 = 7.30 bar
  • Switch point accuracy [% of the span]: < 0,5
  • Repeatability [% of the span]: < 0,1; (with temperature fluctuations < 10 K)
  • Characteristics deviation [% of the span]: < 0,25 (BFSL) / < 0,5 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting)
  • Hysteresis deviation [% of the span]: < 0,25
  • Long-term stability [% of the span]: < 0,05; (per 6 months)
  • Temperature coefficient zero point [% of the span / 10 K]: 0,2; (-20...80 C)
  • Temperature coefficient span [% of the span / 10 K]: 0,2; (-20...80 C)
  • Delay time programmable dS, dr [s]: 0; 0,2...50
  • Parameter setting options: hysteresis / window; normally open / closed; Diagnostic function; switching logic; switch-on/switch-off delay; Damping; Display unit
  • Communication interface: IO-Link
  • Transmission type: COM2 (38,4 kBaud)
  • IO-Link revision: 1.1
  • SDCI standard: IEC 61131-9 CDV
  • IO-Link device ID: 311 d / 00 01 37 h
  • Profiles: no profile
  • SIO mode: yes
  • Required master port class: A
  • Process data analogue: 1
  • Process data binary: 2
  • Min. process cycle time [ms]: 2.3
  • Storage temperature [C]: -40...100
  • Protection: IP 65
  • EMC: EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-5 Surge 0,5/1 kV EN 61000-4-6 HF conducted 10 V
  • Shock resistance: DIN IEC 68-2-27 50 g (11 ms)
  • Vibration resistance: DIN IEC 68-2-6 20 g (10...2000 Hz)
  • MTTF [years]: 219
  • Pressure equipment directive: sound engineering practice; can be used for group 2 fluids; group 1 fluids on request
  • Weight [g]: 262.6
  • Materials (wetted parts): stainless steel (1.4305 / 303); ceramics; FKM
  • Min. pressure cycles: 100 million
  • Restrictor element integrated: no (can be retrofitted)
  • Display: Display unit 3 x LED, green Switching status 2 x LED, yellow Function display alphanumeric display, 4-digit Measured values alphanumeric display, 4-digit
  • Pack quantity: 1 pcs.
  • Connector: 1 x M12; Contacts: gold-plated
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on PN7004 . Santa Clara Systems carries 1,831 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
