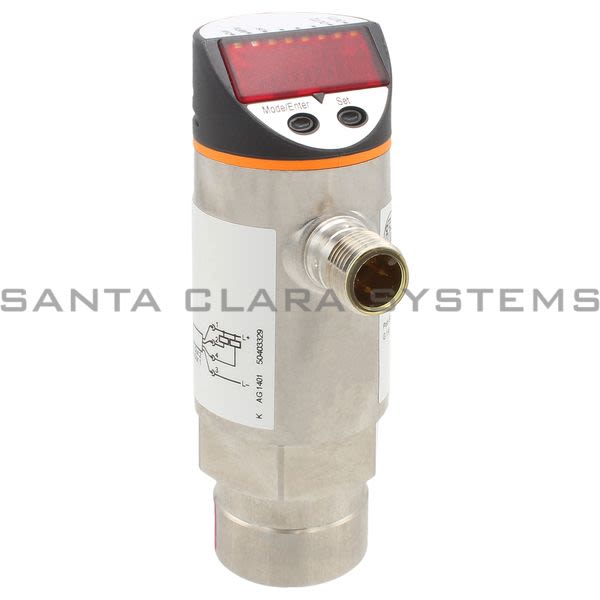

• Efector PN7060 Pressure Control Product Image

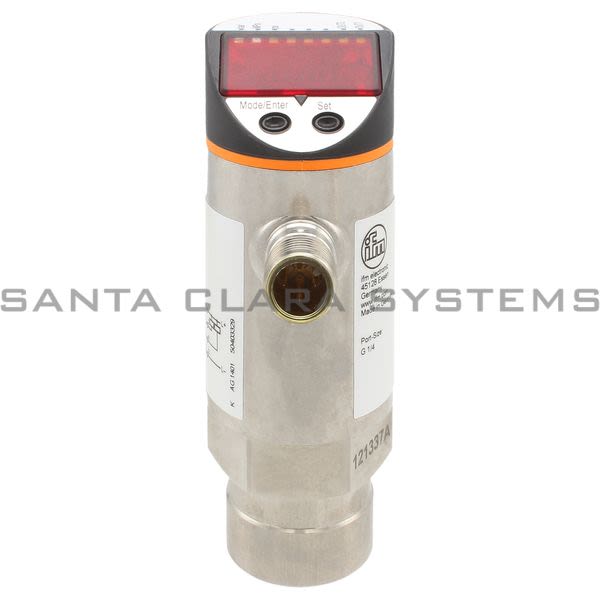

  • Efector PN7060 Pressure Control Product Image

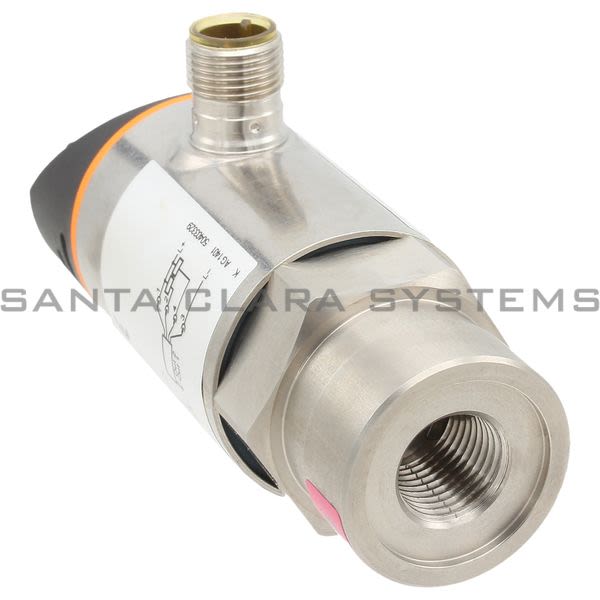

  • Efector PN7060 Pressure Control Product Image

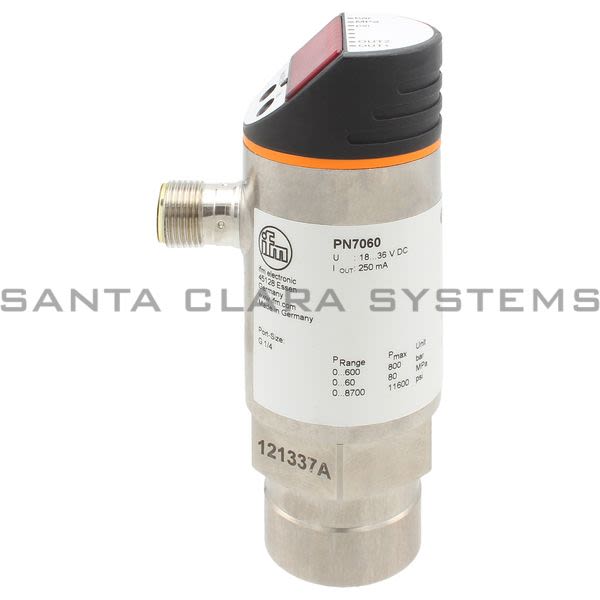

  • Efector PN7060 Pressure Control Product Image
  • Efector PN7060 Barcode

PN7060

Product Summary:

  • Electrical Design: Pnp/Npn
  • Output Function: Normally Open / Closed; (Configurable)
  • Media: Liquids And Gases
  • Conditionally Suitable For: Use In Gases At Pressures > 25 Bar Only On Request
  • Medium Temperature [C]: -25...80
Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: Pressure Control
  • Electrical Design: Pnp/Npn
  • Output Function: Normally Open / Closed; (Configurable)
  • Material: Stainless Steel (1.4301 / 304); Stainless Steel (1.4404 / 316L); Pc; Pbt; Pei; Fkm
  • Media: Liquids And Gases
  • Conditionally Suitable For: Use In Gases At Pressures > 25 Bar Only On Request
  • Medium Temperature [C]: -25...80
  • Pressure Rating: 800 Bar 11600 Psi 80 Mpa
  • Min. Bursting Pressure: 1200 Bar 17400 Psi 120 Mpa
  • Type Of Pressure: Relative Pressure
  • Operating Voltage [V]: 18...36 Dc; (According To En 50178 Selv/Pelv)
  • Current Consumption [Ma]: < 35
  • Min. Insulation Resistance [M?]: 100; (500 V Dc)
  • Protection Class: Iii
  • Reverse Polarity Protection: Yes
  • Overvoltage Protection: Yes; (< 40 V)
  • Power-On Delay Time [S]: 0.3
  • Integrated Watchdog: Yes
  • Number Of Inputs And Outputs: Number Of Digital Outputs: 2
  • Total Number Of Outputs: 2
  • Output Signal: Switching Signal; Io-Link; (Configurable)
  • Number Of Digital Outputs: 2
  • Max. Voltage Drop Switching Output Dc [V]: 2
  • Permanent Current Rating Of Switching Output Dc [Ma]: 250
  • Switching Frequency Dc [Hz]: < 170
  • Short-Circuit Protection: Yes
  • Type Of Short-Circuit Protection: Yes (Non-Latching)
  • Measuring Range: 0...600 Bar 0...8700 Psi 0...60 Mpa
  • Set Point Sp: 6...600 Bar 100...8700 Psi 0.6...60 Mpa
  • Reset Point Rp: 3...597 Bar 50...8650 Psi 0.3...59.7 Mpa
  • In Steps Of: 3 Bar 50 Psi 0.3 Mpa
  • Factory Setting: Sp1 = 150 Bar Rp1 = 138 Bar Sp2 = 450 Bar Rp2 = 438 Bar
  • Switch Point Accuracy [% Of The Span]: < 0,5
  • Repeatability [% Of The Span]: < 0,1; (With Temperature Fluctuations < 10 K)
  • Characteristics Deviation [% Of The Span]: < 0,25 (Bfsl) / < 0,5 (Ls); (Bfsl = Best Fit Straight Line; Ls = Limit Value Setting)
  • Hysteresis Deviation [% Of The Span]: < 1,0
  • Long-Term Stability [% Of The Span]: < 0,05; (Per 6 Months)
  • Temperature Coefficient Zero Point [% Of The Span / 10 K]: 0,2; (0...80 C)
  • Temperature Coefficient Span [% Of The Span / 10 K]: 0,2; (0...80 C)
  • Delay Time Programmable Ds, Dr [S]: 0; 0,2...50
  • Parameter Setting Options: Hysteresis / Window; Normally Open / Closed; Diagnostic Function; Switching Logic; Switch-On/Switch-Off Delay; Damping; Display Unit
  • Communication Interface: Io-Link
  • Transmission Type: Com2 (38,4 Kbaud)
  • Io-Link Revision: 1.1
  • Sdci Standard: Iec 61131-9 Cdv
  • Io-Link Device Id: 315 D / 00 01 3B H
  • Profiles: No Profile
  • Sio Mode: Yes
  • Required Master Port Class: A
  • Process Data Analogue: 1
  • Process Data Binary: 2
  • Min. Process Cycle Time [Ms]: 2.3
  • Ambient Temperature [C]: -20...80
  • Storage Temperature [C]: -40...100
  • Protection: Ip 67
  • Emc: En 61000-4-2 Esd 4 Kv Cd / 8 Kv Ad En 61000-4-3 Hf Radiated 10 V/M En 61000-4-4 Burst 2 Kv En 61000-4-5 Surge 0,5/1 Kv En 61000-4-6 Hf Conducted 10 V
  • Shock Resistance: Din Iec 68-2-27 50 G (11 Ms)
  • Vibration Resistance: Din Iec 68-2-6 20 G (10...2000 Hz)
  • Materials (Wetted Parts): Stainless Steel (1.4305 / 303); Ceramics; Fkm
  • Min. Pressure Cycles: 50 Million
  • Process Connection: Threaded Connection G 1/4 Internal Thread
  • Display: Display Unit 3 X Led, Green Switching Status 2 X Led, Yellow Function Display Alphanumeric Display, 4-Digit Measured Values Alphanumeric Display, 4-Digit
  • Alternate Manufacturer Name: IFM
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on PN7060 . Santa Clara Systems carries 2,078 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
