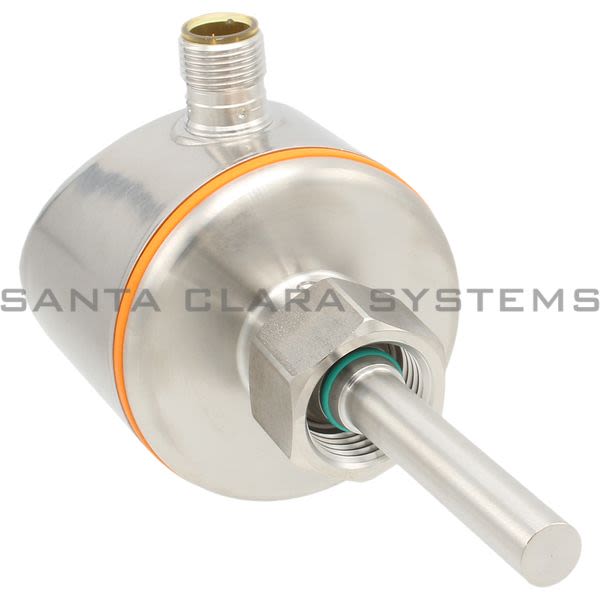

• Efector SI5010 Flow Monitor | SID10ADBFPKG/US-100 Product Image

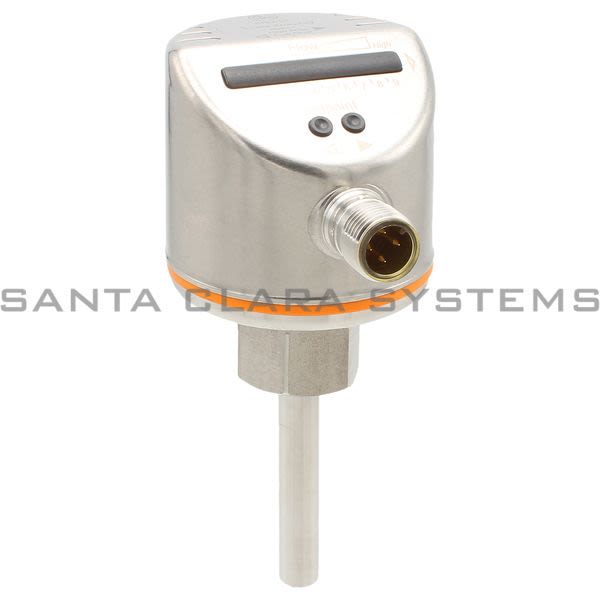

  • Efector SI5010 Flow Monitor | SID10ADBFPKG/US-100 Product Image

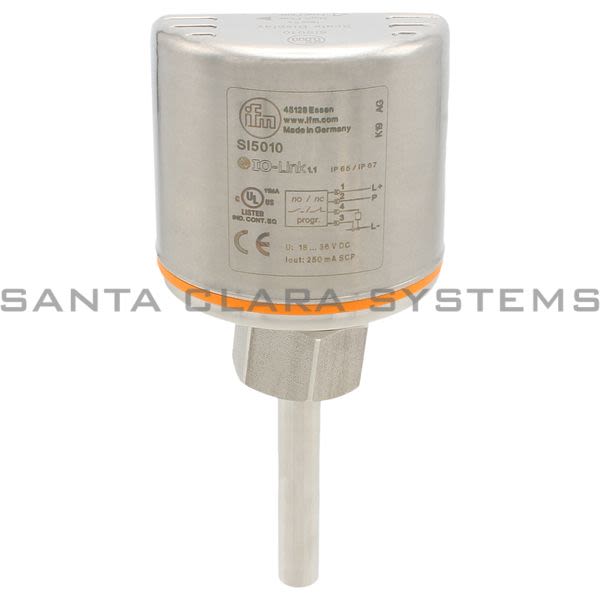

  • Efector SI5010 Flow Monitor | SID10ADBFPKG/US-100 Product Image

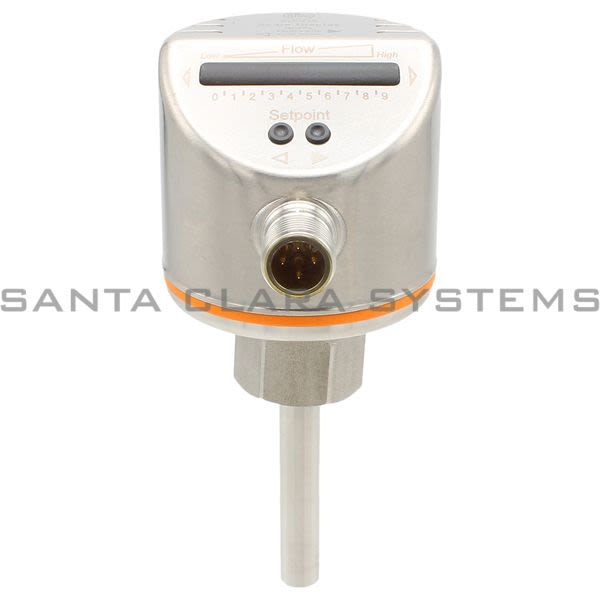

  • Efector SI5010 Flow Monitor | SID10ADBFPKG/US-100 Product Image
  • Efector SI5010 Barcode

SI5010

Product Summary:

  • Electrical Design: Pnp
  • Output Function: Normally Open / Closed; (Configurable)
  • Media: Liquids; Gases
  • Medium Temperature [C]: -25...80
  • Pressure Rating [Bar]: 300
Get a Quote

Current response time:

6 Minutes 11 Seconds
  • Description: Flow Monitor | SID10ADBFPKG/US-100
  • Electrical Design: Pnp
  • Output Function: Normally Open / Closed; (Configurable)
  • Material: Stainless Steel (1.4404 / 316L); Stainless Steel (1.4301 / 304); Pc; Pbt-Gf20; Epdm/X
  • Media: Liquids; Gases
  • Medium Temperature [C]: -25...80
  • Pressure Rating [Bar]: 300
  • Mawp (For Applications According To Crn) [Bar]: 208
  • Operating Voltage [V]: 18...36 Dc
  • Current Consumption [Ma]: < 60
  • Protection Class: Iii
  • Reverse Polarity Protection: Yes
  • Power-On Delay Time [S]: 10
  • Number Of Inputs And Outputs: Number Of Digital Outputs: 1
  • Total Number Of Outputs: 1
  • Output Signal: Switching Signal; Io-Link; (Configurable)
  • Number Of Digital Outputs: 1
  • Max. Voltage Drop Switching Output Dc [V]: 2.5
  • Permanent Current Rating Of Switching Output Dc [Ma]: 250
  • Short-Circuit Protection: Yes
  • Type Of Short-Circuit Protection: Yes (Non-Latching)
  • Overload Protection: Yes
  • Setting Range [Cm/S]: 200...3000
  • Greatest Sensitivity [Cm/S]: 200...800
  • Repeatability [Cm/S]: 1...5
  • Temperature Drift [Cm/S X 1/K]: 0.1; (For Water 5...100 Cm/S; 10...70 C)
  • Max. Temperature Gradient Of Medium [K/Min]: 300
  • Switch Point Accuracy [Cm/S]: 2... 10; (For Water 5...100 Cm/S; 25 C; Factory Setting)
  • Hysteresis [Cm/S]: 2...5; (For Water 5...100 Cm/S; 25 C; Factory Setting)
  • Response Time [S]: 1...10
  • Adjustment Of The Switch Point: Pushbuttons
  • Communication Interface: Io-Link
  • Transmission Type: Com2 (38,4 Kbaud)
  • Io-Link Revision: 1.1
  • Sdci Standard: Iec 61131-9
  • Io-Link Device Id: 54 D / 00 00 36 H
  • Profiles: Smart Sensor: Process Data Variable; Device Identification
  • Sio Mode: Yes
  • Required Master Port Class: A
  • Process Data Analogue: 2
  • Process Data Binary: 2
  • Min. Process Cycle Time [Ms]: 3
  • Ambient Temperature [C]: -25...80
  • Storage Temperature [C]: -25...100
  • Protection: Ip 65; Ip 67
  • Emc: Din En 61000-6-2 Din En 61000-6-3
  • Shock Resistance: Din Iec 60068-2-27 50 G (11 Ms)
  • Vibration Resistance: Din En 60068-2-6 20 G (55...2000 Hz)
  • Dimensions [Mm]: M18 X 1.5
  • Thread Designation: M18 X 1.5
  • Materials (Wetted Parts): Stainless Steel (1.4404 / 316L); O-Ring: Fkm 80 Shore A
  • Process Connection: M18 X 1,5 Internal Thread
  • Display: Function 10 X Led, Three-Colour
  • Connection: Connector: 1 X M12
  • Alternate Manufacturer Name: IFM
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on SI5010 . Santa Clara Systems carries 2,078 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
