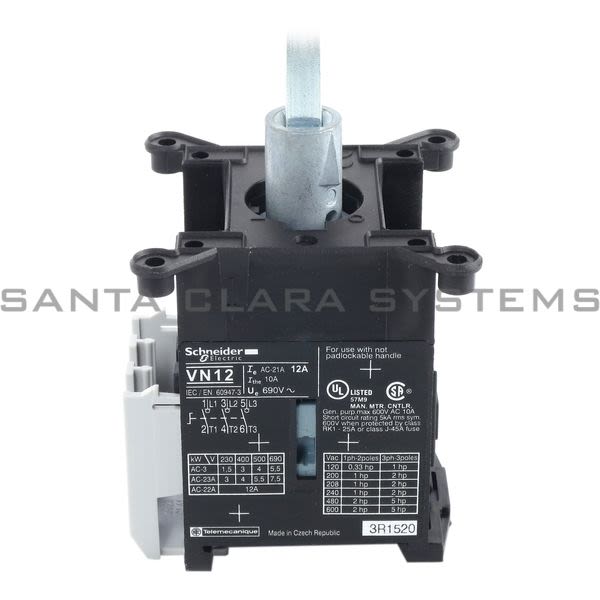

• Telemecanique VCCDN12 TeSys Mini-Vario - emergency stop switch disconnector - 12 A - back of enclosure Product Image

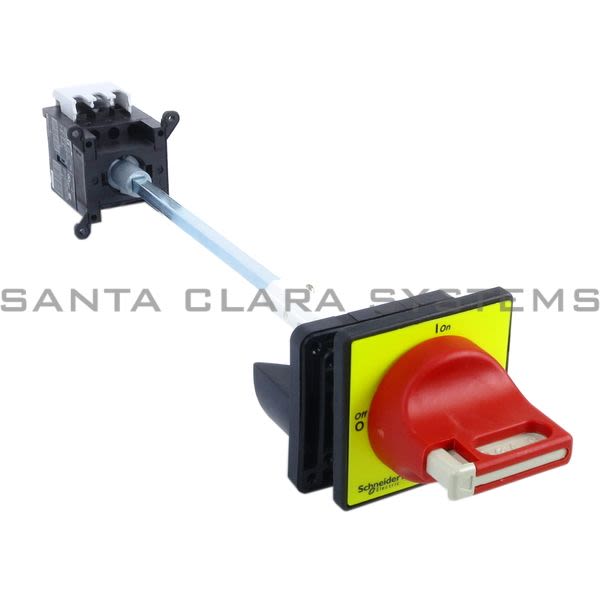

  • Telemecanique VCCDN12 TeSys Mini-Vario - emergency stop switch disconnector - 12 A - back of enclosure Product Image

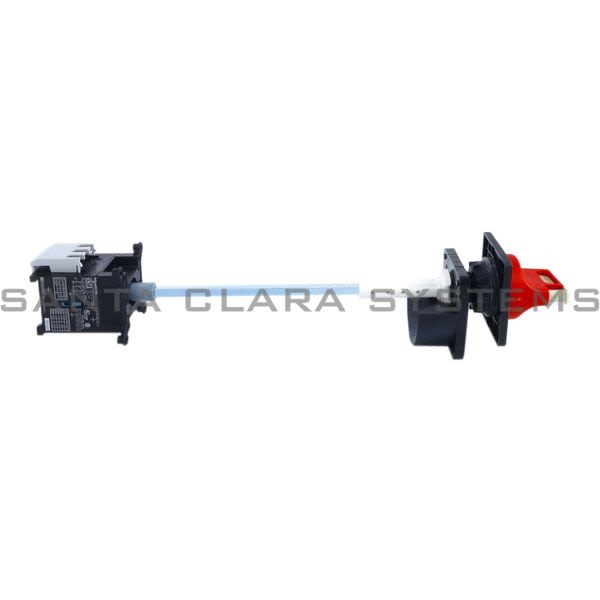

  • Telemecanique VCCDN12 TeSys Mini-Vario - emergency stop switch disconnector - 12 A - back of enclosure Product Image
  • Telemecanique VCCDN12 TeSys Mini-Vario - emergency stop switch disconnector - 12 A - back of enclosure Product Image
  • Telemecanique VCCDN12 Barcode

VCCDN12

Resumen del Producto:

  • Product weight: 0.74 lb(US) (0.334 kg)
  • IP degree of protection: IP65
  • Standards: IEC 60947-3
  • Device short name: VCCDN
  • Width: 2.36 in (60 mm)
Obtén una Cotización

Current Response time:

By 5AM PT on Tuesday
  • Descripción: TeSys Mini-Vario - emergency stop switch disconnector - 12 A - back of enclosure
  • Product weight: 0.74 lb(US) (0.334 kg)
  • IP degree of protection: IP65
  • Standards: IEC 60947-3
  • Device short name: VCCDN
  • Width: 2.36 in (60 mm)
  • Height: 2.36 in (60 mm)
  • Protective treatment: TC
  • [Uimp] rated impulse withstand voltage: 6 kV
  • Mechanical durability: 50000 cycles
  • Tightening torque: Power circuit: 6.19 lbf.in (0.7 N.m) - on screw clamp terminals
  • Connections - terminals: Power circuit: screw clamp terminals cable 0.01 in (4 mm) - cable stiffness: flexible - with cable end cable end, Power circuit: screw clamp terminals cable 0.01 in (4 mm) - cable stiffness: solid -
  • Range: TeSys
  • Mounting support: Handle mounting on door, Switch mounting on symmetrical rail
  • [Ith] conventional free air thermal current: 12:00 AM
  • System Voltage: 690 V AC 50/60 Hz
  • Product name: TeSys Mini-VARIO
  • Electrical durability: 30000 cycles DC-1...5, 50000 cycles AC-21
  • [Ie] rated operational current: 8.1 A (AC-23)at 400 V
  • Poles description: 3P
  • Control type: Rotary handle
  • Breaking capacity: 120 kA 400 V AC-21A, 120 kA 400 V AC-22A, 120 kA 400 V AC-23A
  • Handle color: Red
  • Performance level: Standard
  • Contacts type and composition: 3 NO
  • Network type: AC, DC
  • Rotary handle mounting style: Extended
  • Handle colour: Red
  • Handle front plate colour: Yellow
  • Marking: 0 - 1
  • Product certifications: CSA, CCC, UL, GL
  • Fixing mode: Hole with 0.89 in (22.5 mm)for handle, By clips switch
  • Product or component type: Emergency stop switch disconnector
  • Mechanical robustness: Vibrations 10...150 Hz 5 gn IEC 60068-2-6, Shocks 11 ms 15 gn IEC 60068-2-27
  • Ambient air temperature for operation: -4...122 F (-20...50 C)
  • [Ithe] conventional enclosed thermal current: 10:00 AM
  • Fire resistance: 1760 F (960 C) conforming to IEC 60695-2-1
  • rated operational power in W: 3 kW 230...240 V (AC-23A), 4 kW 400...415 V (AC-23A), 5.5 kW 500 V (AC-23A), 7.5 kW 690 V (AC-23A), 1.5 kW 230...240 V (AC-3), 3 kW 400...415 V (AC-3), 4 kW 500 V (AC-3), 4 kW 690 V (AC-3)
  • Intermittent duty class: 30
  • Making capacity: 120 A 400 V (AC-21A), 120 A 400 V (AC-22A), 120 A 400 V (AC-23A)
  • Handle front plate color: Yellow
  • [Icm] rated short-circuit making capacity: 0.5 kA 400 V at Ipeak
  • Rotary handle padlocking: 1 to 3 padlocks 0.16...0.31 in (4...8 mm)
  • [Icw] rated short-time withstand current: 140 A 400 V during 1 s
  • Rated conditional short-circuit current: 6 kA 400 V - associated fuse 12 A aM, 6 kA 400 V - associated fuse 12 A gG
  • Device composition: Handle, Switch, Shaft extension
  • Suitability for isolation: Yes
  • Base dimension: 60 x 60 mm
