VCCDN12

Product Summary:

  • Performance level: Standard
  • Poles description: 3P
  • Contacts type and composition: 3 NO
  • Network type: AC DC, AC DC
  • Control type: Rotary handle
Get a Quote

Current response time:

By 5AM PT on Monday

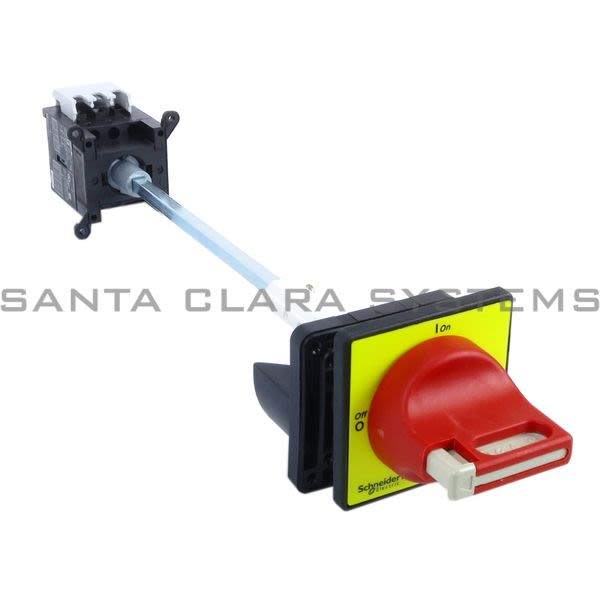

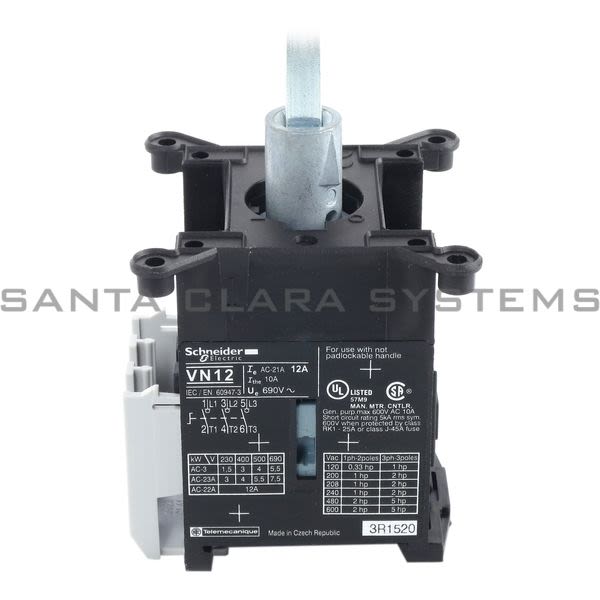

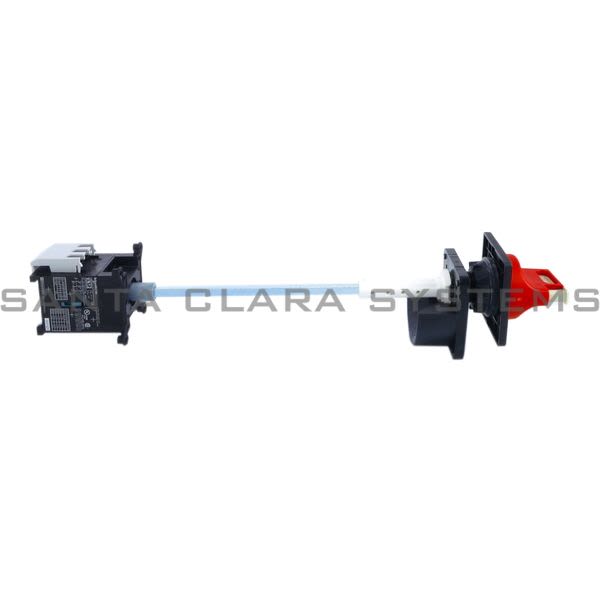

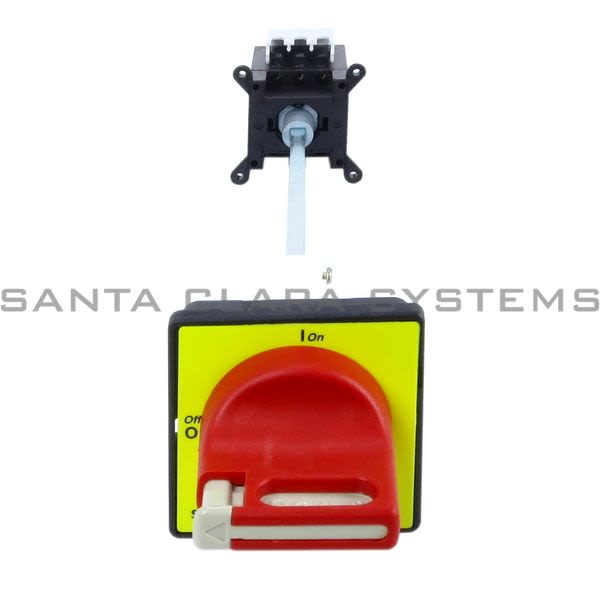

  • Description: TeSys Mini-Vario - emergency stop switch disconnector - 12 A - back of enclosure
  • [Ithe] conventional enclosed thermal current: 10:00 AM
  • fire resistance: 1760 F (960 C) conforming to IEC 60695-2-1
  • [Ie] rated operational current: 8.1 A (AC-23)at 400 V
  • rated operational power in W: 3 kW 230...240 V (AC-23A) 4 kW 400...415 V (AC-23A) 5.5 kW 500 V (AC-23A) 7.5 kW 690 V (AC-23A) 1.5 kW 230...240 V (AC-3) 3 kW 400...415 V (AC-3) 4 kW 500 V (AC-3) 4 kW 690 V (AC-3), 3 kW 230...240 V (AC-23A) 4 kW 400...415 V (AC-23A) 5.5 kW 500 V (AC-23A) 7.5 kW 690 V (AC-23A) 1.5 kW 230...240 V (AC-3) 3 kW 400...415 V (AC-3) 4 kW 500 V (AC-3) 4 kW 690 V (AC-3), 3 kW 230...240 V (AC-23A) 4 kW 400...415 V (AC-23A) 5.5 kW 500 V (AC-23A) 7.5 kW 690 V (AC-23A) 1.5 kW 230...240 V (AC-3) 3 kW 400...415 V (AC-3) 4 kW 500 V (AC-3) 4 kW 690 V (AC-3), 3 kW 230...240 V (AC-23A) 4 kW 400...415 V (AC-23A) 5.5 kW 500 V (AC-23A) 7.5 kW 690 V (AC-23A) 1.5 kW 230...240 V (AC-3) 3 kW 400...415 V (AC-3) 4 kW 500 V (AC-3) 4 kW 690 V (AC-3), 3 kW 230...240 V (AC-23A) 4 kW 400...415 V (AC-23A) 5.5 kW 500 V (AC-23A) 7.5 kW 690 V (AC-23A) 1.5 kW 230...240 V (AC-3) 3 kW 400...415 V (AC-3) 4 kW 500 V (AC-3) 4 kW 690 V (AC-3), 3 kW 230...240 V (AC-23A) 4 kW 400...415 V (AC-23A) 5.5 kW 500 V (AC-23A) 7.5 kW 690 V (AC-23A) 1.5 kW 230...240 V (AC-3) 3 kW 400...415 V (AC-3) 4 kW 500 V (AC-3) 4 kW 690 V (AC-3), 3 kW 230...240 V (AC-23A) 4 kW 400...415 V (AC-23A) 5.5 kW 500 V (AC-23A) 7.5 kW 690 V (AC-23A) 1.5 kW 230...240 V (AC-3) 3 kW 400...415 V (AC-3) 4 kW 500 V (AC-3) 4 kW 690 V (AC-3), 3 kW 230...240 V (AC-23A) 4 kW 400...415 V (AC-23A) 5.5 kW 500 V (AC-23A) 7.5 kW 690 V (AC-23A) 1.5 kW 230...240 V (AC-3) 3 kW 400...415 V (AC-3) 4 kW 500 V (AC-3) 4 kW 690 V (AC-3)
  • intermittent duty class: 30
  • handle color: Red
  • making capacity: 120 A 400 V (AC-21A) 120 A 400 V (AC-22A) 120 A 400 V (AC-23A), 120 A 400 V (AC-21A) 120 A 400 V (AC-22A) 120 A 400 V (AC-23A), 120 A 400 V (AC-21A) 120 A 400 V (AC-22A) 120 A 400 V (AC-23A)
  • handle front plate color: Yellow
  • [Icm] rated short-circuit making capacity: 0.5 kA 400 V at Ipeak
  • rotary handle padlocking: 1 to 3 padlocks 0.16...0.31 in (4...8 mm)
  • [Icw] rated short-time withstand current: 140 A 400 V during 1 s
  • rated conditional short-circuit current: 6 kA 400 V - associated fuse 12 A aM 6 kA 400 V - associated fuse 12 A gG, 6 kA 400 V - associated fuse 12 A aM 6 kA 400 V - associated fuse 12 A gG
  • breaking capacity: 120 kA 400 V AC-21A 120 kA 400 V AC-22A 120 kA 400 V AC-23A, 120 kA 400 V AC-21A 120 kA 400 V AC-22A 120 kA 400 V AC-23A, 120 kA 400 V AC-21A 120 kA 400 V AC-22A 120 kA 400 V AC-23A
  • device composition: Handle Switch Shaft extension, Handle Switch Shaft extension, Handle Switch Shaft extension
  • mechanical durability: 50000 cycles
  • electrical durability: 30000 cycles DC-1...5 50000 cycles AC-21, 30000 cycles DC-1...5 50000 cycles AC-21
  • suitability for isolation: Yes
  • connections - terminals: Power circuit: screw clamp terminals cable 0.01 in (4 mm) - cable stiffness: flexible - with cable end cable end Power circuit: screw clamp terminals cable 0.01 in (4 mm) - cable stiffness: solid -, Power circuit: screw clamp terminals cable 0.01 in (4 mm) - cable stiffness: flexible - with cable end cable end Power circuit: screw clamp terminals cable 0.01 in (4 mm) - cable stiffness: solid -
  • tightening torque: Power circuit: 6.19 lbf.in (0.7 N.m) - on screw clamp terminals
  • base dimension: 60 x 60 mm
  • height: 2.36 in (60 mm)
  • width: 2.36 in (60 mm)
  • product weight: 0.74 lb(US) (0.334 kg)
  • Performance level: Standard
  • Poles description: 3P
  • Contacts type and composition: 3 NO
  • Network type: AC DC, AC DC
  • Control type: Rotary handle
  • Rotary handle mounting style: Extended
  • Handle colour: Red
  • Handle front plate colour: Yellow
  • range: TeSys
  • marking: 0 - 1
  • standards: IEC 60947-3
  • product name: TeSys Mini-VARIO
  • mounting support: Handle mounting on door Switch mounting on symmetrical rail, Handle mounting on door Switch mounting on symmetrical rail
  • product certifications: CSA CCC UL GL, CSA CCC UL GL, CSA CCC UL GL, CSA CCC UL GL
  • device short name: VCCDN
  • fixing mode: Hole with 0.89 in (22.5 mm)for handle By clips switch, Hole with 0.89 in (22.5 mm)for handle By clips switch
  • protective treatment: TC
  • product or component type: Emergency stop switch disconnector
  • System Voltage: 690 V AC 50/60 Hz
  • IP degree of protection: IP65
  • [Uimp] rated impulse withstand voltage: 6 kV
  • mechanical robustness: Vibrations 10...150 Hz 5 gn IEC 60068-2-6 Shocks 11 ms 15 gn IEC 60068-2-27, Vibrations 10...150 Hz 5 gn IEC 60068-2-6 Shocks 11 ms 15 gn IEC 60068-2-27
  • [Ith] conventional free air thermal current: 12:00 AM
  • ambient air temperature for operation: -4...122 F (-20...50 C)
