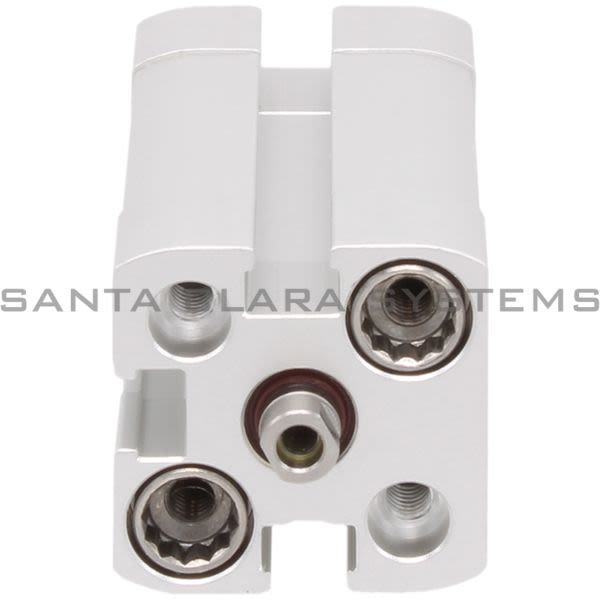

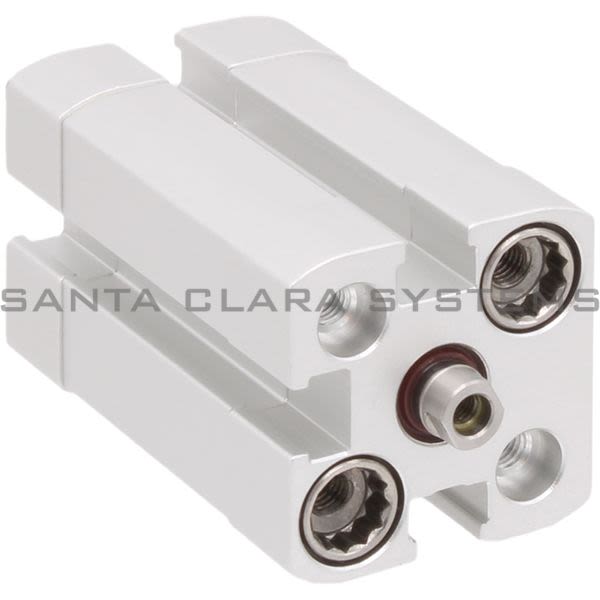

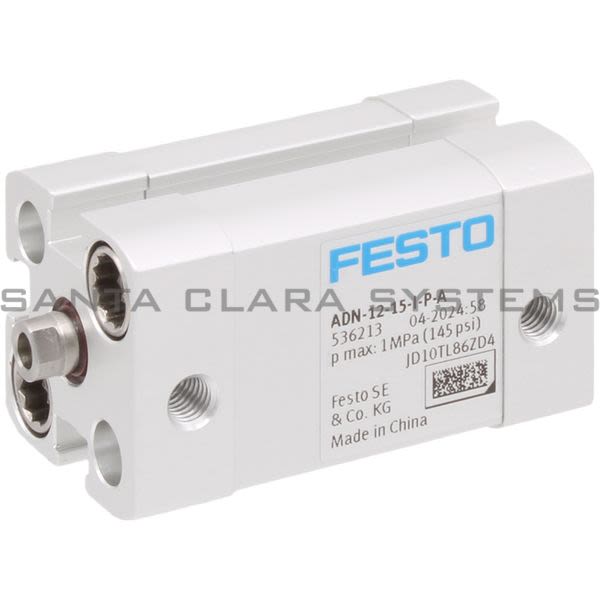

- Description: Compact Air Cylinder
- Ambient temperature: -20 C ... 80 C
- Mode of operation: Double-acting
- Piston diameter: 12 mm
- Theoretical force at 6 bar, advancing: 68 N
- Stroke: 15 mm
- Cushioning: Elastic cushioning rings/pads at both ends
- Piston rod thread: M3
- Based on norm: ISO 21287
- Mounting position: Any
- Piston rod end: Internal thread
- Position sensing: For proximity sensor
- Symbol: 00991217
- Variants: Piston rod at one end
- Operating pressure: 0.1 MPa ... 1 MPa - 1 bar ... 10 bar - 14.5 psi ... 145 psi
- Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC): 2 - Moderate corrosion stress
- LABS (PWIS) conformity: VDMA24364-B1/B2-L
- Cleanroom class: Class 6 according to ISO 14644-1
- Impact energy in the end positions: 0.07 J
- Theoretical force at 6 bar, retracting: 51 N
- Moving mass: 13 g
- Product weight: 80 g
- Type of mounting: Optionally: With through-hole With internal thread With accessories
- Pneumatic connection: M5
- Flange screws material: Steel
- Cover material: Wrought aluminum alloy, anodized
- Seals material: TPE-U(PUR)
- Piston rod material: High-alloy steel
- Material of cylinder barrel: Wrought aluminum alloy, smooth-anodized
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on ADN-12-15-I-P-A . Santa Clara Systems carries 5,560 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
