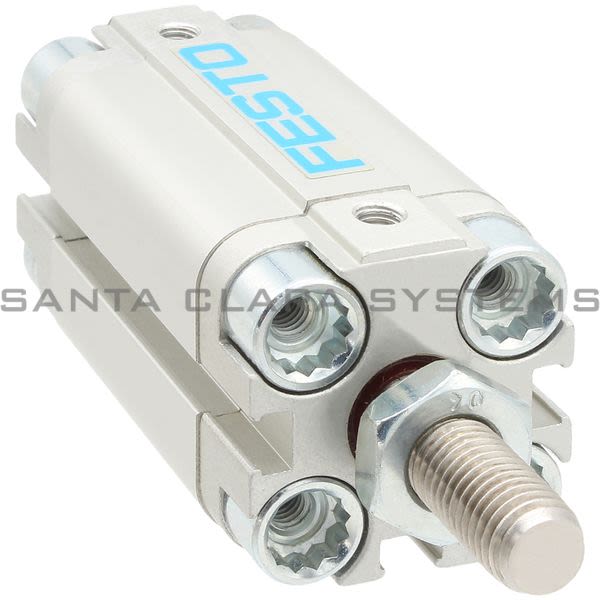

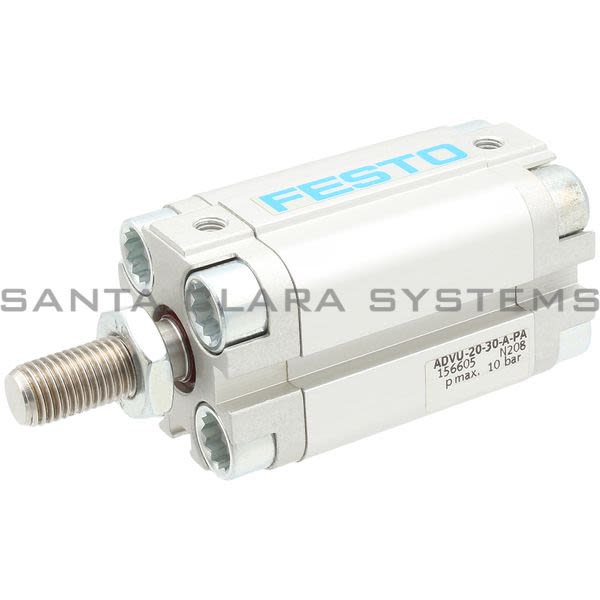

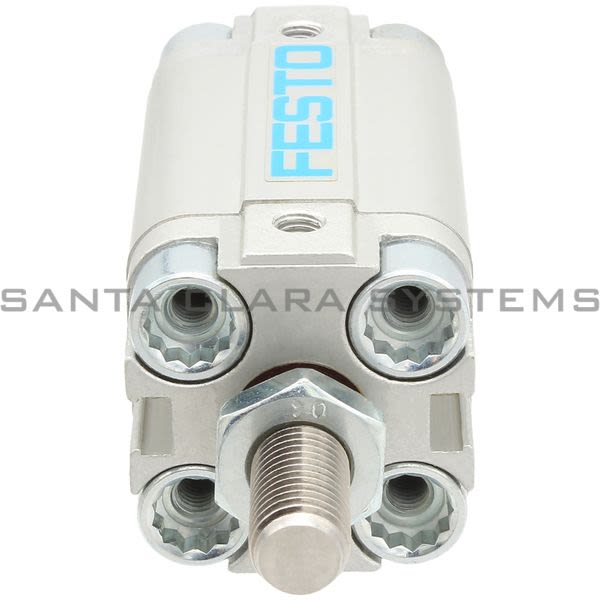

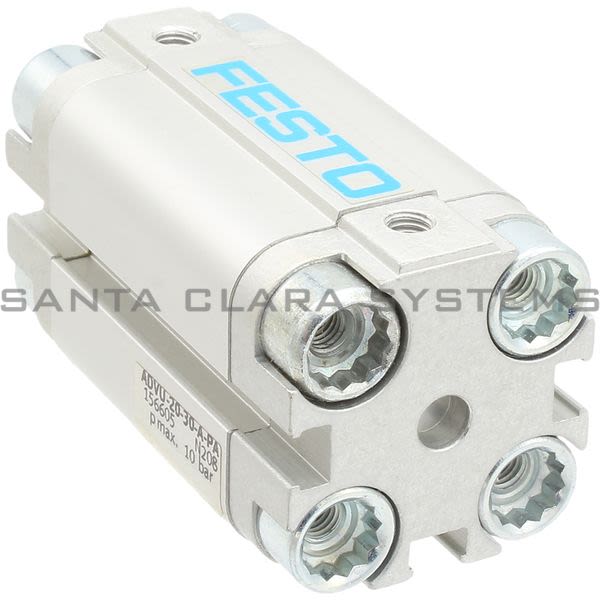

- Description: Compact Air Cylinder
- Ambient temperature: -20 C ... 80 C
- Stroke: 30 mm
- Piston diameter: 20 mm
- Cushioning: Elastic cushioning rings/pads at both ends
- Mounting position: Any
- Mode of operation: Double-acting
- Piston rod end: External thread
- Structural design: Piston Piston rod
- Position sensing: For proximity sensor
- Symbol: 00991217
- Variants: Piston rod at one end
- Operating pressure: 0.1 MPa ... 1 MPa, 1 bar ... 10 bar, 14.5 psi ... 145 psi
- Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC): 2 - Moderate corrosion stress
- LABS (PWIS) conformity: VDMA24364-B1/B2-L
- Impact energy in the end positions: 0.14 J
- Theoretical force at 6 bar, retracting: 141 N
- Theoretical force at 6 bar, advancing: 188 N
- Moving mass at 0 mm stroke: 20 g
- Additional moving mass per 10 mm stroke: 6 g
- Basic weight with 0 mm stroke: 149 g
- Additional weight per 10 mm stroke: 23 g
- Type of mounting: Optionally: With through-hole With accessories
- Pneumatic connection: M5
- Flange screws material: Steel, galvanized
- Cover material: Wrought aluminum alloy
- Material of dynamic seals: NBR TPE-U(PU)
- Piston rod material: High-alloy stainless steel
- Material of cylinder barrel: Wrought aluminum alloy
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on ADVU-20-30-A-P-A . Santa Clara Systems carries 6,005 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
