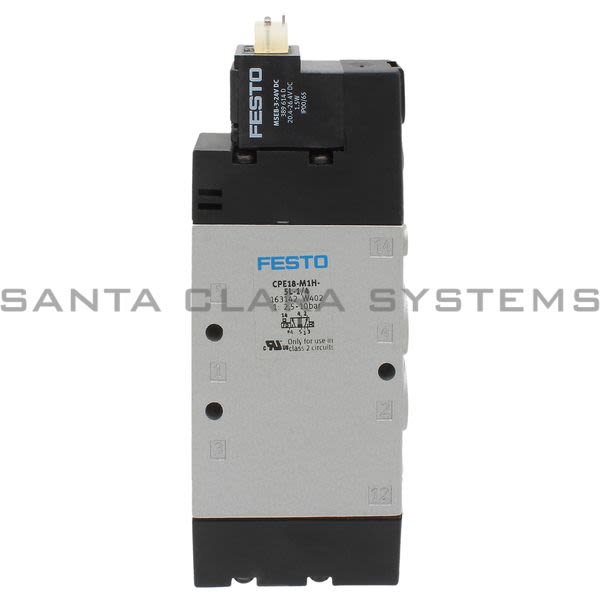

• Festo CPE18-M1H-5L-1/4 Air Solenoid Valve Product Image

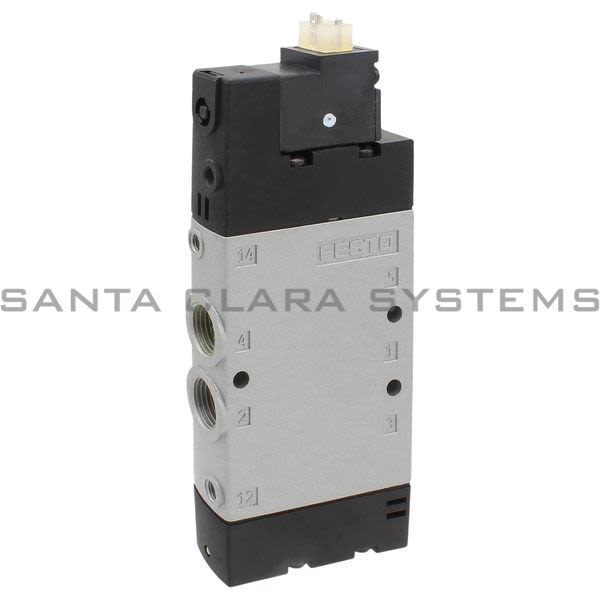

  • Festo CPE18-M1H-5L-1/4 Air Solenoid Valve Product Image

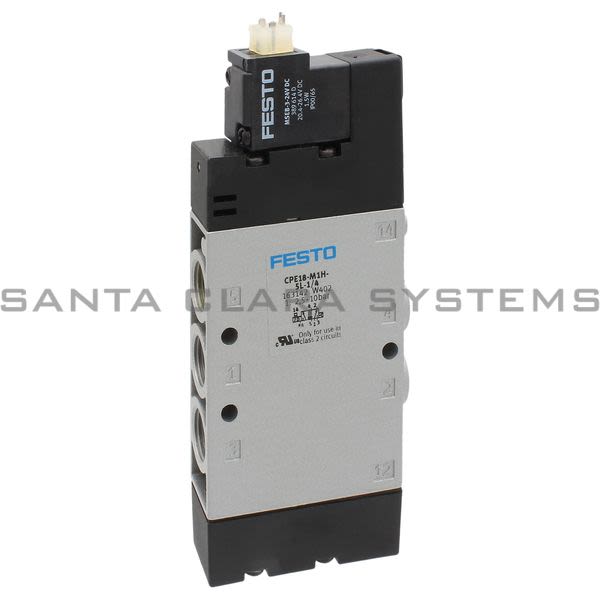

  • Festo CPE18-M1H-5L-1/4 Air Solenoid Valve Product Image

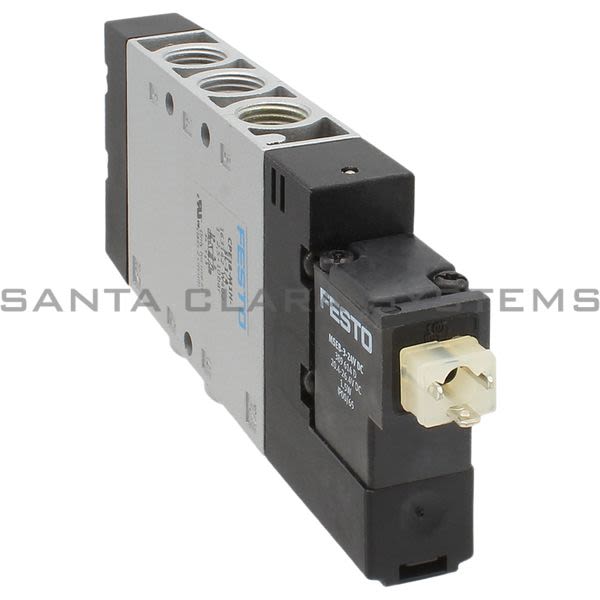

  • Festo CPE18-M1H-5L-1/4 Air Solenoid Valve Product Image
  • Festo CPE18-M1H-5L-1/4 Barcode

CPE18-M1H-5L-1-4

Product Summary:

  • Width: 18 mm
  • Ambient temperature: -5 C ...50 C
  • Electrical connection: Form C
  • Valve function: 5/2, monostable
  • Maritime classification: See certificate
Get a Quote

Current response time:

By 5AM PT on Wednesday
  • Description: Air Solenoid Valve
  • Width: 18 mm
  • Ambient temperature: -5 C ...50 C
  • Electrical connection: Form C
  • Valve function: 5/2, monostable
  • Maritime classification: See certificate
  • Lap: Overlap
  • Actuation type: Electrical
  • Standard nominal flow rate: 1500 l/min
  • Pneumatic working port: G1/4
  • Operating voltage: 24V DC
  • Operating pressure: 2.5 bar ...10 bar
  • Design: Piston gate valve
  • Reset method: Pneumatic spring
  • Degree of protection: IP65 With plug socket as per IEC 60529
  • Certification: c UL us - Recognized (OL)
  • Nominal width: 8 mm
  • Type code: CPE18
  • Exhaust air function: With flow control option
  • Sealing principle: Soft
  • Mounting position: Any
  • Manual override: Detenting via accessory Non-detenting
  • Type of control: Pilot-controlled
  • Pilot air supply port: Internal
  • Flow direction: Non-reversible
  • Symbol: 991023
  • Valve position ID: Label holder
  • Switching time off: 20 ms
  • On switching time: 26 ms
  • Duty cycle: 100%
  • Max. positive test pulse with 0 signal: 3300 s
  • Max. negative test pulse on 1 signal: 3100 s
  • Coil characteristics: 24 V DC: 1.5 W
  • Permissible voltage fluctuations: -1.5
  • Temperature of medium: -5 C ...50 C
  • Product weight: 220 g
  • Type of mounting: With through-hole
  • Pilot exhaust air port 82: M5
  • Pilot exhaust air port 84: M5
  • Pilot air port 12: M5
  • Pilot air port 14: M5
  • Pneumatic connection 1: G1/4
  • Pneumatic connection 2: G
  • Pneumatic connection 3: G1/4
  • Pneumatic connection 4: G1/4
  • Pneumatic connection 5: G1/4
  • Seals material: NBR
  • Housing material: Die-cast aluminum
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on CPE18-M1H-5L-1-4 . Santa Clara Systems carries 391 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.

Alternates

  • 163142
