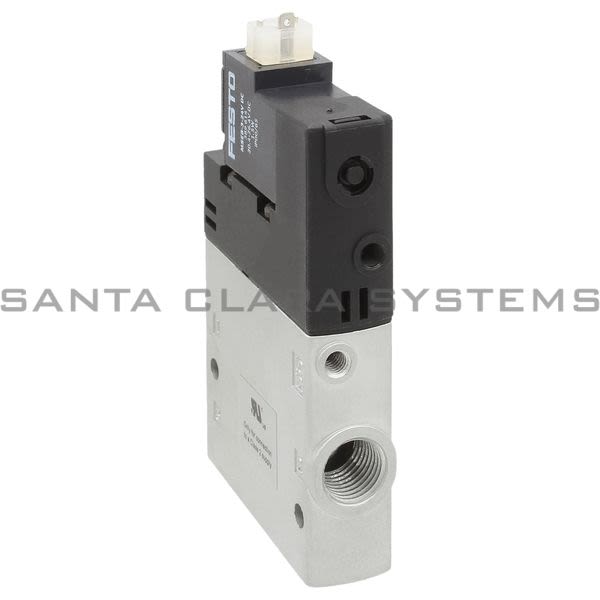

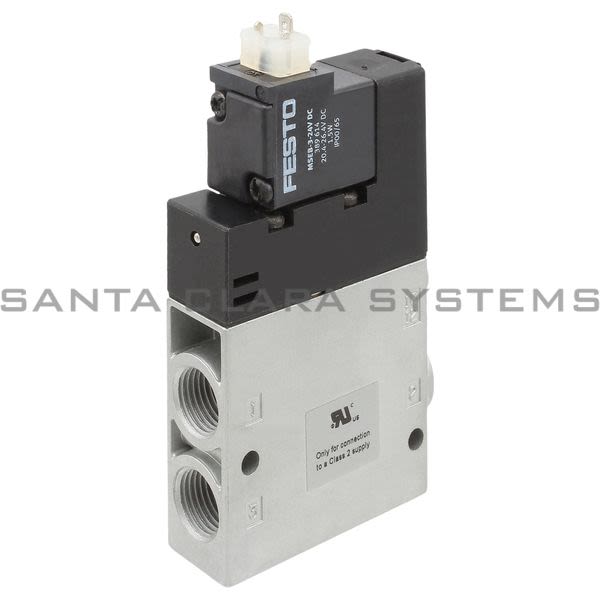

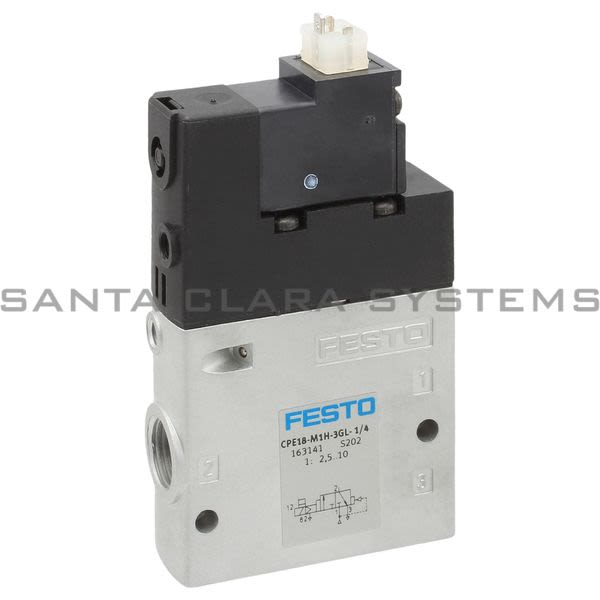

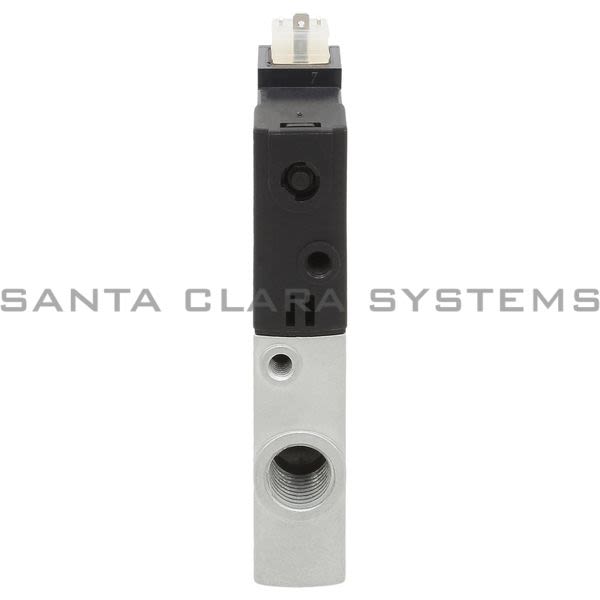

CPE18-M1H-3GL-1-4

Festo - Air Solenoid Valve

Current response time:

By 5AM PT on Tuesday

Emergency?

Description: Air Solenoid Valve
Width: 18 mm
Ambient temperature: -5 C ... 50 C
Electrical connection: Form C
Maritime classification: See certificate
Lap: Overlap
Actuation type: Electrical
Standard nominal flow rate: 1300 l/min
Pneumatic working port: G1/4
Operating voltage: 24V DC
Operating pressure: "2.5 bar ...
Design: Piston gate valve
Reset method: Pneumatic spring
Degree of protection: as per IEC 60529 With plug socket IP65
Certification: c UL us - Recognized (OL)
Nominal width: 8 mm
Type code: CPE18
Sealing principle: Soft
Mounting position: Any
Manual override: Detenting via accessory Non-detenting
Type of control: Pilot-controlled

Pilot air supply port: Internal
Flow direction: Non-reversible
Symbol: 991655
Valve position ID: Label holder
Switching time off: 18 ms
On switching time: 28 ms
Duty cycle: 1
Max. positive test pulse with 0 signal: 3300 s
Max. negative test pulse on 1 signal: 3100 s
Coil characteristics: 24 V DC: 1.5 W
Permissible voltage fluctuations: -1.5
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
Temperature of medium: -5 C ... 50 C
Product weight: 150 g
Type of mounting: With through-hole
Pilot exhaust air port 82: M5
Pilot air port 12: M5
Seals material: NBR
Housing material: Die-cast aluminum
Valve function: 3/2, closed, monostable

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on CPE18-M1H-3GL-1-4 . Santa Clara Systems carries 6,210 items from Festo.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
