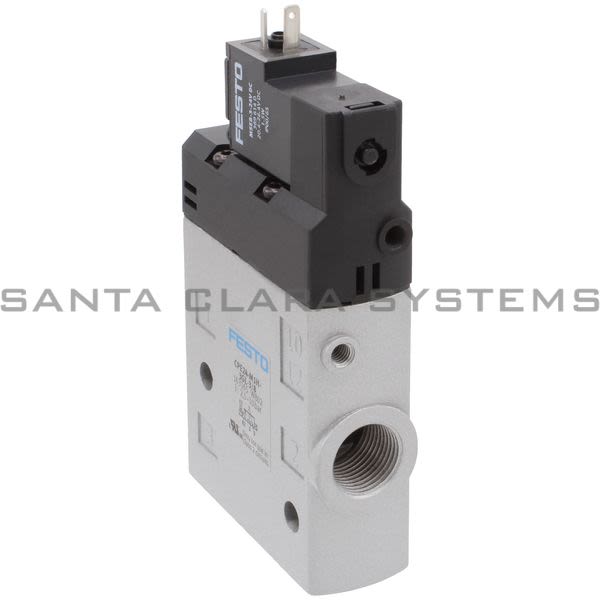

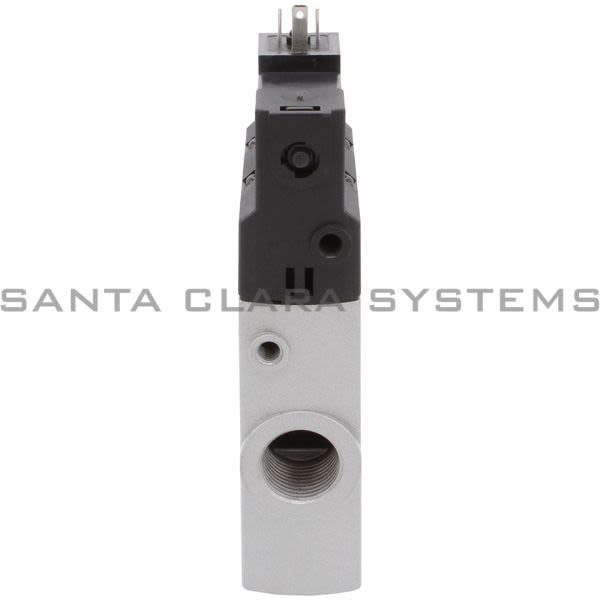

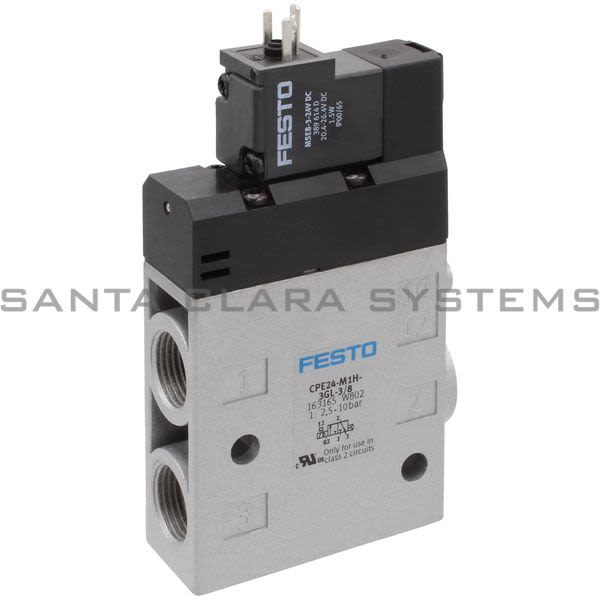

• Festo CPE24-M1H-3GL-3/8 Barcode

CPE24-M1H-3GL-3-8

Get a Quote

Current response time:

17 Minutes 22 Seconds
  • Description: Air Solenoid Valve
  • Width: 24 mm
  • Ambient temperature: -5 C ...50 C
  • Electrical connection: Form C
  • Permissible voltage fluctuations: -1.5
  • Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Valve function: 3/2, closed, monostable
  • Maritime classification: See certificate
  • Lap: Overlap
  • Actuation type: Electrical
  • Standard nominal flow rate: 2500 l/min
  • Pneumatic working port: G3/8
  • Operating voltage: 24V DC
  • Operating pressure: 2.5 bar ...10 bar
  • Design: Piston gate valve
  • Reset method: Pneumatic spring
  • Degree of protection: IP65 With plug socket as per IEC 60529
  • Certification: c UL us - Recognized (OL)
  • Nominal width: 11 mm
  • Type code: CPE24
  • Sealing principle: Soft
  • Mounting position: Any
  • Manual override: Detenting via accessory Non-detenting
  • Type of control: Pilot-controlled
  • Pilot air supply port: Internal
  • Flow direction: Non-reversible
  • Symbol: 991655
  • Valve position ID: Label holder
  • Switching time off: 33 ms
  • On switching time: 50 ms
  • Duty cycle: 100%
  • Max. positive test pulse with 0 signal: 3300 s
  • Max. negative test pulse on 1 signal: 3100 s
  • Coil characteristics: 24 V DC: 1.5 W
  • Corrosion resistance class (CRC): 2 - Moderate corrosion stress
  • Temperature of medium: -5 C ...50 C
  • Product weight: 220 g
  • Type of mounting: With through-hole
  • Pilot exhaust air port 82: M5
  • Pilot air port 12: M5
  • Pneumatic connection 1: G3/8
  • Pneumatic connection 2: G3/8
  • Pneumatic connection 3: G3/8
  • Seals material: NBR
  • Housing material: Die-cast aluminum
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on CPE24-M1H-3GL-3-8 . Santa Clara Systems carries 2,816 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
