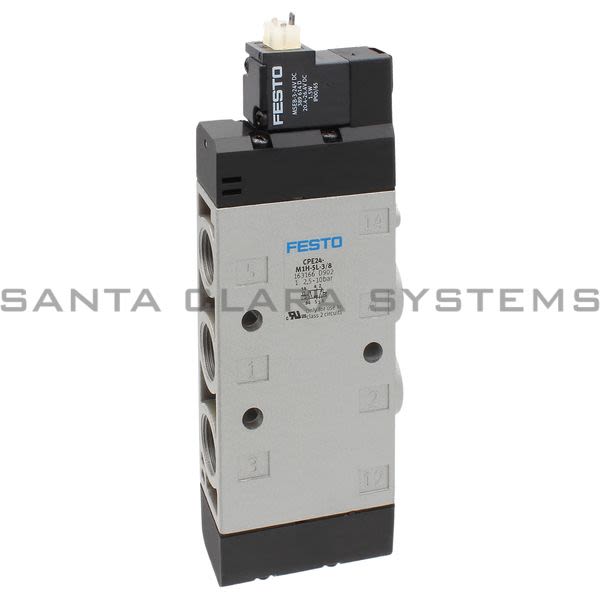

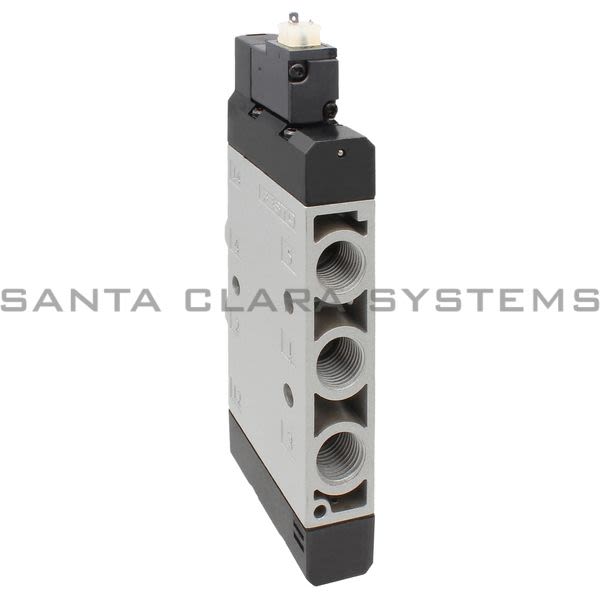

CPE24-M1H-5L-3-8

Festo - Air Solenoid Valve

Current response time:

11 Minutes 34 Seconds

Description: Air Solenoid Valve
Width: 24 mm
Ambient temperature: -5 C ...50 C
Electrical connection: Form C
Valve function: 5/2 monostable
Maritime classification: See certificate
Lap: Overlap
Actuation type: Electrical
Standard nominal flow rate: 2900 l/min
Pneumatic working port: G3/8
Operating voltage: 24V DC
Operating pressure: 2.5 bar ...10 bar
Design: Piston gate valve
Reset method: Pneumatic spring
Degree of protection: IP65 With plug socket as per IEC 60529
Certification: c UL us - Recognized (OL)
Nominal width: 11 mm
Type code: CPE24
Exhaust air function: With flow control option
Sealing principle: Soft
Mounting position: Any
Manual override: Detenting via accessory Non-detenting
Type of control: Pilot-controlled

Pilot air supply port: Internal
Flow direction: Non-reversible
Symbol: 991023
Valve position ID: Label holder
Switching time off: 50 ms
On switching time: 40 ms
Duty cycle: 100%
Max. positive test pulse with 0 signal: 3300 s
Max. negative test pulse on 1 signal: 3100 s
Temperature of medium: -5 C ...50 C
Product weight: 360 g
Type of mounting: With through-hole
Pilot exhaust air port 82: M5
Pilot exhaust air port 84: M5
Pilot air port 12: M5
Pilot air port 14: M5
Pneumatic connection 1: G3/8
Pneumatic connection 2: G3/8
Pneumatic connection 3: G3/8
Pneumatic connection 4: G3/8
Pneumatic connection 5: G3/8
Seals material: NBR
Housing material: Die-cast aluminum
