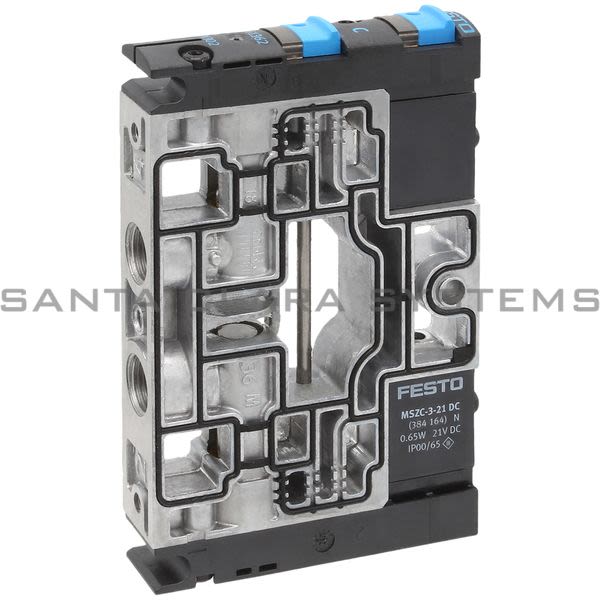

• Festo CPV14-M1H-2X3-GLS-1/8 Air Solenoid Valve Product Image

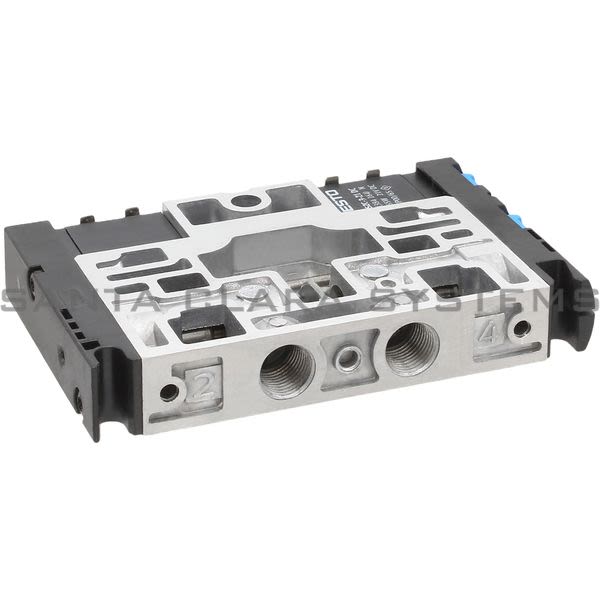

  • Festo CPV14-M1H-2X3-GLS-1/8 Air Solenoid Valve Product Image

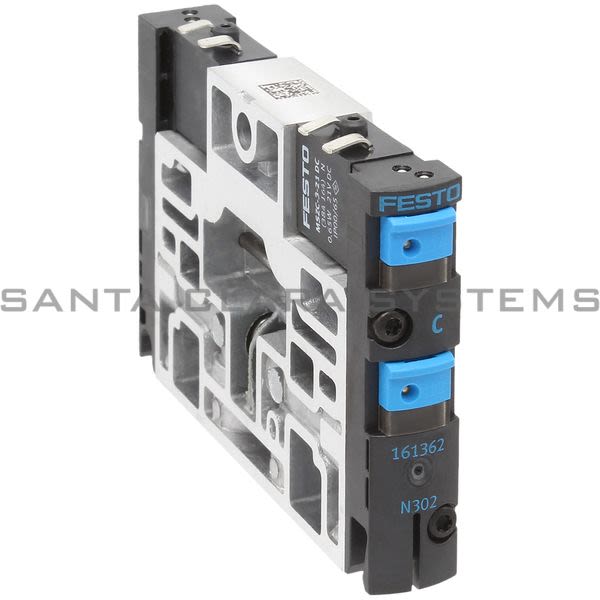

  • Festo CPV14-M1H-2X3-GLS-1/8 Air Solenoid Valve Product Image

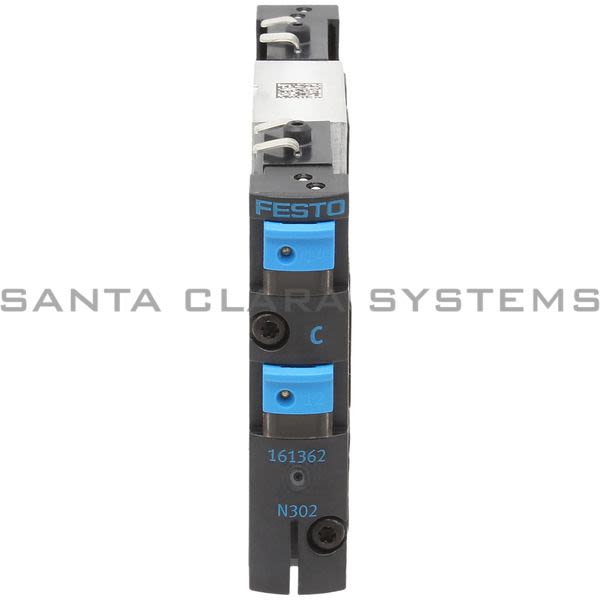

  • Festo CPV14-M1H-2X3-GLS-1/8 Air Solenoid Valve Product Image
  • Festo CPV14-M1H-2X3-GLS-1/8 Barcode

CPV14-M1H-2X3-GLS-1-8

Product Summary:

  • Ambient temperature: -5 C ...50 C
  • Valve function: 3/2 closed monostable
  • Lap: Overlap
  • Actuation type: Electrical
  • Valve size: 14 mm
Get a Quote

Current response time:

By 5AM PT on Tuesday
  • Description: Air Solenoid Valve
  • Ambient temperature: -5 C ...50 C
  • Valve function: 3/2 closed monostable
  • Lap: Overlap
  • Actuation type: Electrical
  • Valve size: 14 mm
  • Standard nominal flow rate: 800 l/min
  • Pneumatic working port: G1/8
  • Operating voltage: 24V DC
  • Operating pressure: -0.9 bar ...10 bar
  • Design: Piston gate valve
  • Reset method: Pneumatic spring
  • Degree of protection: IP65
  • Nominal width: 6 mm
  • Type code: CPV14
  • Exhaust air function: Without flow control option
  • Sealing principle: Soft
  • Mounting position: Any
  • Manual override: Detenting Non-detenting
  • Type of control: Pilot-controlled
  • Pilot air supply port: External Internal
  • Flow direction: Non-reversible
  • Symbol: 991808
  • Pilot pressure: 3 bar ...8 bar
  • B-value: 0.42
  • C value: 3.2 l/sbar
  • Switching time off: 30 ms
  • On switching time: 24 ms
  • Duty cycle: 100% in combination with holding current reduction through
  • Storage temperature: -20 C ...40 C
  • Temperature of medium: -5 C ...50 C
  • Product weight: 120 g
  • Type of mounting: With through-hole
  • Pilot air port 12/14: Common port
  • Pilot exhaust air port 82/84: Common port
  • Pneumatic connection 1: Common port
  • Pneumatic connection 11: Common port
  • Pneumatic connection 2: G1/8
  • Pneumatic port 3/5 combined: Common port
  • Pneumatic connection 4: G1/8
  • Seals material: HNBR NBR
  • Housing material: Steel PPS Die-cast aluminum POM Brass
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on CPV14-M1H-2X3-GLS-1-8 . Santa Clara Systems carries 1,027 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.

Alternates

  • 161362
