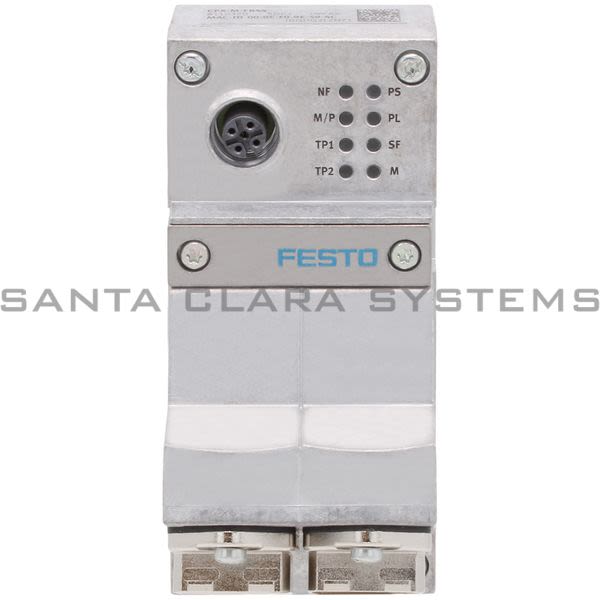

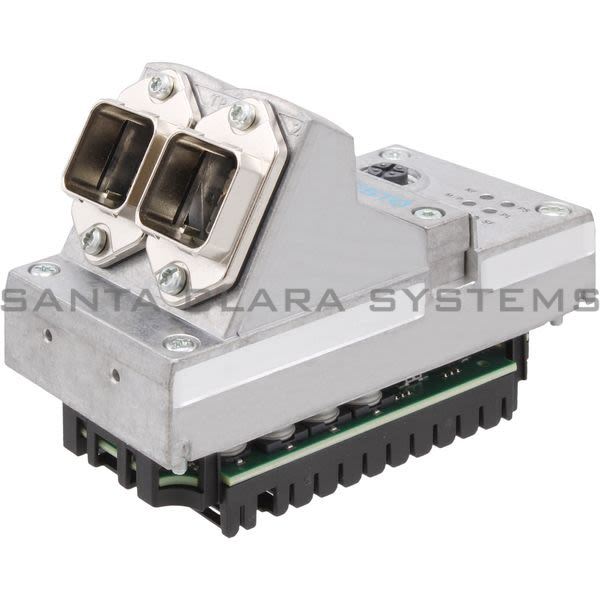

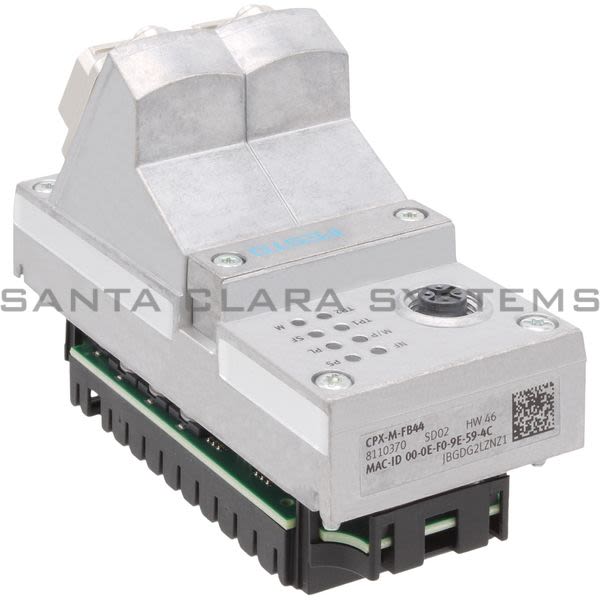

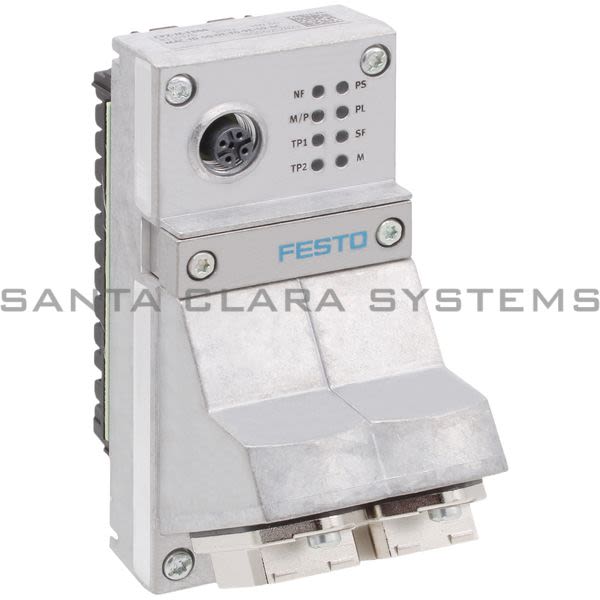

CPX-M-FB44

Festo - Interface

Current response time:

By 5AM PT on Thursday

Emergency?

Description: Interface
Ambient temperature: -5 °C ... 50 °C
Protocol: PROFINET IRT - PROFINET RT
Dimensions W x L x H: (incl. interlinking block) 50 mm x 107 mm x 80 mm
Product weight: 280 g
Storage temperature: -20 °C ... 70 °C
Degree of protection: IP65 - IP67
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Certification: RCM compliance mark
Housing material: Die-cast aluminum
LED display (product-specific): M: Modify, parameterization - PL: load supply - PS: electronics supply, sensor supply - SF: system fault
LED display (bus-specific): M/P: maintenance/PROFIenergy - NF: network fault - TP1: network active port 1 - TP2: network active, port 2

Device-specific diagnostics: Channel-oriented and module-oriented diagnostics - Undervoltage of modules - Diagnostic memory
Control elements: DIL switch
Fieldbus interface: 2x RJ45 push-pull socket, AIDA
Max. address capacity inputs: 64 byte
Max. address capacity outputs: 64 byte
Parameterization: Diagnostic behavior - Fail-safe response - forcing of channels - Signal setup - System parameter
Baud rate: 100 Mbit/s
Configuration support: GSDML file
Additional functions: Acyclic data access via fieldbus Acyclic data access via Ethernet Fast start-up (FSU) I&M Channel-based diagnostics via fieldbus LLDP MQTT MRP MRPD PROFIenergy PROFIsafe S2 system redundancy Start-up parameterization in plain text via fieldbus System status can be indicated via process data Additional diagnostic interface for operator units
DC operating voltage range: 18 V ... 30 V
Nominal operating voltage DC: 24 V
Intrinsic current consumption at nominal operating voltage: Typ. 70 mA
