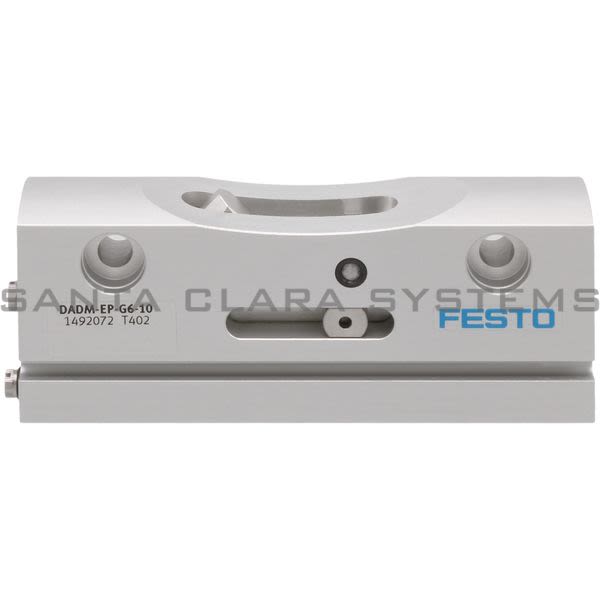

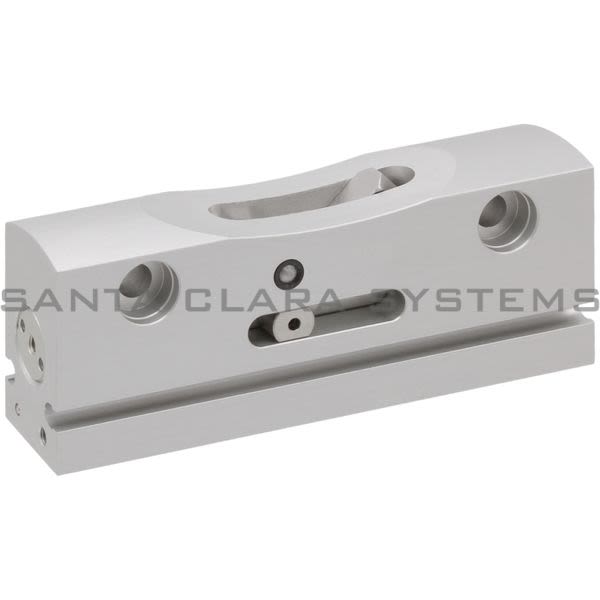

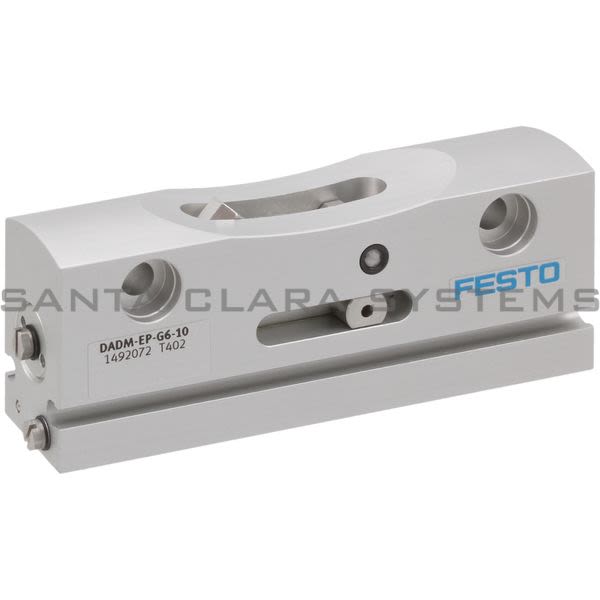

DADM-EP-G6-10

Festo - Intermediate Position Module

Product Summary:

Size: 10
Ambient temperature: 0 °C ... 60 °C
Mounting position: Any
Structural design: Positively driven motion sequence
Position sensing: For proximity sensor

Current response time:

6 Minutes 49 Seconds

Description: Intermediate Position Module
Size: 10
Ambient temperature: 0 °C ... 60 °C
Mounting position: Any
Structural design: Positively driven motion sequence
Position sensing: For proximity sensor
Symbol: 00991270
Operating pressure: 3 bar ... 6 bar
Max. impact velocity: 0.8 m/s
Maximum pivot time: 150 ms
Repetition accuracy: ±0.02 mm

Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Max. stop force: 500 N
Product weight: 154 g
Type of mounting: Via through-hole and centering sleeve
Pneumatic connection: M3
Seals material: PU
Housing material: Wrought aluminum alloy
Lever material: High-alloy stainless steel
