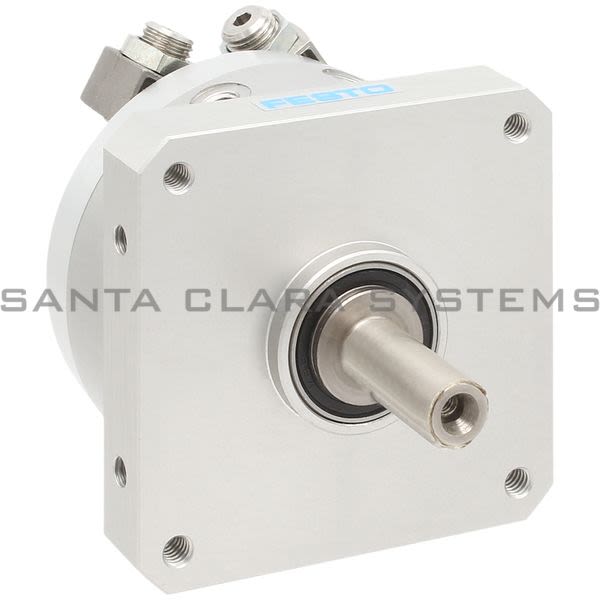

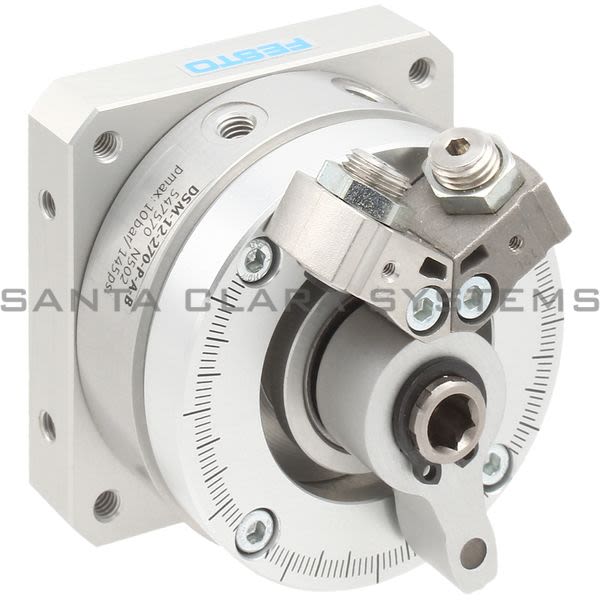

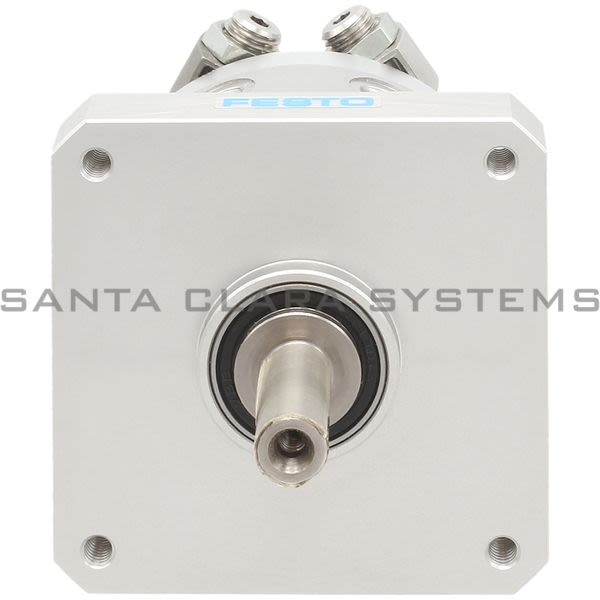

- Description: Rotary Actuator
- Size: 12
- Ambient temperature: -10 C ... 60 C
- Cushioning angle: 1.8 deg
- Adjustment range of swivel angle: 0 deg ... 270 deg
- Swivel angle: 0 deg ... 270 deg
- Cushioning: Elastic cushioning rings/pads at both ends
- Mounting position: Any
- Precision adjustment: -6 deg
- Mode of operation: Double-acting
- Structural design: Rotary vane
- Position sensing: For proximity sensor
- Symbol: 00991265
- Operating pressure: 0.2 MPa ... 1 MPa - 2 bar ... 10 bar
- Max. swivel frequency at 6 bar: 2 Hz
- Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC): 0 - No corrosion stress
- LABS (PWIS) conformity: VDMA24364-B1/B2-L
- Cleanroom class: Class 6 according to ISO 14644-1
- Max. axial force: 18 N
- Max. radial force: 45 N
- Theoretical torque at 6 bar: 1.25 Nm
- Permissible mass moment of inertia: 0.005 kgm
- Product weight: 275 g
- Type of mounting: With internal thread
- Pneumatic connection: M5
- Drive shaft material: Steel Nickel-plated
- Seals material: TPE-U(PU)
- Housing material: Wrought aluminum alloy
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on DSM-12-270-P-A-B . Santa Clara Systems carries 6,210 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
