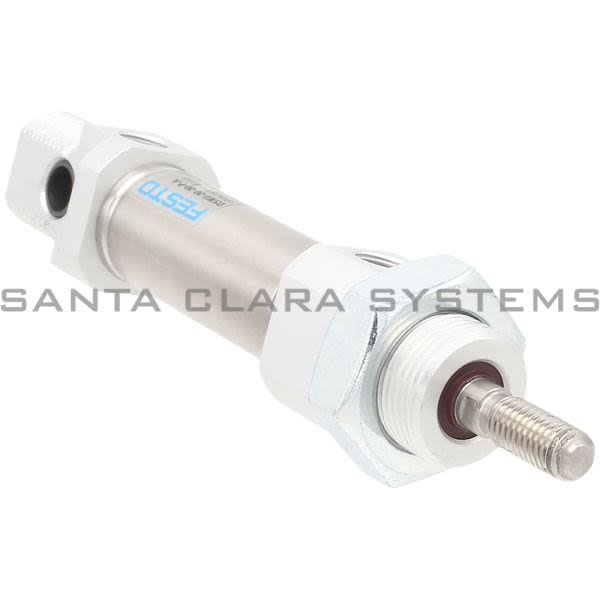

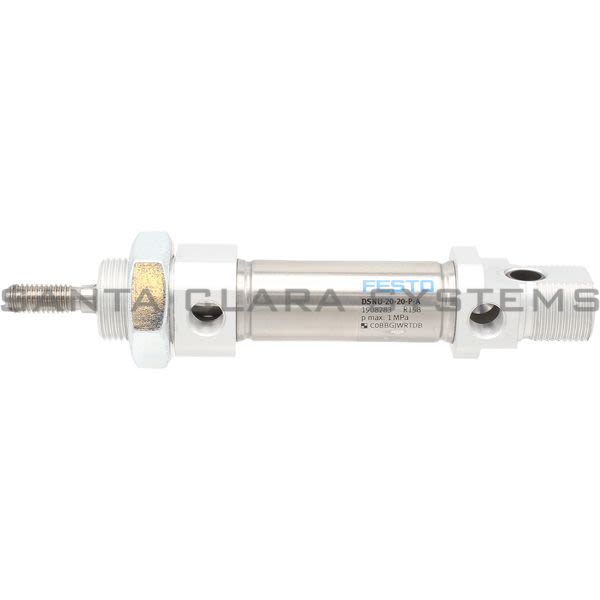

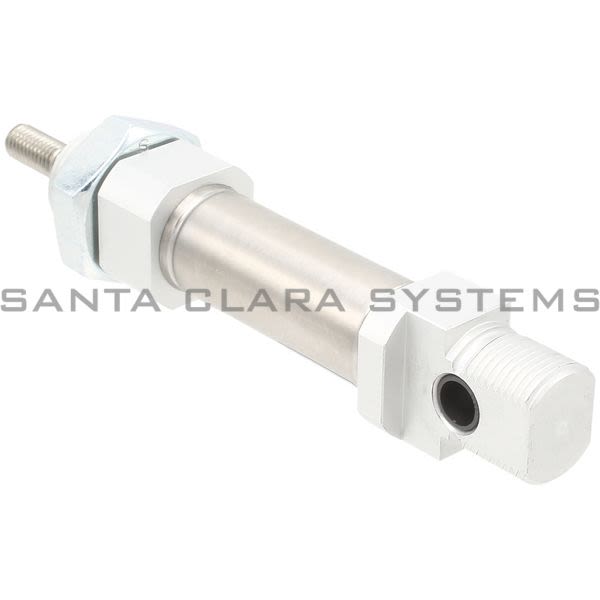

- Description: ISO Cylinder
- Ambient temperature: -20 C ... 80 C
- Stroke: 20 mm
- Piston diameter: 20 mm
- Piston rod thread: M8
- Cushioning: Elastic cushioning rings/pads at both ends
- Mounting position: Any
- Conforms to standard: CETOP RP 52 P, ISO 6432
- Piston rod end: External thread
- Structural design: Piston, Piston rod, Cylinder barrel
- Symbol: 00991217
- Variants: Piston rod at one end
- Operating pressure: 0.1 MPa ... 1 MPa, 1 bar ... 10 bar
- Mode of operation: Double-acting
- Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC): 2 - Moderate corrosion stress
- LABS (PWIS) conformity: VDMA24364-B1/B2-L
- Cleanroom class: Class 6 according to ISO 14644-1
- Impact energy in the end positions: 0.2 J
- Theoretical force at 6 bar, retracting: 158.3 N
- Theoretical force at 6 bar, advancing: 188.5 N
- Moving mass at 0 mm stroke: 44 g
- Additional moving mass per 10 mm stroke: 4 g
- Basic weight with 0 mm stroke: 186.8 g
- Additional weight per 10 mm stroke: 7.2 g
- Type of mounting: With accessories
- Pneumatic connection: G1/8
- Cover material: Wrought aluminum alloy, Plain anodized
- Seals material: NBR, TPE-U(PU)
- Piston rod material: High-alloy stainless steel
- Material of cylinder barrel: High-alloy stainless steel
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on DSNU-20-20-P-A . Santa Clara Systems carries 5,560 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
