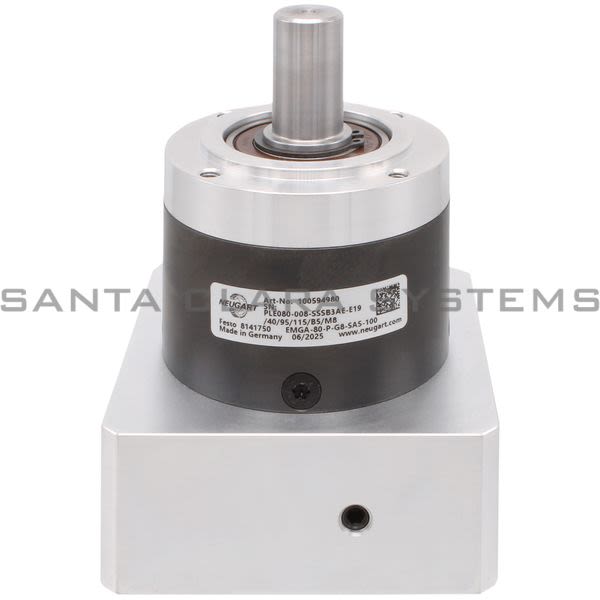

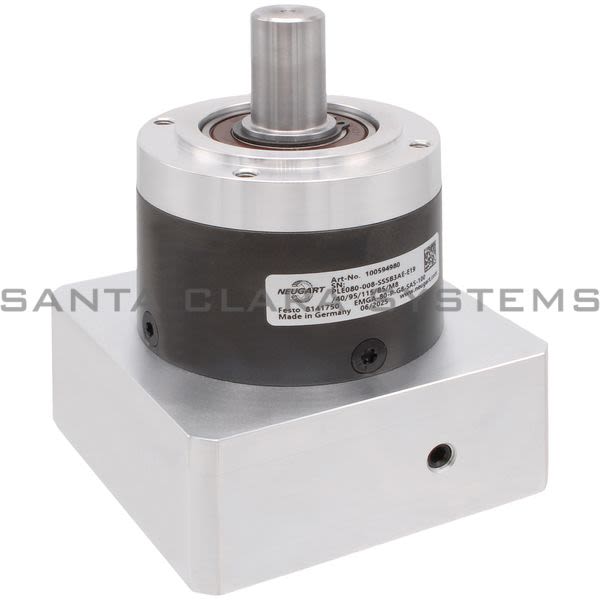

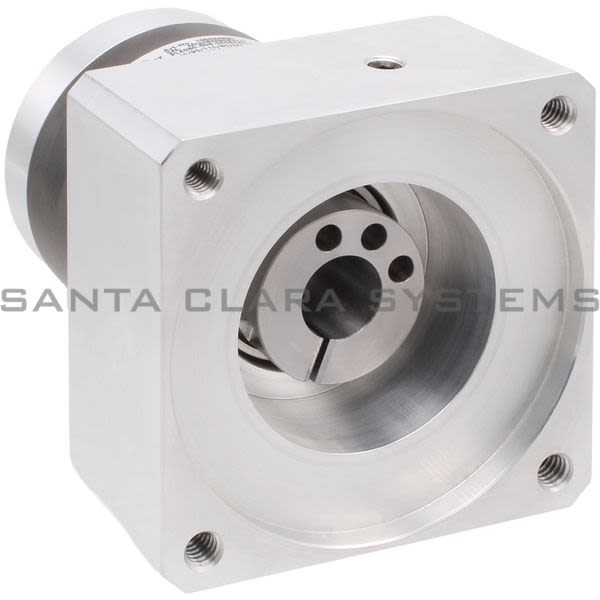

- Description: Gearbox
- Gearbox flange size: 80 mm
- Motor flange size: 100 mm
- Torsional backlash: 0.12 deg
- Gearbox type: Planetary gear
- Gear ratio: 8:1
- Max. actuator speed: 7000 rpm
- Gearbox operating temperature: -25 °C ... 90 °C
- LABS (PWIS) conformity: VDMA24364-B2-L
- Degree of protection: IP54
- Continuous output torque: 50 Nm
- Mass moment of inertia, gearbox: 0.37 kgcm²
- Max. output torque: 80 Nm
- 80 Nm: 97 %
- Torsional rigidity: 8.4 Nm/arcmin
- Product weight: 2300 g
- Gearbox interface, output shaft: 80G
- Gearbox interface, actuator: 100A
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on EMGA-80-P-G8-SAS-100 . Santa Clara Systems carries 9,465 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
