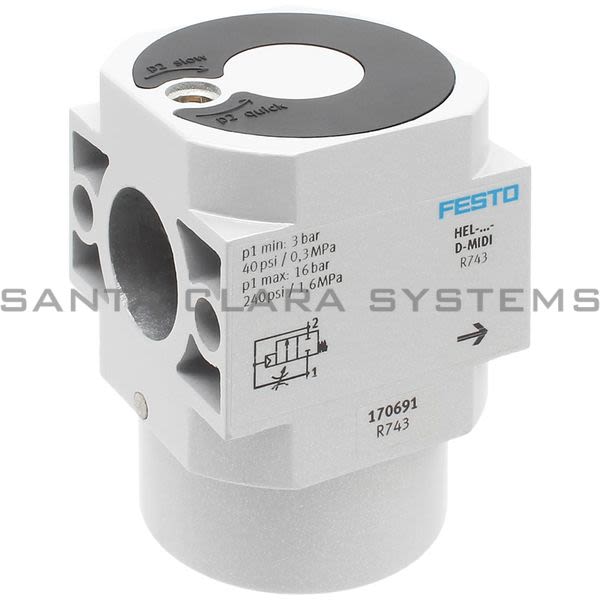

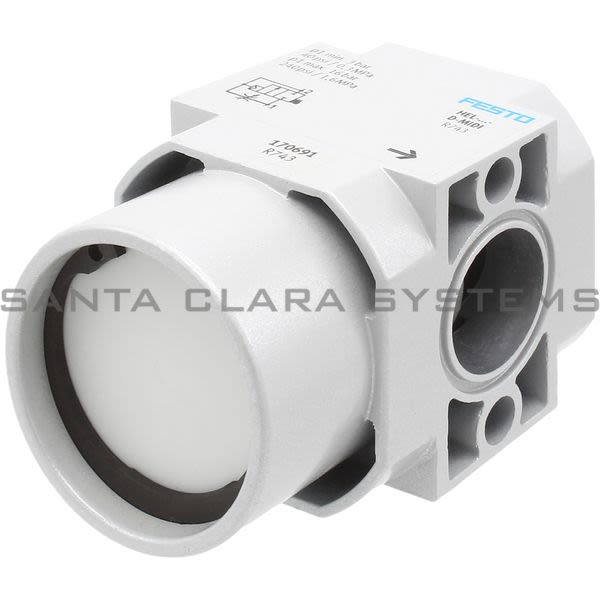

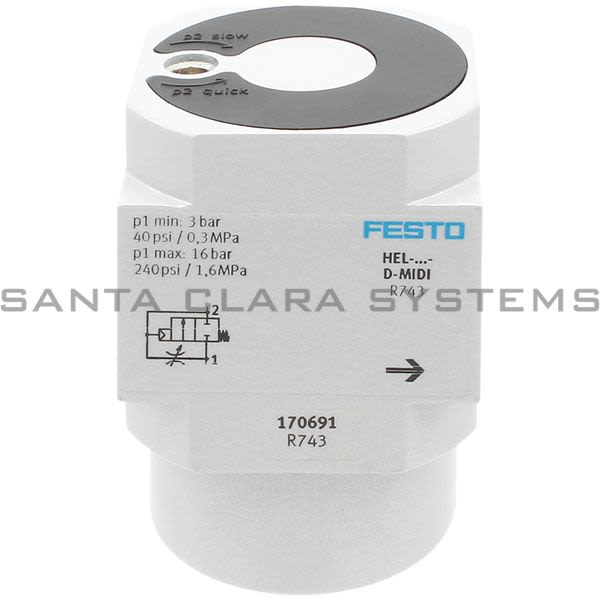

- Description: Shut Off Valve
- Ambient temperature: -10 C ...60 C
- Maritime classification: See certificate
- Type code: HEL
- Exhaust air function: With flow control option
- Actuation type: Pneumatic
- Sealing principle: Soft
- Mounting position: Any
- Manual override: None
- Design: Piston gate valve
- Reset method: Mechanical spring
- Type of control: Direct
- Flow direction: Non-reversible
- Symbol: 991513
- Valve function: 2/2, closed, monostable
- Operating pressure: 3 bar ...16 bar
- Operating medium: Inert gas Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC): 2 - Moderate corrosion stress
- Air quality class at the output: Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
- Temperature of medium: -10 C ...60 C
- Product weight: 270 g
- Type of mounting: Line installation
- Seals material: NBR
- Housing material: Die-cast aluminum
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on HEL-D-MIDI . Santa Clara Systems carries 5,560 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
Alternates
- 170691
