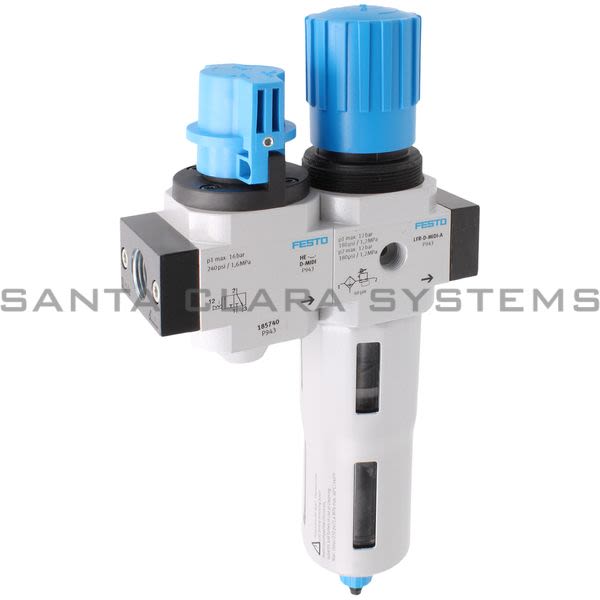

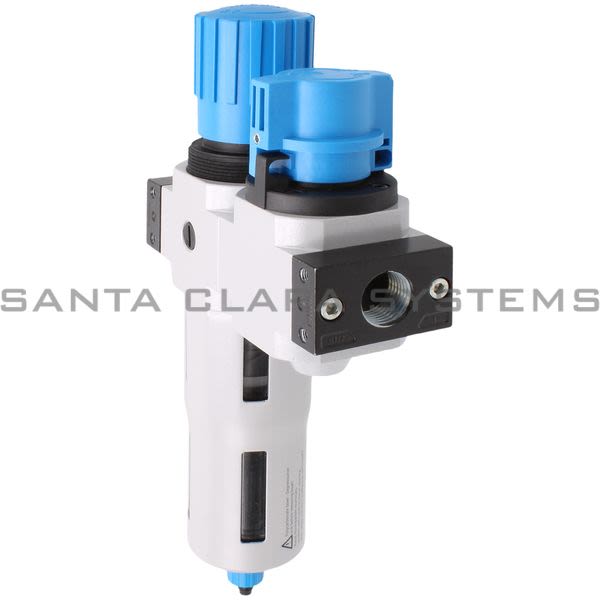

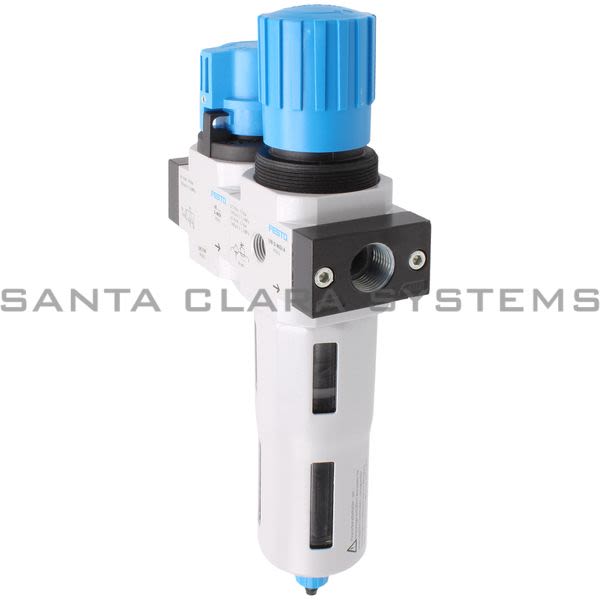

LFR-1-2-D-MIDI-KC-A

Festo - Air Preparation Unit

Product Summary:

Size: Midi
Ambient temperature: -10 °C ... 60 °C
Series: D
Actuator lock: Rotary knob with detent
Mounting position: Vertical +/- 5°

Current response time:

9 Minutes 35 Seconds

Description: Air Preparation Unit
Size: Midi
Ambient temperature: -10 °C ... 60 °C
Series: D
Actuator lock: Rotary knob with detent
Mounting position: Vertical +/- 5°
Grade of filtration: 40 µm
Condensate drain: Fully automatic
Structural design: Shut off valve Filter regulator with pressure gauge
Max. condensate volume: 43 ml
Bowl guard: Metal bowl guard
Symbol: 00991554
Pressure gauge: With pressure gauge
Operating pressure: 0.2 MPa ... 1.2 MPa, 2 bar ... 12 bar, 29 psi ... 174 psi
Pressure regulation range MPa: 0.05 MPa ... 1.2 MPa

Pressure regulation range: 0.5 bar ... 12 bar
Pressure regulation range psi: 7.25 psi ... 174 psi
Max. pressure hysteresis: 0.02 MPa, 0.2 bar, 2.9 psi
Standard nominal flow rate: 3150 l/min
Operating medium: Compressed air as per ISO 8573-1:2010 [-:-:-] Inert gas
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Air quality class at the output: Compressed air as per ISO 8573-1:2010 [7:8:4] Inert gas
Temperature of medium: -10 °C ... 60 °C
Product weight: 1600 g
Type of mounting: Optionally: Line installation With accessories
Pneumatic connection 1: G1/2
Pneumatic connection 2: G1/2
Housing material: Die-cast zinc
Material of bowl: PC
