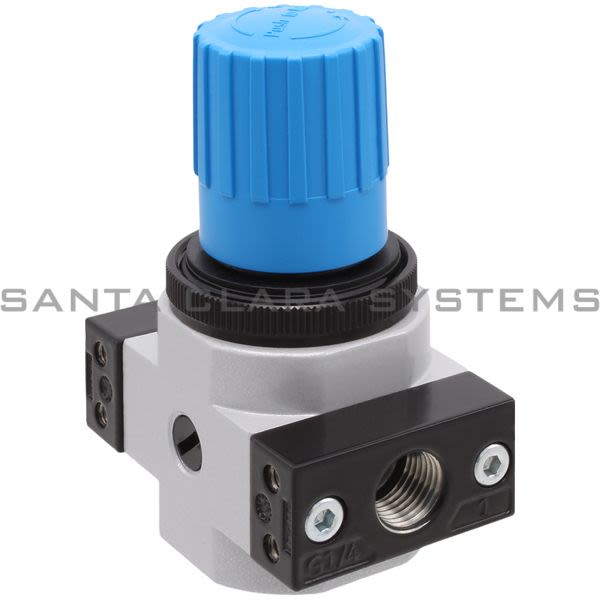

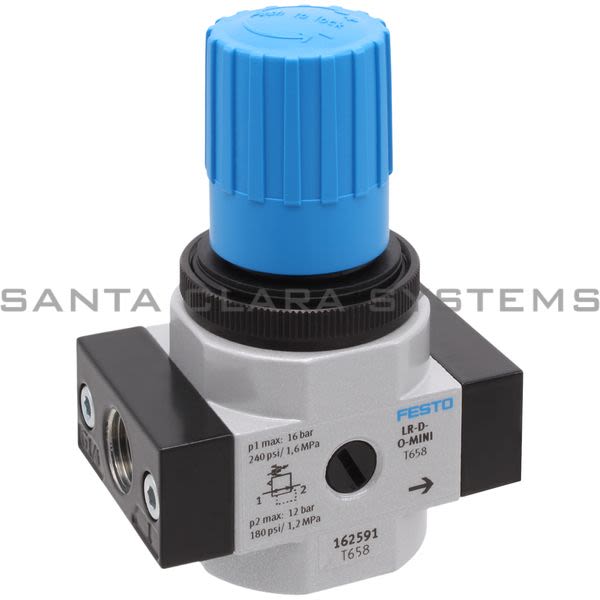

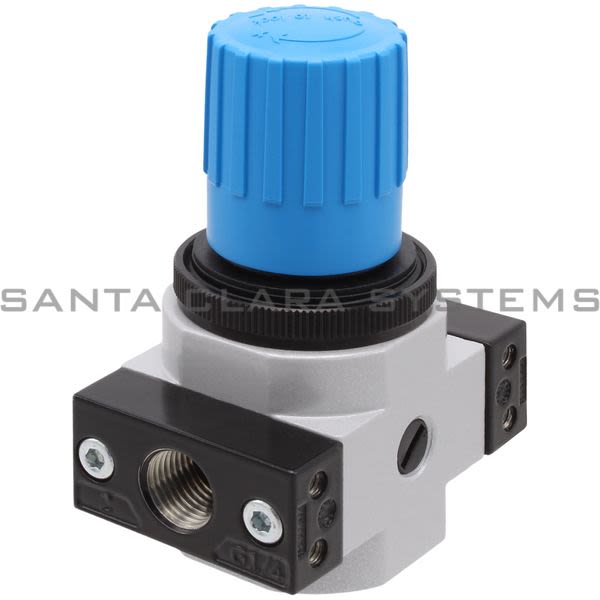

LR-1-4-D-O-MINI
Product Summary:
- Size: Mini
- Ambient temperature: -10 °C ... 60 °C
- Series: D
- Actuator lock: Rotary knob with detent
- Mounting position: Any
Get a Quote
Current response time:
14 Minutes 43 Seconds
- Description: Pressure Regulator
- Size: Mini
- Ambient temperature: -10 °C ... 60 °C
- Series: D
- Actuator lock: Rotary knob with detent
- Mounting position: Any
- Structural design: Directly controlled diaphragm regulator
- Controller function: Outlet pressure constant - With primary pressure compensation - With secondary exhausting
- Symbol: 00991540
- Pressure gauge: G1/8 prepared
- Operating pressure: 0.1 MPa ... 1.6 MPa - 1 bar ... 16 bar - 0.5 bar ... 12 bar
- Max. pressure hysteresis: 0.02 MPa - 0.2 bar - 2.9 psi
- Normal nominal flow rate (normalized to DIN 1343): 1500 l/min
- Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
- Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC): 2 - Moderate corrosion stress
- LABS (PWIS) conformity: VDMA24364-B1/B2-L
- Air quality class at the output: Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
- Temperature of medium: -10 °C ... 60 °C
- Type of mounting: Line installation - With accessories
- Pneumatic connection 1: G1/4
- Pneumatic connection 2: G1/4
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on LR-1-4-D-O-MINI . Santa Clara Systems carries 9,904 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
