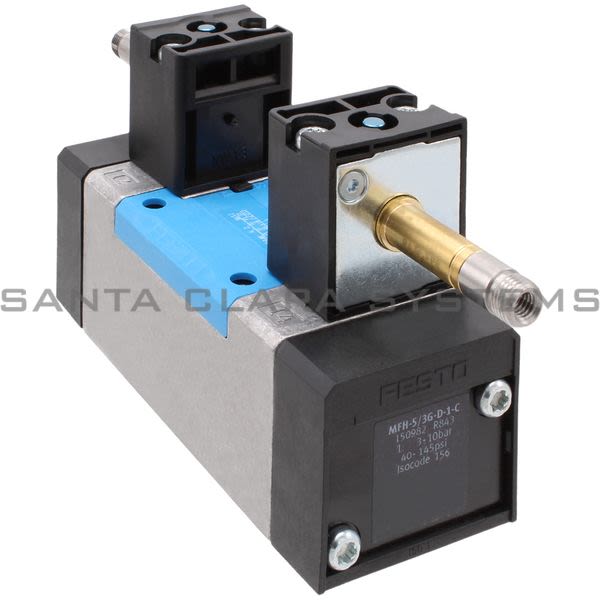

• Festo MFH-5/3G-D-1-C Air Solenoid Valve Product Image

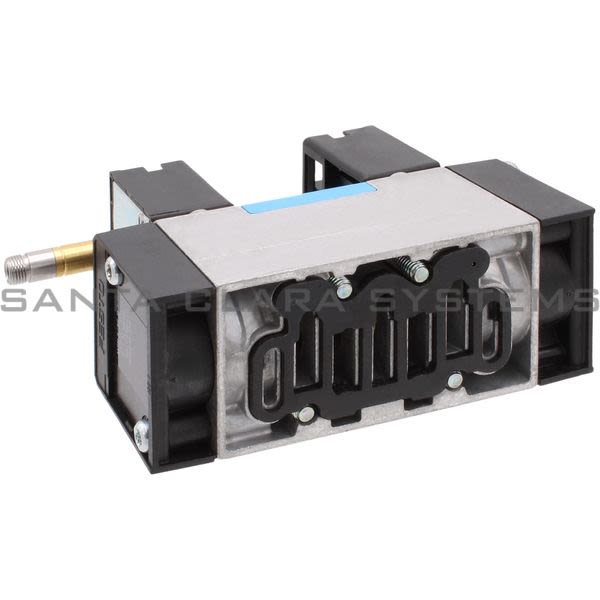

  • Festo MFH-5/3G-D-1-C Air Solenoid Valve Product Image

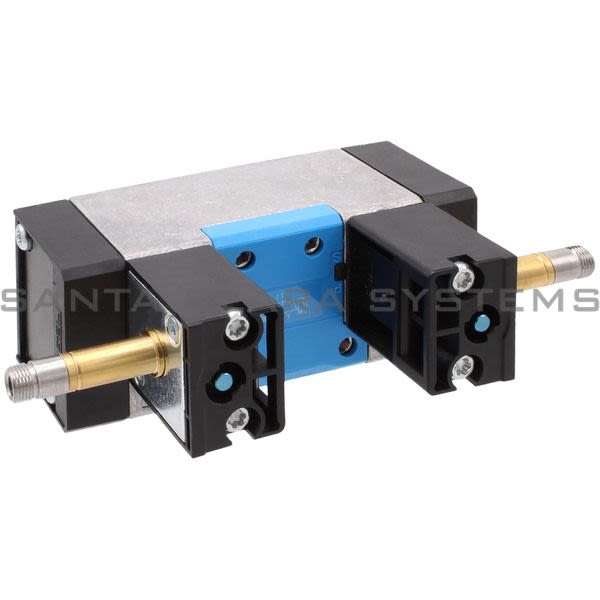

  • Festo MFH-5/3G-D-1-C Air Solenoid Valve Product Image
  • Festo MFH-5/3G-D-1-C Barcode

MFH-5-3G-D-1-C

Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: Air Solenoid Valve
  • Width: 42 mm
  • Ambient temperature: -5 C ... 40 C
  • Electrical connection: Via F coil, to be ordered separately
  • Valve function: 5/3, closed
  • Actuation type: Electrical
  • Standard nominal flow rate: 1200 l/min
  • Pneumatic working port: Sub-base, size 1 according to ISO 5599-1 G1/4
  • Operating voltage: Via solenoid coil, to be ordered separately
  • Operating pressure: 0.3 MPa ... 1 MPa - 3 bar ... 10 bar
  • Structural design: Piston gate valve
  • Reset method: Mechanical spring
  • Maritime classification: See certificate
  • Certificate issuing authority: DNV-TAA000032X
  • Degree of protection: IP65
  • Nominal width: 8 mm
  • Width dimension: 43 mm
  • Exhaust air function: With flow control option
  • Sealing principle: Soft
  • Mounting position: Any
  • Conforms to standard: ISO 5599-1
  • Manual override: Detenting via accessory Non-detenting
  • ISO code: 156
  • Type of control: Pilot-controlled
  • Pilot air supply port: Internal
  • Flow direction: Non-reversible
  • Symbol: 00991080
  • Lap: Overlap
  • Switching time off: 35 ms
  • On switching time: 18 ms
  • Max. positive test pulse with 0 signal: 2200 s
  • Max. negative test pulse on 1 signal: 3700 s
  • Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
  • Vibration resistance: Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6
  • Shock resistance: Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Temperature of medium: -10 C ... 60 C
  • Noise level: 85 dB(A)
  • Pilot medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Product weight: 520 g
  • Type of mounting: On sub-base With through-hole
  • Pilot air port 12: Sub-base, size 1 as per ISO 5599-1
  • Pilot air port 14: Sub-base, size 1 as per ISO 5599-1
  • Pneumatic connection 1 - 5: Sub-base, size 1 as per ISO 5599-1
  • Seals material: HNBR NBR
  • Housing material: Die-cast aluminum
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on MFH-5-3G-D-1-C . Santa Clara Systems carries 5,553 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
