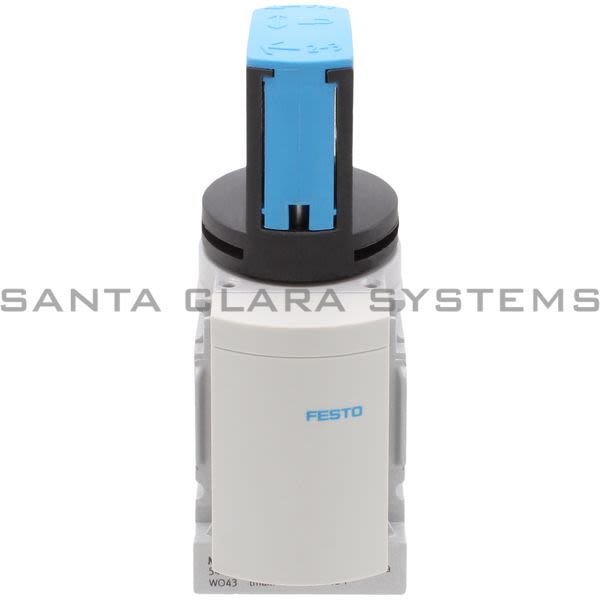

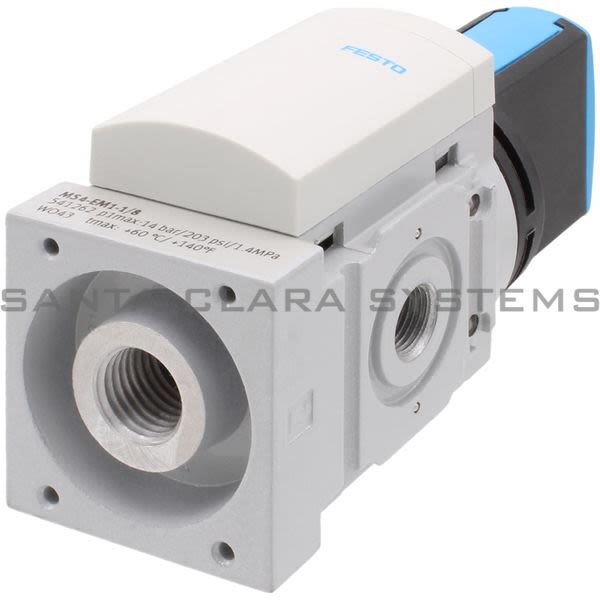

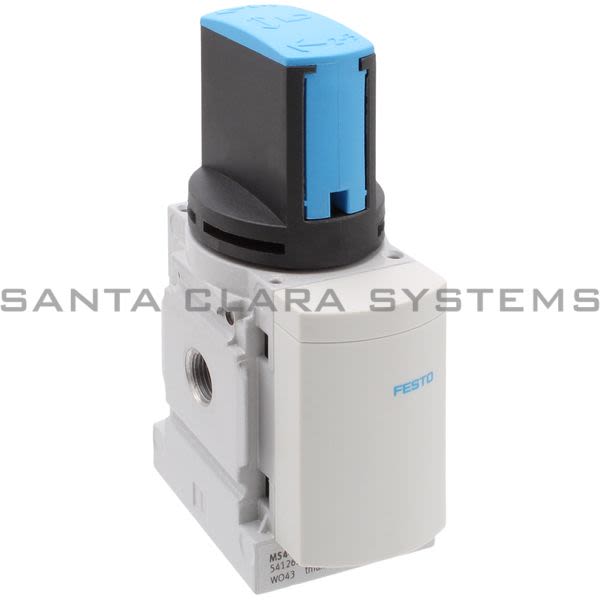

- Description: Shut Off Valve
- Ambient temperature: -10 °C ... 60 °C
- Structural design: Structural design
- Actuation type: Manual
- Exhaust air function: Without flow control option
- Type of control: Direct
- Symbol: 00991670
- Valve function: 3/2, bistable
- Operating pressure: 0 bar ... 14 bar
- C value: 4.6 l/sbar
- B-value: 0.51
- Standard nominal flow rate: 1200 l/min
- Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4] - Inert gas
- Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC): 2 - Moderate corrosion stress
- LABS (PWIS) conformity: VDMA24364-B1/B2-L
- Temperature of medium: -10 °C ... 60 °C
- For use in the food industry: See supplementary material information
- Type of mounting: Optionally: Line installation - With accessories
- Mounting position: Any
- Flow direction: Non-reversible
- Product weight: 190 g
- Pneumatic connection 1: G1/8
- Pneumatic connection 2: G1/8
- Pneumatic connection 3: G1/4
- Seals material: TPE-U(PU)
- Housing material: Die-cast aluminum
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on MS4-EM1-1-8 . Santa Clara Systems carries 7,168 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
