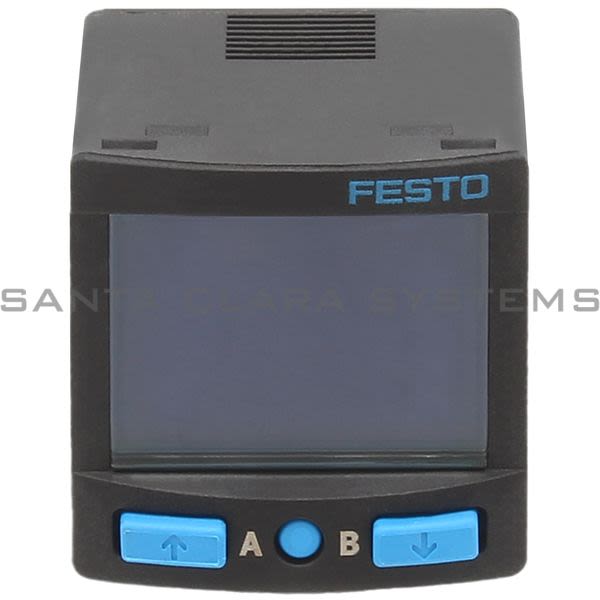

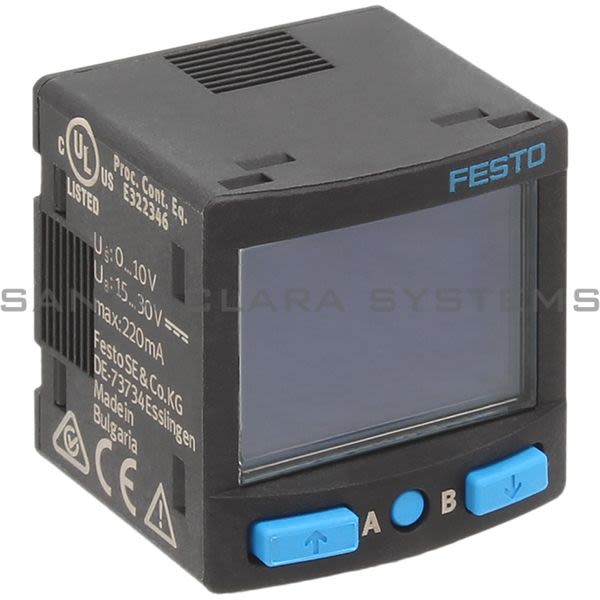

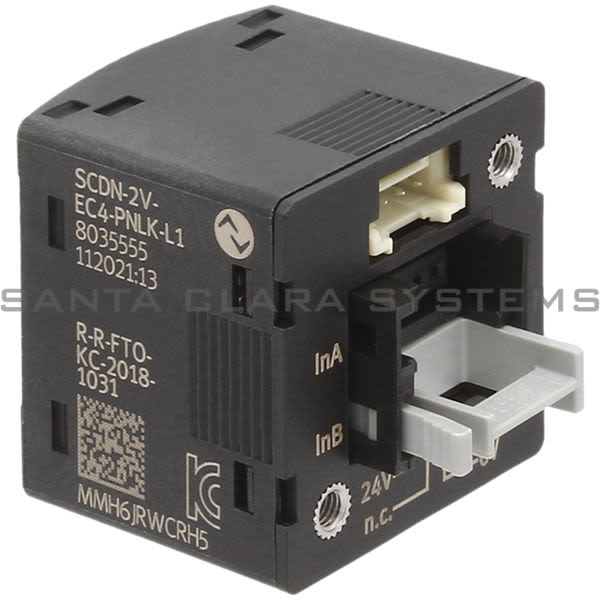

SCDN-2V-EC4-PNLK-L1

Festo - Signal Conditioner

Product Summary:

Type code: SCDN
Electrical connection for input 1 connection pattern: 995428
Electrical connection 1 connection type: Plug
Electrical connection 2 connection technology: Connection diagram EC
Electrical connection 2 connection type: 2x socket

Current response time:

10 Minutes 13 Seconds

Description: Signal Conditioner
Type code: SCDN
Electrical connection for input 1 connection pattern: 995428
Electrical connection 1 connection type: Plug
Electrical connection 2 connection technology: Connection diagram EC
Electrical connection 2 connection type: 2x socket
KC characters: KC EMC
Electrical connection 1 connection technology: Connection diagram L1J
Electrical connection 2 connection pattern: 995750
Electrical connection 1 number of pins/wires: 4
Electrical connection 2 number of pins/wires: 4
Symbol: 995687
Certification: RCM compliance mark c UL us - Listed (OL)
CE marking (see declaration of conformity): As per EU EMC directive As per EU RoHS directive
Certificate issuing authority: UL E322346
Measured variable: Voltage
Signal range: 0 - 10 V
Typical sampling interval: 1 ms
Accuracy in � % FS: 0.5 %FS
Repetition accuracy in � %FS: 0.2 %FS
Switching output: 2 x PNP or 2 x NPN switchable
Switching function: Freely programmable
Switching element function: N/C contact/N/O contact switchable
Max. output current: 100 mA

Short-circuit protection: yes
Protocol: IO-Link�
IO-Link�, protocol version: Device V 1.1
IO-Link�, profile: Smart sensor profile
IO-Link�, function classes: Binary data channel (BDC) Identification Process data variable (PDV) Diagnostics Teach channel
IO-Link�, communication mode: COM2 (38,4 kBd)
IO-Link�, SIO mode support: Yes
IO-Link�, port class: A
IO-Link�, process data width OUT: 0 Byte
IO-Link�, process data width IN: 5 Byte
IO-Link�, process data content IN: 2 bit BDC (measured value monitoring) 14 bit PDV (InB measured value) 14 bit PDV (InA measured value)
IO-Link�, minimum cycle time: 5 ms
IO-Link�, data memory required: 500 byte
DC operating voltage range: 15 V ...30 V
Reverse polarity protection: for all electrical connections
Type of mounting: Front panel mounting With wall/surface bracket
Product weight: 23 g
Housing material: PA-reinforced
Display type: Illuminated LCD, multi-color
Setting options: Teach-in IO-Link Via display and pushbuttons
Protection against tampering: IO-Link PIN code
Degree of protection: IP40
Corrosion resistance class (CRC): 2 - Moderate corrosion stress

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on SCDN-2V-EC4-PNLK-L1 . Santa Clara Systems carries 9,904 items from Festo.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
