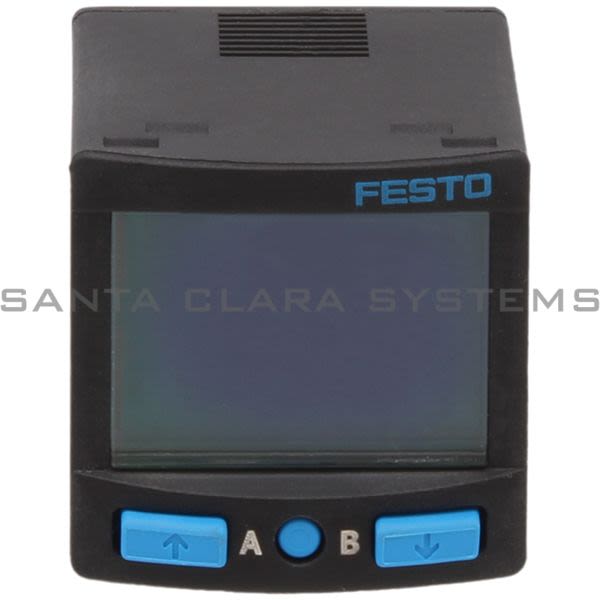

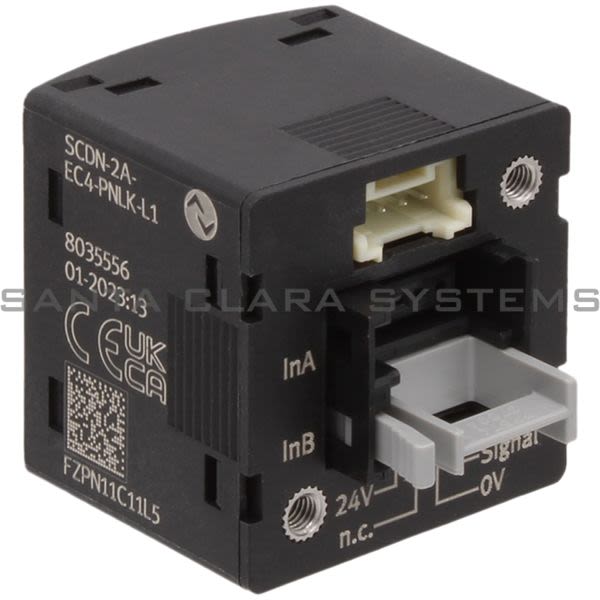

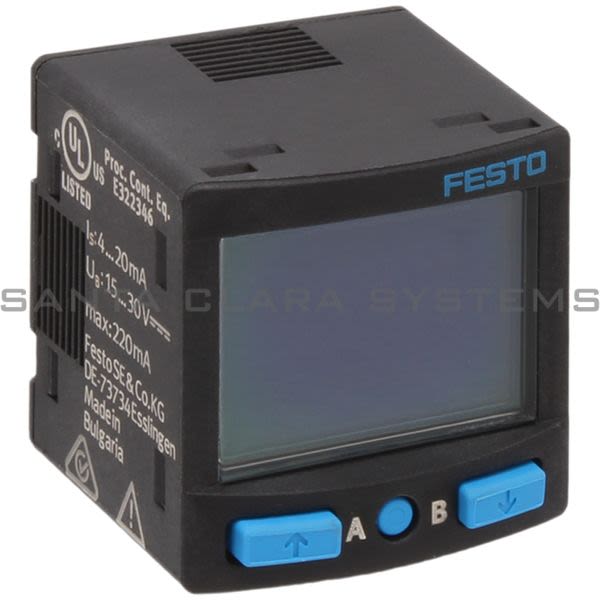

SCDN-2A-EC4-PNLK-L1

Festo - Signal Conditioner

Product Summary:

Ambient temperature: 0 �C ...50 �C
Type code: SCDN
Electrical connection for input 1, connection pattern: 995428
Electrical connection 1, connection type: Plug
Electrical connection 2, connection technology: Connection diagram EC

Current response time:

6 Minutes 29 Seconds

Description: Signal Conditioner
Ambient temperature: 0 �C ...50 �C
Type code: SCDN
Electrical connection for input 1, connection pattern: 995428
Electrical connection 1, connection type: Plug
Electrical connection 2, connection technology: Connection diagram EC
Electrical connection 2, connection type: 2x socket
KC characters: KC EMC
Electrical connection 1, connection technology: Connection diagram L1J
Electrical connection 2, connection pattern: 995750
Electrical connection 1, number of pins/wires: 4
Electrical connection 2, number of pins/wires: 4
Symbol: 995688
Certification: c UL us - Listed (OL) RCM compliance mark
CE marking (see declaration of conformity): As per EU RoHS directive As per EU EMC directive
Certificate issuing authority: UL E322346
Measured variable: Current
Signal range: 0 - 20 mA
Typical sampling interval: 1 ms

Accuracy in � % FS: 0.5 %FS
Repetition accuracy in � %FS: 0.2 %FS
Switching output: 2 x PNP or 2 x NPN switchable
Switching function: Freely programmable
Switching element function: N/C contact/N/O contact switchable
Max. output current: 100 mA
Short-circuit protection: yes
Protocol: IO-Link�
DC operating voltage range: 15 V ...30 V
Reverse polarity protection: for all electrical connections
Type of mounting: Front panel mounting With wall/surface bracket
Product weight: 23 g
Housing material: PA-reinforced
Display type: Illuminated LCD, multi-color
Setting options: Teach-in IO-Link Via display and pushbuttons
Protection against tampering: PIN code IO-Link�
Degree of protection: IP40
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
