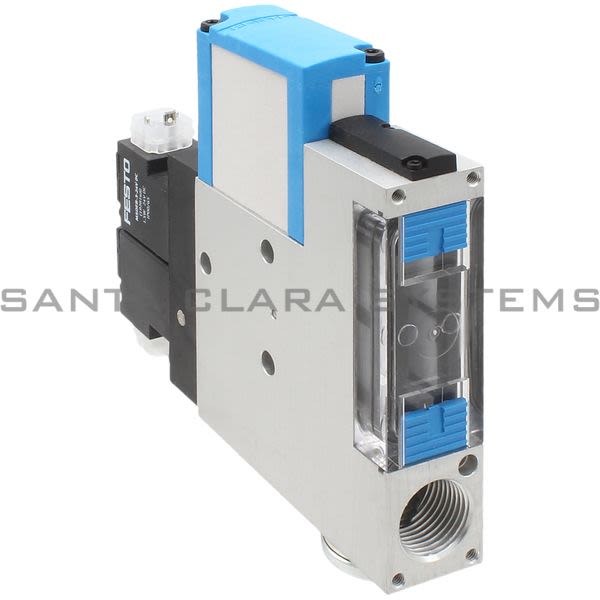

VADMI-200

Festo - Vacuum Generator

Current response time:

17 Minutes 18 Seconds

Description: Vacuum Generator
Ambient temperature: 0 °C ... 60 °C
Electrical connection: Plug
Nominal width of Laval nozzle: 2 mm
Width dimension: 22 mm
Muffler construction type: Closed
Mounting position: Any
Ejector characteristics: High vacuum
Grade of filtration: ≤40 µm
Manual override: Non-detenting
Integrated function: Ejector pulse valve, electric Flow control On/off valve, electric Filter Non-return valve
Symbol: 00991305
Valve function: Closed
Operating pressure: 0.2 MPa ... 0.8 MPa, 2 bar ... 8 bar, 29 psi ... 116 psi
Max. vacuum: 85 %
Nominal operating pressure: 0.6 MPa, 6 bar, 87 psi
Air supply time at nominal operating pressure with ejector pulse: 0.15 s
DC operating voltage range: 21.6 V ... 26.4 V
Duty cycle: 100%
Certification: c UL us - Recognized (OL)

Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication not possible
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Temperature of medium: 0 °C ... 60 °C
Degree of protection: IP65
Type of mounting: With through-hole With internal thread
Pneumatic connection 1: G1/4
Pneumatic connection 3: Pneumatic muffler integrated
Vacuum connection: G3/8
Note on materials: RoHS-compliant
Seals material: NBR
Female nozzle material: Brass, nickel-plated
Compressed air filter material: PA
Material of filter housing: PC
Housing material: Wrought aluminum alloy
Muffler material: PE POM
Material of piston: POM
Material of jet nozzle: Brass, nickel-plated
