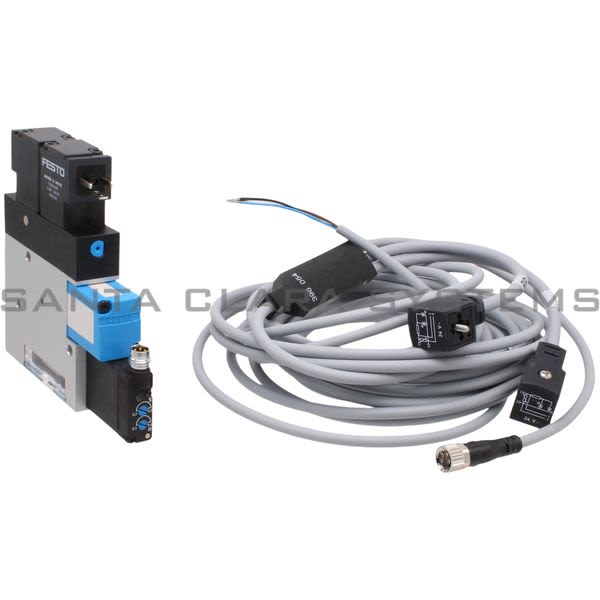

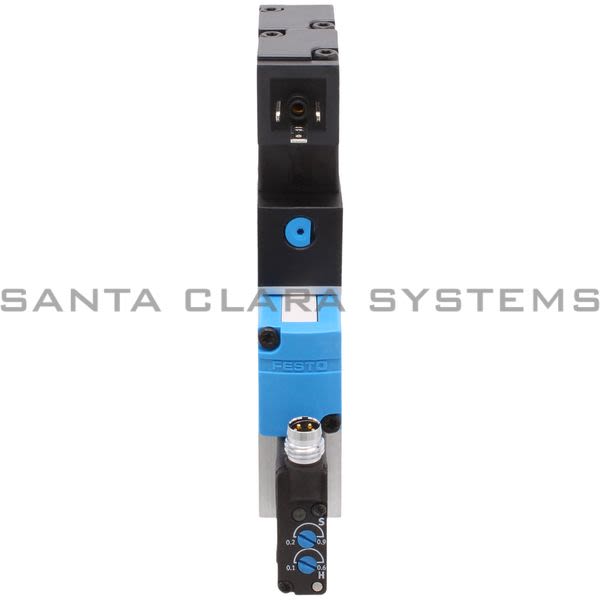

- Description: Vacuum Generator
- Ambient temperature: 0 °C ... 50 °C
- Electrical connection: M8x1 Plug
- Nominal width of Laval nozzle: 0.95 mm
- Width dimension: 18 mm
- Muffler construction type: Closed
- Mounting position: Any
- Ejector characteristics: High vacuum
- Grade of filtration: ≤40 µm
- Manual override: Non-detenting
- Integrated function: Ejector pulse valve, electric Flow control On/off valve, electric Filter Air saving function, electrical Non-return valve Vacuum switch
- Measured variable: Relative pressure
- Measuring principle: Piezoresistive
- Switching element function: N/O contact
- Switching function: Threshold value comparator
- Symbol: 00991306
- Valve function: Closed
- Reverse polarity protection: For all electrical connections
- Display type: LED
- Setting range hysteresis: -0.06 MPa ... -0.01 MPa, -0.6 bar ... -0.1 bar
- Hysteresis setting range: -8.7 psi ... -1.45 psi
- Setting options: Potentiometer
- Switching status indication: Optical
- Setting range threshold value: -0.09 MPa ... -0.02 MPa, -0.9 bar ... -0.2 bar
- Threshold value setting range: -13.05 psi ... -2.9 psi
- Operating pressure: 0.2 MPa ... 0.8 MPa, 2 bar ... 8 bar, 29 psi ... 116 psi
- Max. vacuum: 85 %
- Nominal operating pressure: 0.6 MPa, 6 bar, 87 psi
- Max. overload pressure: 5 bar
- Air supply time at nominal operating pressure with ejector pulse: 2.04 s
- DC operating voltage range: 21.6 V ... 26.4 V
- Duty cycle: 100%
- Switching output: PNP
- Certification: RCM compliance mark, c UL us - Recognized (OL)
- CE marking (see declaration of conformity): As per EU EMC directive
- UKCA marking (see declaration of conformity): To UK instructions for EMC
- Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media: Operation with oil lubrication not possible
- Corrosion resistance class (CRC): 2 - Moderate corrosion stress
- LABS (PWIS) conformity: VDMA24364-B1/B2-L
- Temperature of medium: 0 °C ... 60 °C
- Degree of protection: IP65
- Pressure measuring range: 0 MPa ... 0.1 MPa, 0 bar ... 1 bar, 0 psi ... 14.5 psi
- Type of mounting: With through-hole With internal thread
- Pneumatic connection 1: G1/8
- Pneumatic connection 3: Pneumatic muffler integrated
- Vacuum connection: G1/8
- Note on materials: RoHS-compliant
- Seals material: NBR
- Female nozzle material: Brass, nickel-plated
- Compressed air filter material: PA
- Material of filter housing: PC
- Housing material: Wrought aluminum alloy
- Muffler material: PE POM
- Material of piston: POM
- Material of jet nozzle: Brass, nickel-plated
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on VADMI-95-LS-P . Santa Clara Systems carries 9,178 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
