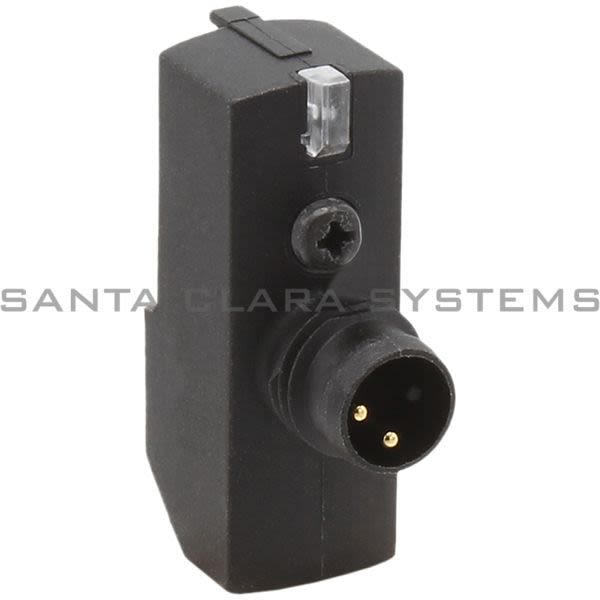

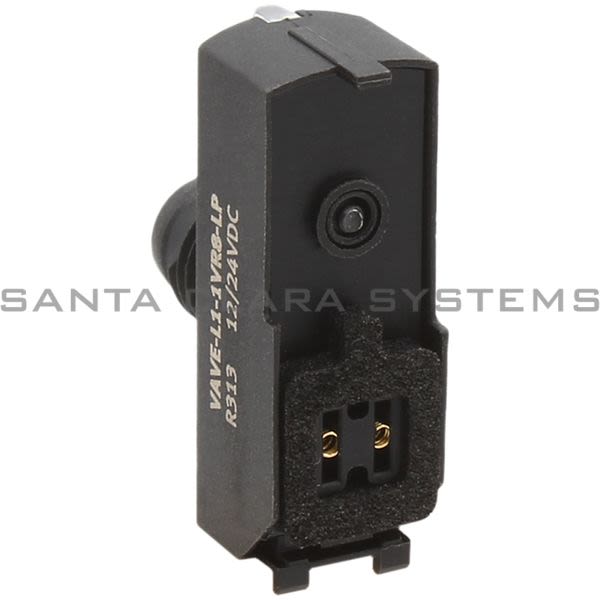

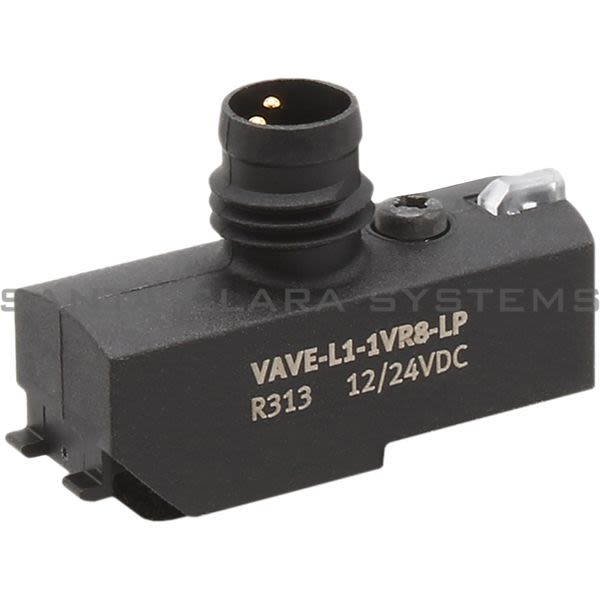

VAVE-L1-1VR8-LP

Festo - Electrical Sub-Base

Current response time:

By 5AM PT on Monday

Emergency?

Description: Electrical Sub-Base
Ambient temperature: -5 °C ... 60 °C
Electrical connection: 3-pin/2-pin M8 / - Plug/socket
Reverse polarity protection: Bipolar
Additional functions: Spark suppression
Signal status display: LED
Nominal operating voltage DC: 12 V
Surge resistance: 0.8 kV
Contamination level: 3
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L

Degree of protection: IP65
Mounting position: Any
Max. tightening torque: 0.27 Nm
Product weight: 3.2 g
Protective earth connection: Not available
Type of mounting: On air solenoid valve with self-tapping screw
Housing colour: Black
Cover material: PA
Seals material: EPDM
Housing material: PA
Material of screws: Tempered steel

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on VAVE-L1-1VR8-LP . Santa Clara Systems carries 7,168 items from Festo.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
