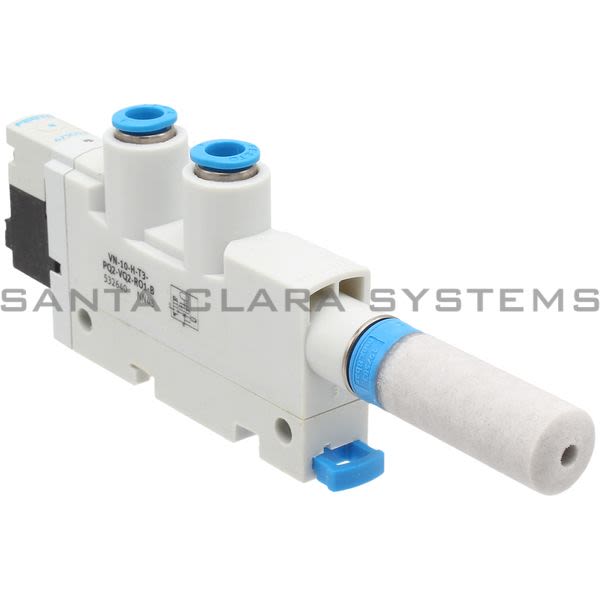

• Festo VN-10-H-T3-PQ2-VQ2-RO1-B Vacuum Generator Product Image

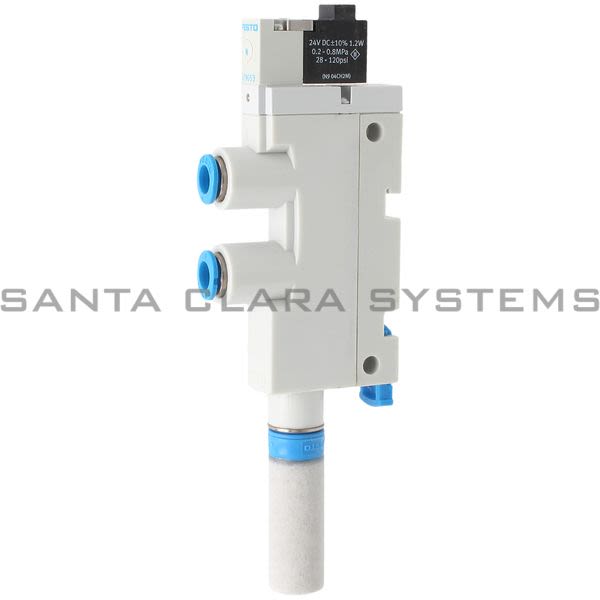

  • Festo VN-10-H-T3-PQ2-VQ2-RO1-B Vacuum Generator Product Image

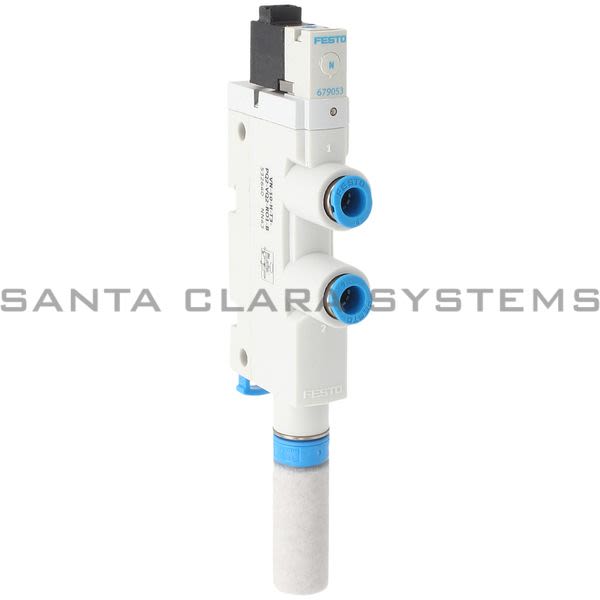

  • Festo VN-10-H-T3-PQ2-VQ2-RO1-B Vacuum Generator Product Image

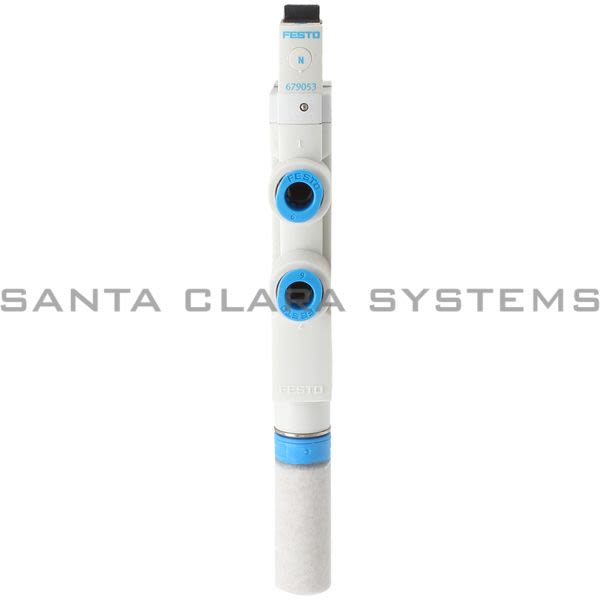

  • Festo VN-10-H-T3-PQ2-VQ2-RO1-B Vacuum Generator Product Image
  • Festo VN-10-H-T3-PQ2-VQ2-RO1-B Barcode

VN-10-H-T3-PQ2-VQ2-RO1-B

Get a Quote

Current response time:

10 Minutes 25 Seconds
  • Description: Vacuum Generator
  • Ambient temperature: 0 C ... 50 C
  • Electrical connection: Plug
  • Nominal width of Laval nozzle: 0.95 mm
  • Width dimension: 14 mm
  • Muffler construction type: Open
  • Mounting position: Any
  • Ejector characteristics: Standard High negative pressure
  • Manual override: Non-detenting
  • Integrated function: Ejector pulse valve, pneumatic Shut off valve, electric Pneumatic muffler open
  • Structural design: T-shape
  • Symbol: 00991944
  • Valve function: 2/2
  • Operating pressure for max. suction rate: 3 bar
  • Operating pressure: 2 bar ... 8 bar
  • Operating pressure for max. vacuum: 3.5 bar
  • Max. vacuum: 93 %
  • Nominal operating pressure: 6 bar
  • Max. suction rate with respect to atmosphere: 21.8 l/min
  • Air supply time at nominal operating pressure: 1.06 s
  • DC operating voltage range: 21.6 V ... 26.4 V
  • Electrical power consumption: 1.2 W
  • Duty cycle: 100%
  • Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Information on operating and pilot media: Operation with oil lubrication not possible
  • Corrosion resistance class (CRC): 1 - Low corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Temperature of medium: 0 C ... 50 C
  • Noise level at nominal operating pressure: 71 dB(A)
  • Degree of protection: IP40
  • Product weight: 63 g
  • Type of mounting: With through-hole With H-rail With accessories
  • Pneumatic connection 1: QS-6
  • Pneumatic connection 3: Pneumatic muffler open
  • Vacuum connection: QS-6
  • Material of connecting thread: Wrought aluminum alloy, anodized
  • Seals material: NBR
  • Female nozzle material: POM
  • Housing material: PA-reinforced POM-reinforced
  • Muffler material: PE
  • Material of screws: Steel
  • Material of jet nozzle: Wrought aluminum alloy
  • Material of pneumatic fitting: Brass Nickel-plated
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on VN-10-H-T3-PQ2-VQ2-RO1-B . Santa Clara Systems carries 5,560 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.

Alternates

  • 532640
