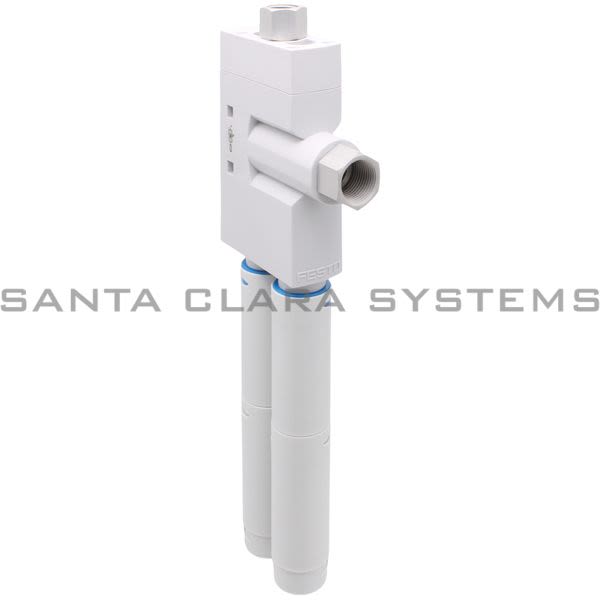

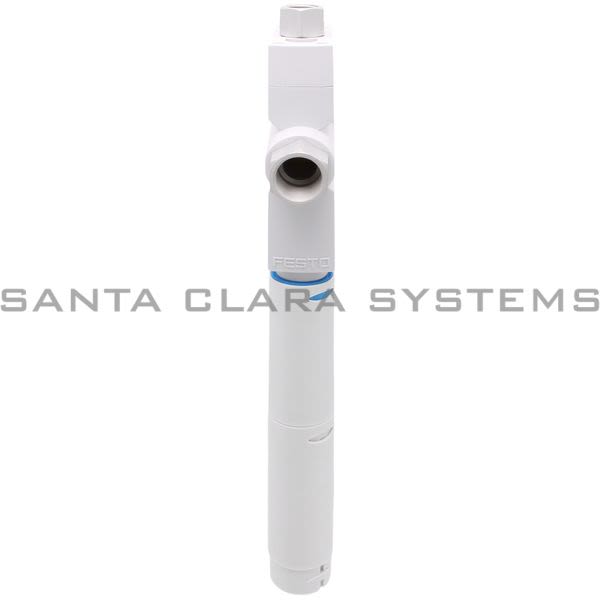

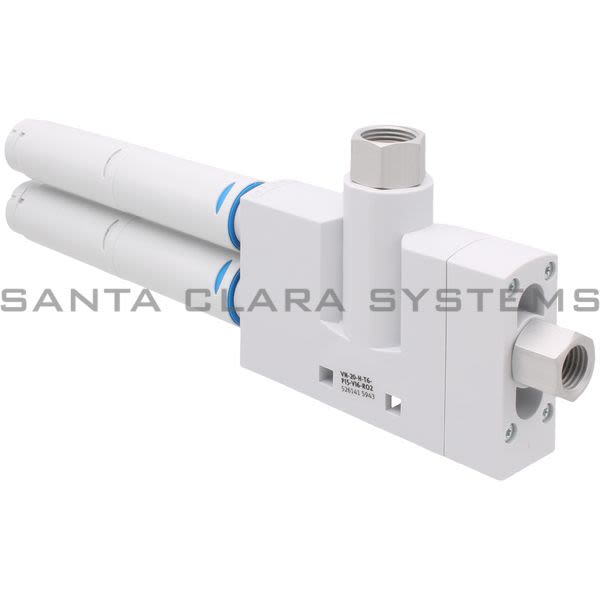

VN-20-H-T6-PI5-VI6-RO2

Festo - Vacuum Generator

Product Summary:

Ambient temperature: 0 °C ... 60 °C
Nominal width of Laval nozzle: 2 mm
Max. vacuum: 92 %
Max. suction rate with respect to atmosphere: 98 l/min
Mounting position: Any

Current response time:

By 5AM PT on Thursday

Emergency?

Description: Vacuum Generator
Ambient temperature: 0 °C ... 60 °C
Nominal width of Laval nozzle: 2 mm
Max. vacuum: 92 %
Max. suction rate with respect to atmosphere: 98 l/min
Mounting position: Any
Muffler construction type: Open
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
Dimension: 24 mm
Ejector characteristics: High vacuum - Standard
Integrated function: Muffler open
Structural design: T-shape
Symbol: 00991489
Operating pressure for max. suction rate: 2 bar
Operating pressure: 1 bar ... 8 bar
Operating pressure for max. vacuum: 3.5 bar
Nominal operating pressure: 6 bar
Air supply time at nominal operating pressure: 0.2 s

Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication not possible
LABS (PWIS) conformity: VDMA24364 Zone III
Temperature of medium: 0 °C ... 60 °C
Noise level at nominal operating pressure: 63 dB(A)
Max. tightening torque: 0.8 Nm
Type of mounting: With through-hole - With accessories
Pneumatic connection 1: G1/4
Pneumatic connection 3: Muffler open
Vacuum connection: G3/8
Material of connecting thread: Wrought aluminum alloy, anodized
Note on materials: RoHS compliant
Seals material: NBR
Female nozzle material: POM
Housing material: Reinforced POM
Muffler material: Die-cast aluminum - POM - PU foam
Material of jet nozzle: Wrought aluminum alloy
