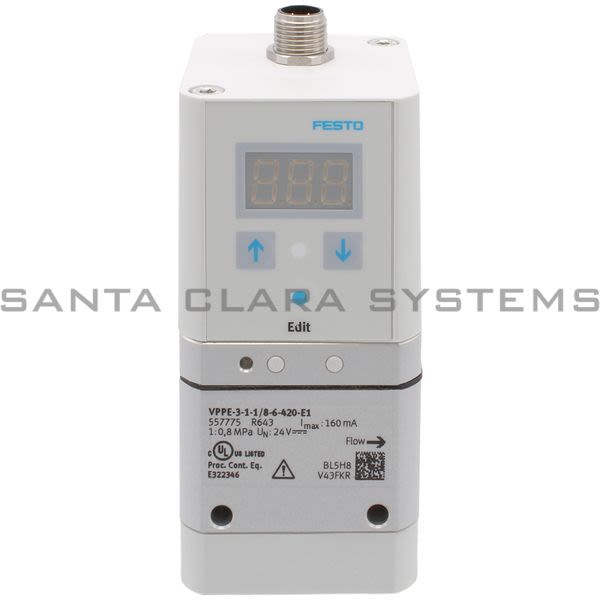

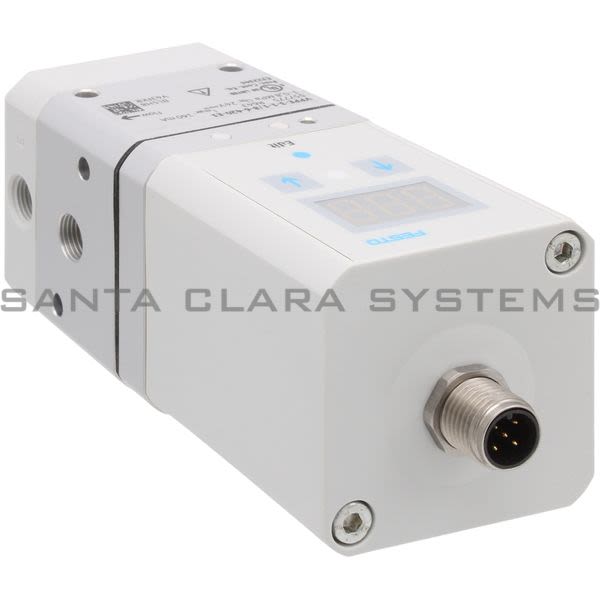

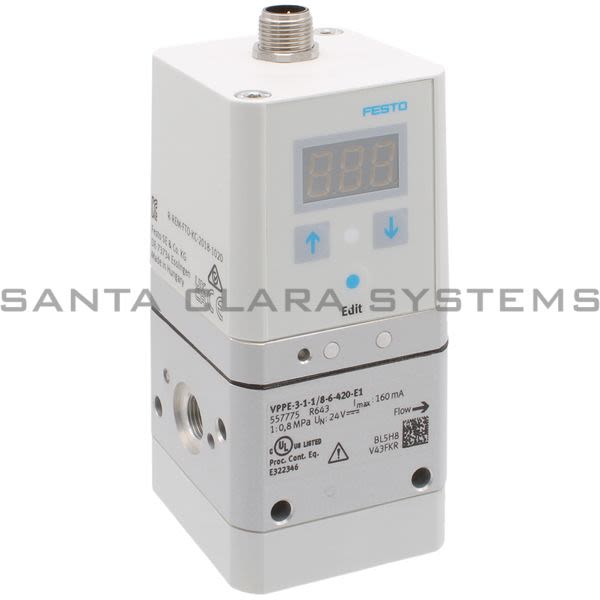

VPPE-3-1-1-8-6-420-E1

Festo - Proportional Pressure Control Valve

Current response time:

By 5AM PT on Tuesday

Emergency?

Description: Proportional Pressure Control Valve
Ambient temperature: 0 °C ... 60 °C
Electrical connection: 5-pin - M12 - Plug
Nominal width pressurization: 5 mm
Exhaust nominal width: 2.5 mm
Actuation type: Electrical
Sealing principle: Soft
Mounting position: Any - Preferably upright
Structural design: Pilot-controlled diaphragm regulator
Short-circuit protection: For all electrical connections
Safety instructions: VPPE safety position: if the supply cable breaks, the outlet pressure is maintained in uncontrolled form.
Symbol: 00995303
Reverse polarity protection: For all electrical connections
Reset method: Mechanical spring
Type of control: Pilot-controlled
Valve function: 3-way proportional pressure control valve
Display type: LED display - 3-digit
Pressure regulation range MPa: 0.006 MPa ... 0.6 MPa
Pressure regulation range: 0.06 bar ... 6 bar
Inlet pressure 1: 6 bar ... 8 bar
Inlet pressure 1 MPa: 0.6 MPa ... 0.8 MPa
Max. pressure hysteresis MPa: 0.003 MPa
Max. pressure hysteresis: 0.03 bar
Max. pressure hysteresis psi: 0.435 psi
Standard nominal flow rate: 800 l/min
DC operating voltage range: 21.6 V ... 26.4 V
Max. current consumption: 160 mA
Duty cycle: 100%

Max. electrical power consumption: 4.2 W
Residual ripple: 10 %
Switching output: PNP
Analog output signal range: 4 - 20 mA
Analog input signal range: 4 - 20 mA
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4] - Inert gas
Information on operating and pilot media: Operation with oil lubrication not possible
Certification: RCM compliance mark - c UL us - Listed (OL)
KC characters: KC EMC
CE marking (see declaration of conformity): As per EU EMC directive - As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC - To UK RoHS instructions
Certificate issuing authority: UL E322346
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Temperature of medium: 10 °C ... 50 °C
Degree of protection: IP65
Product weight: 390 g
Linearity: 1 %FS
Hysteresis: 0.5 %FS
Reproducibility: 0.5 %FS
Overall accuracy: 1.25 %FS
Temperature coefficient: 0.04 %/K
Type of mounting: With through-hole
Pneumatic connection 1: G1/8
Pneumatic connection 2: G1/8
Pneumatic connection 3: G1/8
Housing material: Wrought aluminum alloy, anodized
