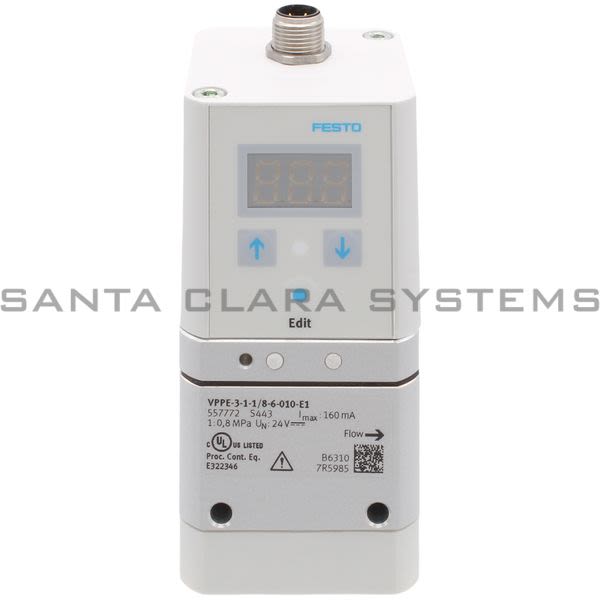

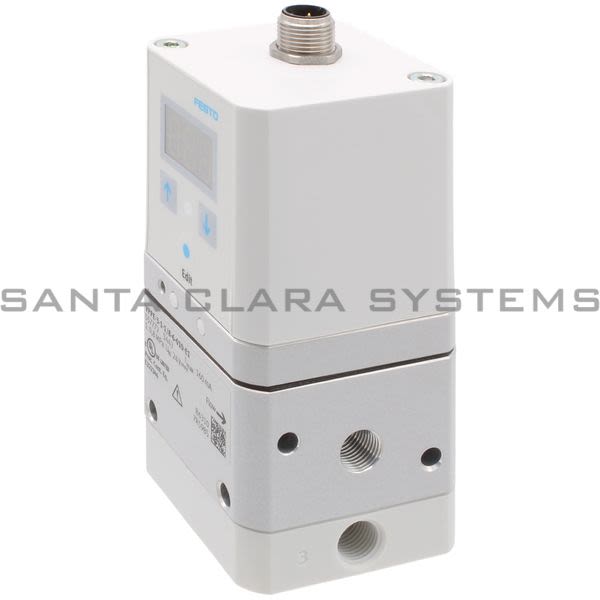

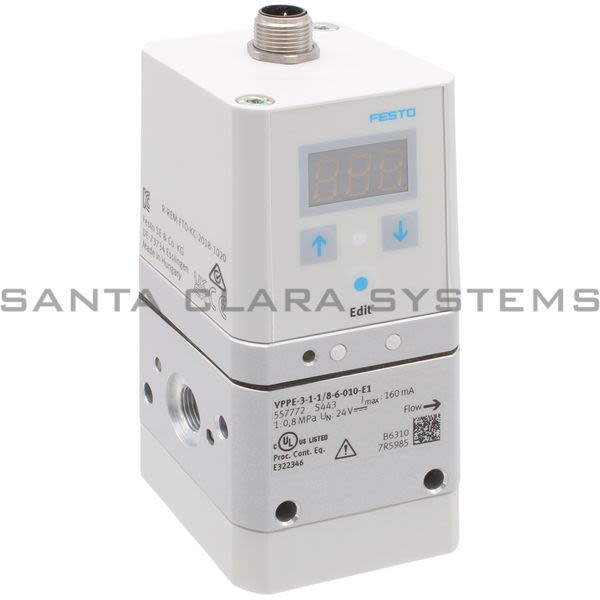

VPPE-3-1-1-8-6-010-E1

Festo - Proportional Pressure Control Valve

Current response time:

By 5AM PT on Monday

Emergency?

Description: Proportional Pressure Control Valve
Ambient temperature: 0 °C ... 60 °C
Electrical connection: 5-pin, M12, Plug
Valve function: 3-way proportional pressure control valve
Pneumatic connection 1: G1/8
Pressure regulation range: 0.06 bar - 6 bar
Inlet pressure 1: 6 bar - 8 bar
Normal nominal flow rate (normalized to DIN 1343): 800 l/min
Nominal width pressurization: 5 mm
Exhaust nominal width: 2.5 mm
Actuation type: Electrical
Sealing principle: Soft
Mounting position: Any, Preferably upright
Structural design: Pilot-controlled diaphragm regulator
Short-circuit protection: For all electrical connections
Safety instructions: VPPE safety position: if the supply cable breaks, the outlet pressure is maintained in uncontrolled form.
Symbol: 00995303
Reverse polarity protection: For all electrical connections
Reset method: Mechanical spring
Type of control: Pilot-controlled
Display type: LED display, 3-digit
Pressure regulation range MPa: 0.006 MPa ... 0.6 MPa
Inlet pressure 1 MPa: 0.6 MPa ... 0.8 MPa
Max. pressure hysteresis: 0.003 MPa, 0.03 bar, 0.435 psi

DC operating voltage range: 21.6 V ... 26.4 V
Max. current consumption: 160 mA
Duty cycle: 100%
Max. electrical power consumption: 4.2 W
Residual ripple: 10 %
Switching output: PNP
Analog output signal range: 0 - 10 V
Analog input signal range: 0 - 10 V
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4], Inert gas
Information on operating and pilot media: Operation with oil lubrication not possible
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Temperature of medium: 10 °C ... 50 °C
Degree of protection: IP65
Product weight: 390 g
Linearity: 1 %FS
Hysteresis: 0.5 %FS
Reproducibility: 0.5 %FS
Overall accuracy: 1.25 %FS
Temperature coefficient: 0.04 %/K
Type of mounting: With through-hole
Pneumatic connection 2: G1/8
Pneumatic connection 3: G1/8

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on VPPE-3-1-1-8-6-010-E1 . Santa Clara Systems carries 7,778 items from Festo.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
