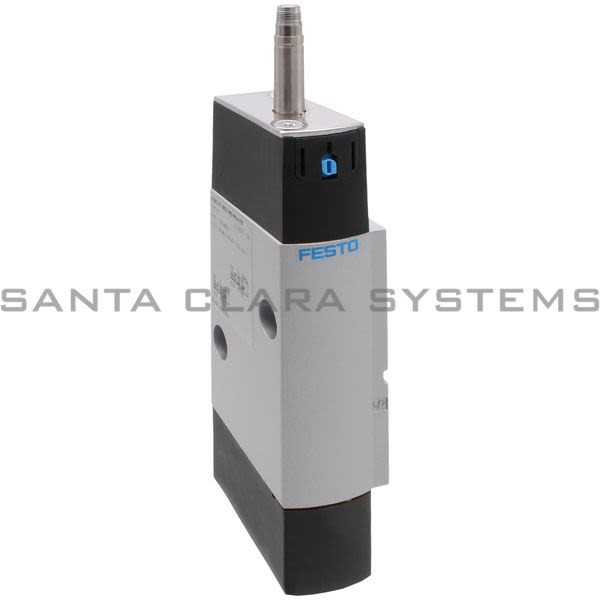

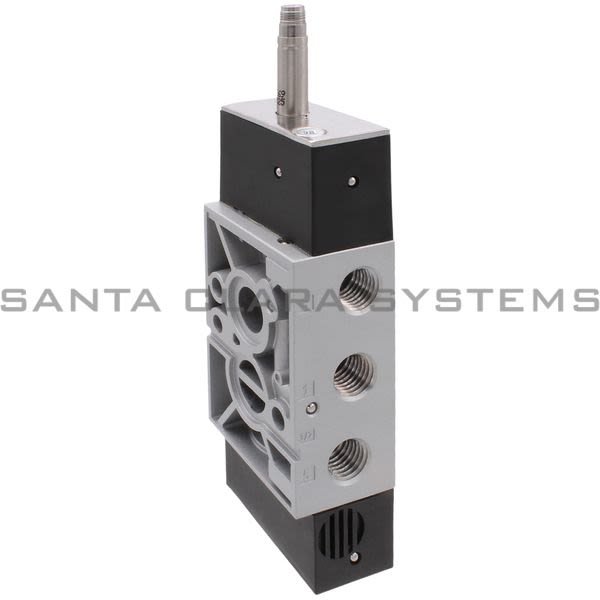

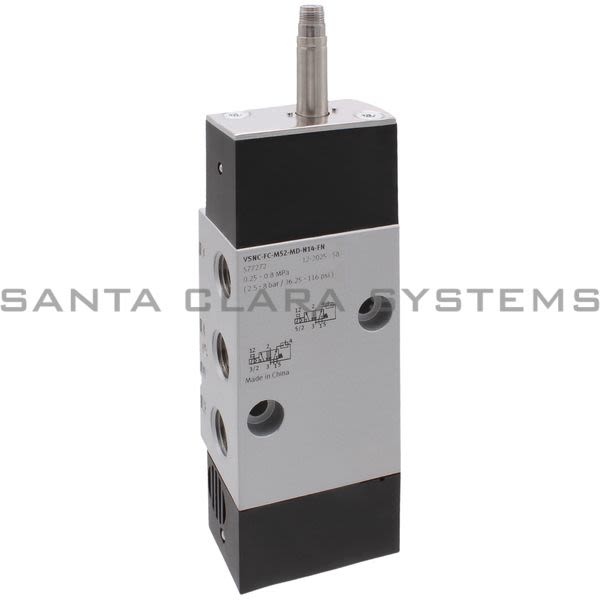

VSNC-FC-M52-MD-N14-FN
Product Summary:
- Width: 32 mm
- Structural design: Piston gate valve
- Valve function: 5/2 or 3/2 switchable
- Normal nominal flow rate (normalized to DIN 1343): 1250 l/min
- Operating pressure: 2.5 bar - 8 bar
Get a Quote
Current response time:
11 Minutes 40 Seconds
- Description: Air Solenoid Valve
- Width: 32 mm
- Structural design: Piston gate valve
- Valve function: 5/2 or 3/2 switchable
- Normal nominal flow rate (normalized to DIN 1343): 1250 l/min
- Operating pressure: 2.5 bar - 8 bar
- Actuation type: Electrical
- Pneumatic working port: NAMUR connection diagram
- Operating voltage: Via solenoid coil, to be ordered separately
- Reset method: Mechanical spring
- Certificate issuing authority: DNVGL-TAA000011J
- Exhaust air function: With flow control option
- Sealing principle: Soft
- Mounting position: Any
- Conforms to standard: VDI/VDE 3845 (NAMUR)
- Manual override: Detenting, Non-detenting
- Type of control: Pilot-controlled
- Pilot air supply port: Internal
- Flow direction: Non-reversible
- Symbol: 00991831
- Lap: Overlap
- Signal status display: With accessories
- B-value: 0.4
- C value: 5.2 l/sbar
- Standard nominal flow rate, exhaust air return 4->3: 110 l/min
- Switching time off: 92 ms
- On switching time: 35 ms
- Duty cycle: 100%
- Coil characteristics: See solenoid coil, to be ordered separately
- Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC): 2 - Moderate corrosion stress
- LABS (PWIS) conformity: VDMA24364-B2-L
- Temperature of medium: -20 °C ... 60 °C
- Product weight: 415 g
- Type of mounting: With through-hole
- Venting hole connection: Not ducted
- Pneumatic connection 1: 1/4 NPT
- Pneumatic connection 2: NAMUR connection diagram
- Pneumatic connection 3: 1/4 NPT
- Pneumatic connection 4: NAMUR connection diagram
- Pneumatic connection 5: 1/4 NPT
- Note on materials: RoHS-compliant
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on VSNC-FC-M52-MD-N14-FN . Santa Clara Systems carries 9,904 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
