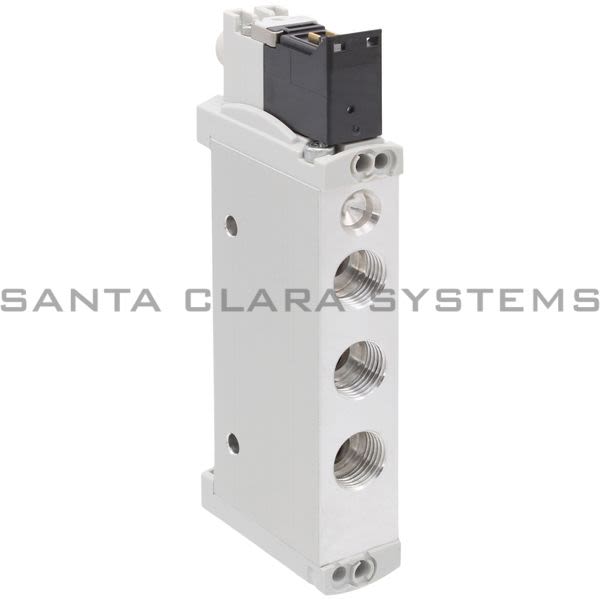

• Festo VUVG-L14-M52-AT-G18-1P3 Air Solenoid Valve Product Image

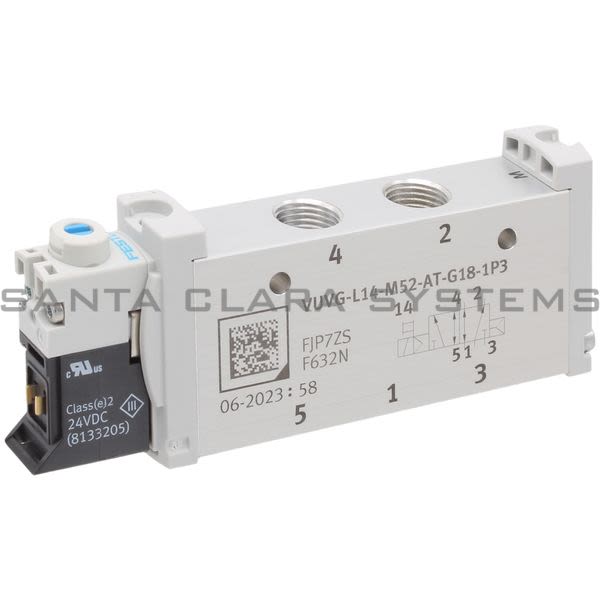

  • Festo VUVG-L14-M52-AT-G18-1P3 Air Solenoid Valve Product Image

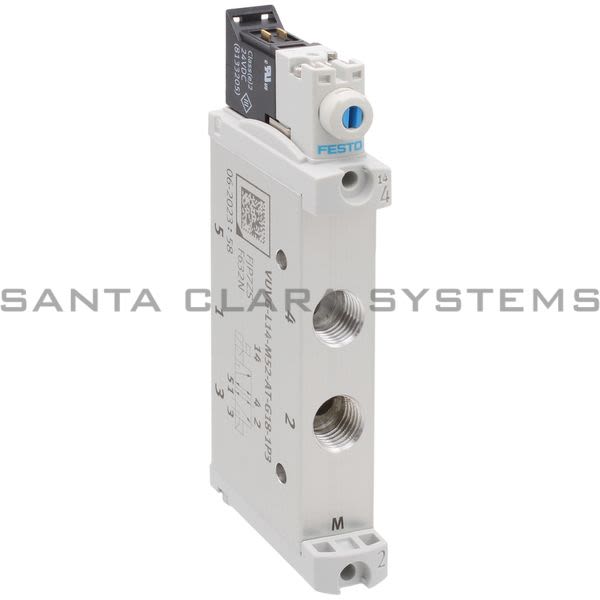

  • Festo VUVG-L14-M52-AT-G18-1P3 Air Solenoid Valve Product Image
  • Festo VUVG-L14-M52-AT-G18-1P3 Barcode

VUVG-L14-M52-AT-G18-1P3

Get a Quote

Current response time:

9 Minutes 13 Seconds
  • Description: Air Solenoid Valve
  • Ambient temperature: -5 C ... 60 C
  • Electrical connection: Via electrical sub-base
  • Valve function: 5/2, monostable
  • Standard nominal flow rate: 700 l/min - 780 l/min
  • Pneumatic working port: G1/8
  • Actuation type: Electrical
  • Valve size: 14 mm
  • Operating voltage: 24V DC
  • Operating pressure: 0.25 MPa ... 0.8 MPa, 2.5 bar ... 8 bar
  • Structural design: Piston gate valve
  • Reset method: Pneumatic spring
  • Certification: RCM compliance mark c UL us - Recognized (OL)
  • Degree of protection: IP40 IP65 With plug socket
  • Nominal width: 5.6 mm
  • Exhaust air function: With flow control option
  • Sealing principle: Soft
  • Mounting position: Any
  • Manual override: Detenting Non-detenting Covered
  • Type of control: Pilot-controlled
  • Pilot air supply port: Internal
  • Symbol: 00992908
  • Lap: Overlap
  • Pilot pressure MPa: 0.25 MPa ... 0.8 MPa
  • Pilot pressure: 2.5 bar ... 8 bar
  • Suitability for vacuum: No
  • Switching time off: 22 ms
  • On switching time: 14 ms
  • Duty cycle: 100%
  • Max. positive test pulse with 0 signal: 700 s
  • Max. negative test pulse on 1 signal: 900 s
  • Coil characteristics: 24 V DC: 1.0 W 24 V DC: low-current phase 0.3 W, high-current phase 1.0 W
  • Permissible voltage fluctuations: +/- 10 %
  • Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
  • Vibration resistance: Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
  • Restricted ambient and media temperature: -5 - 50 C Without holding power reduction
  • Shock resistance: Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
  • Corrosion resistance class (CRC): 2 - Moderate corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Cleanroom class: Class 5 according to ISO 14644-1
  • Temperature of medium: -5 C ... 60 C
  • Product weight: 78 g
  • Type of mounting: Optionally: On terminal strip With through-hole
  • Pneumatic connection 1 - 5: G1/8
  • Seals material: HNBR NBR
  • Housing material: Wrought aluminum alloy
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on VUVG-L14-M52-AT-G18-1P3 . Santa Clara Systems carries 5,560 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
