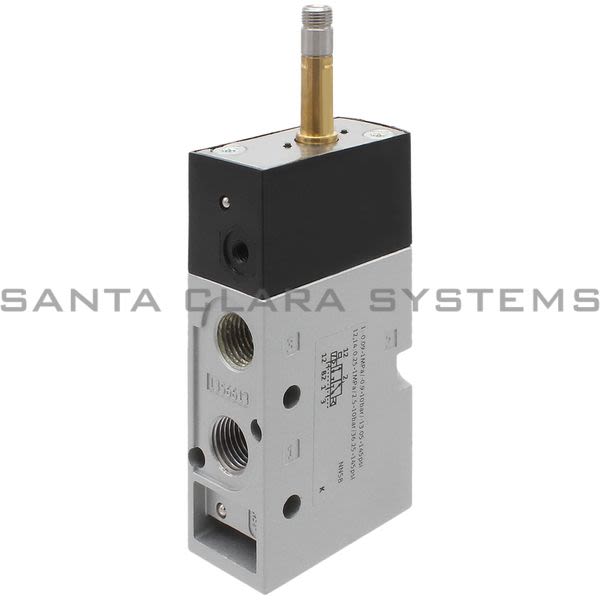

• Festo VUVS-L25-M32C-AZD-G14-F8 Air Solenoid Valve Product Image

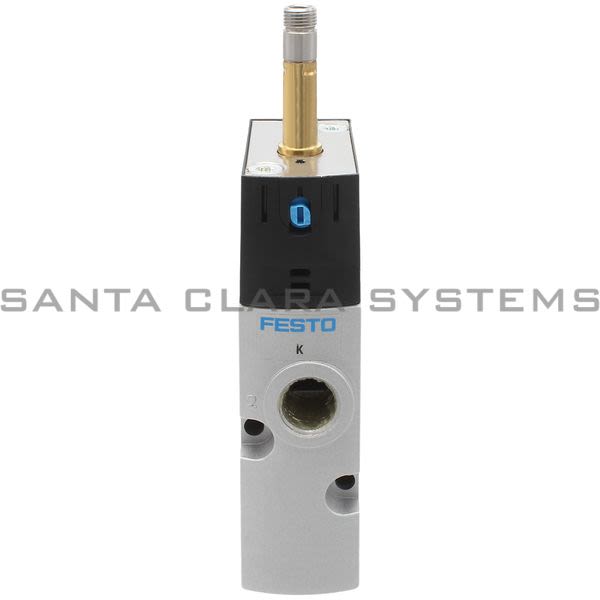

  • Festo VUVS-L25-M32C-AZD-G14-F8 Air Solenoid Valve Product Image

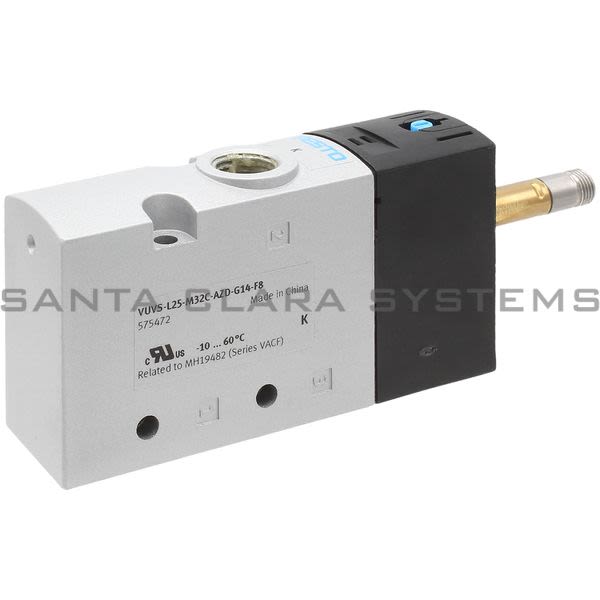

  • Festo VUVS-L25-M32C-AZD-G14-F8 Air Solenoid Valve Product Image

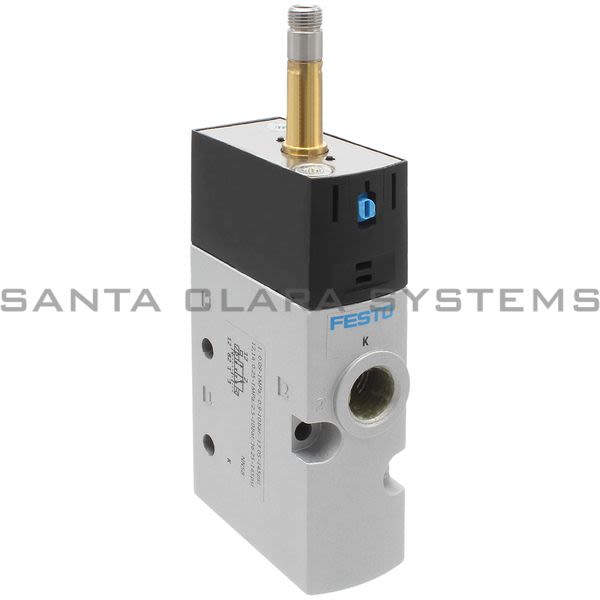

  • Festo VUVS-L25-M32C-AZD-G14-F8 Air Solenoid Valve Product Image
  • Festo VUVS-L25-M32C-AZD-G14-F8 Barcode

VUVS-L25-M32C-AZD-G14-F8

Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: Air Solenoid Valve
  • Ambient temperature: -10 C ... 60 C
  • Valve function: 3/2, closed, monostable
  • Actuation type: Electrical
  • Valve size: 26.5 mm
  • Standard nominal flow rate: 1000 l/min
  • Pneumatic working port: G1/4
  • Operating pressure: -0.09 MPa ... 1 MPa, -0.9 bar ... 10 bar
  • Structural design: Piston gate valve
  • Reset method: Pneumatic spring
  • Certification: C UL us - Recognized (OL)
  • Maritime classification: See certificate
  • Certificate issuing authority: DNVGL-TAA000011J
  • Nominal width: 6.3 mm
  • Exhaust air function: With flow control option
  • Sealing principle: Soft
  • Mounting position: Any
  • Manual override: Detenting Non-detenting
  • Type of control: Pilot-controlled
  • Pilot air supply port: External
  • Flow direction: Reversible
  • Symbol: 00991406
  • Lap: Overlap
  • Pilot pressure MPa: 0.25 MPa ... 1 MPa
  • Pilot pressure: 2.5 bar ... 10 bar
  • B-value: 0.3
  • C value: 4.7 l/sbar
  • Switching time off: 26 ms
  • On switching time: 13 ms
  • Max. positive test pulse with 0 signal: 2000 s
  • Max. negative test pulse on 1 signal: 3600 s
  • Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
  • Vibration resistance: Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
  • Shock resistance: Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
  • Corrosion resistance class (CRC): 2 - Moderate corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Cleanroom class: Class 6 according to ISO 14644-1
  • Temperature of medium: -10 C ... 60 C
  • Pilot medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Product weight: 244 g
  • Type of mounting: Optionally: On terminal strip, With through-hole
  • Venting hole connection: Not ducted
  • Pilot exhaust air port 82: M5
  • Pilot air port 12: M5
  • Pneumatic connection 1: G1/4
  • Pneumatic connection 2: G
  • Pneumatic connection 3: G1/4
  • Seals material: HNBR NBR
  • Housing material: Die-cast aluminum Painted
  • Piston slide material: Wrought aluminum alloy
  • Material of screws: Steel, galvanized
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on VUVS-L25-M32C-AZD-G14-F8 . Santa Clara Systems carries 5,553 items from Festo.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
