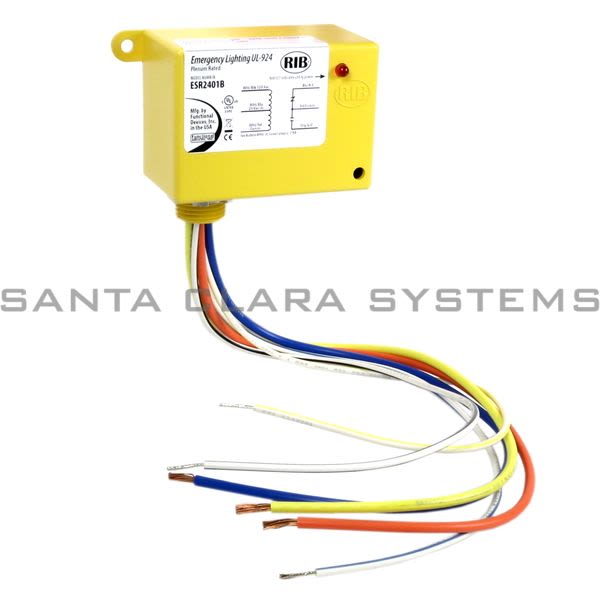

• Functional Devices ESR2401B Enclosed Relay Product Image

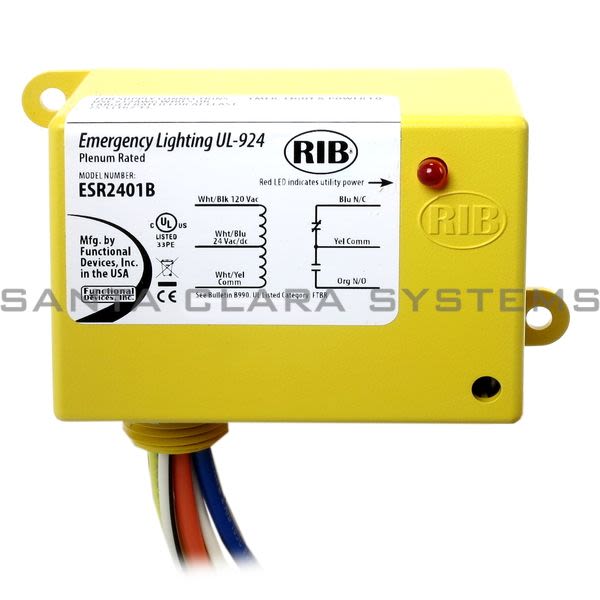

  • Functional Devices ESR2401B Enclosed Relay Product Image
  • Functional Devices ESR2401B Enclosed Relay Product Image
  • Functional Devices ESR2401B Barcode

ESR2401B

Product Summary:

  • Operating Temperature: -30 to 140 F
  • Operate Time: 18mS
  • # Relays & Contact Type: One (1) SPDT Continuous Duty Coil
  • Expected Relay Life: 10 million cycles minimum mechanical
  • Relay Status: LED On = Activated
Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: Enclosed Relay
  • Operating Temperature: -30 to 140 F
  • Operate Time: 18mS
  • # Relays & Contact Type: One (1) SPDT Continuous Duty Coil
  • Expected Relay Life: 10 million cycles minimum mechanical
  • Relay Status: LED On = Activated
  • Coil Voltage Input: 24 Vac/dc ; 120 Vac ; 50-60 Hz, Drop Out = 2.1 Vac / 3.8 Vdc, Pull In = 18 Vac / 22 Vdc
  • Coil Current: 50 mA @ 18 Vac, 83 mA @ 24 Vac, 47 mA @ 120 Vac, 33 mA @ 22 Vdc, 35 mA @ 24 Vdc, 47 mA @ 30 Vdc
  • Contact Ratings: 20 Amp Resistive @ 277 Vac, 20 Amp Ballast @ 277 Vac, 16 Amp Electronic Ballast @ 277 Vac (N/O), 10 Amp Tungsten @ 120 Vac (N/O), 770 VA Pilot Duty @ 120 Vac, 1,110 VA Pilot Duty @ 277 Vac, 2 HP @ 277 Vac, 1 HP @ 120 Vac
  • Dimensions: 2.30? x 3.20? x 1.80? with .50? NPT Nipple

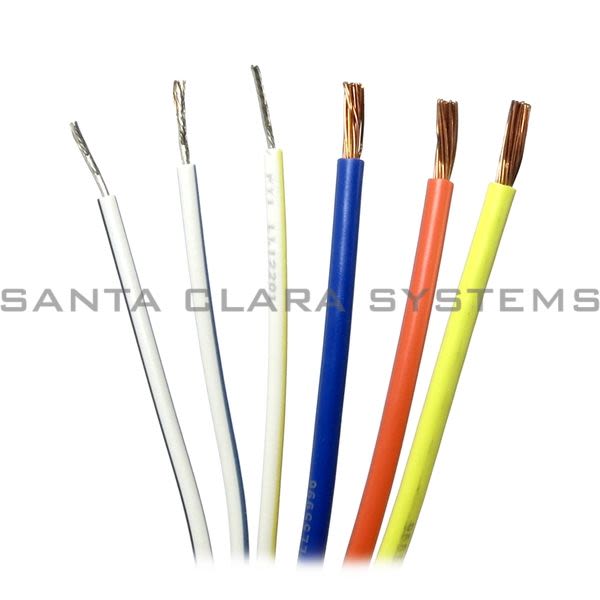

  • Wires: 16?, 600V Rated
  • Approvals: UL Listed, UL924, C-UL, CE
  • Housing Rating: UL Accepted for Use in Plenum, NEMA 1
  • Gold Flash: No
  • Override (Test Switch): No
  • Description: UL924 / 20 AMP EMERGENCY BYPASS / SHUNT RELAY
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on ESR2401B . Santa Clara Systems carries 14 items from Functional Devices.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.

Alternates

  • LX924BR1
