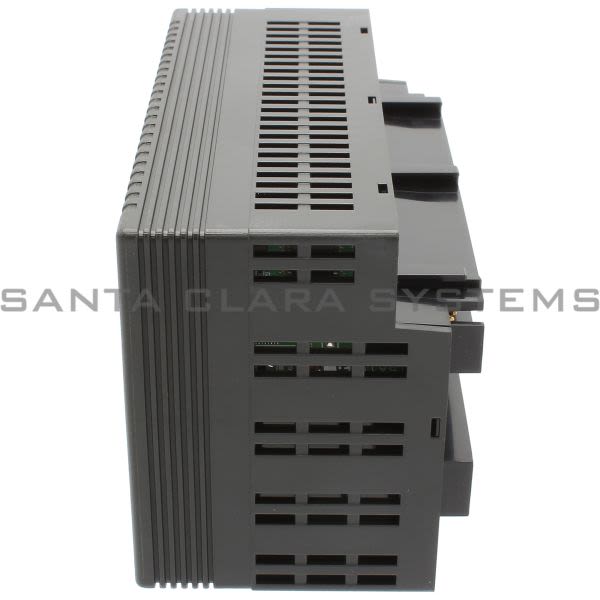

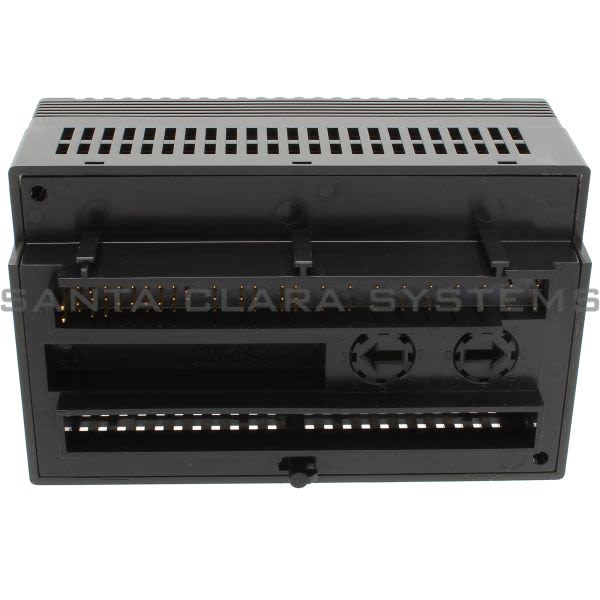

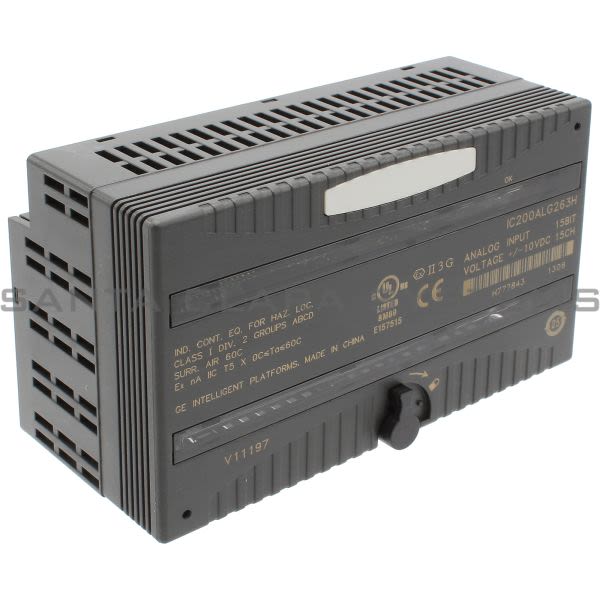

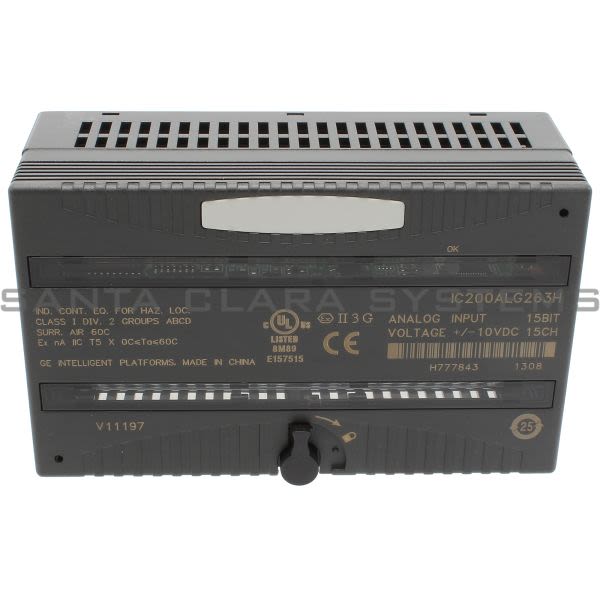

• General Electric IC200 ALG 263 Analog Input Module Product Image
  • General Electric IC200 ALG 263 Analog Input Module Product Image
  • General Electric IC200 ALG 263 Analog Input Module Product Image
  • General Electric IC200 ALG 263 Analog Input Module Product Image
  • General Electric IC200 ALG 263 Barcode

IC200ALG263

Product Summary:

  • Type of Device: Anglog Input 15 Bit Voltage 15 Channel
  • Weight: 0.5 lbs
  • Resolution: +/- 15 buts, 0.3125mV = 1 Count
  • Input voltage: - 10V + 10V
  • Channels: 15 single ended, one group
Let Us Find It

Current response time:

16 Minutes 41 Seconds
  • Description: Analog Input Module
  • Type of Device: Anglog Input 15 Bit Voltage 15 Channel
  • Weight: 0.5 lbs
  • Resolution: +/- 15 buts, 0.3125mV = 1 Count
  • Input voltage: - 10V + 10V
  • Channels: 15 single ended, one group
  • LED indicators: OK LED indicates successful power-up, configuration, and no hardware faults have been detected.
  • Backplane current consumption: 5V output: 150mA maximum
  • Isolation: User input to logic (optical) and to frame ground - 250VAC continuous; 1500VAC for 1 minute
  • Diagnostics: Loss of Internal Power A/D conversion malfunction greater than 6% of full scale
  • Input Impedance: 100K Ohms minimum
  • Accuracy at 25 degrees Celsius: +/-0.3% typical of full scale, +/-0.5% maximum of full scale
  • Accuracy at 0 to 60 degrees Celsius: +/-1% maximum of full scale
  • Filter Response: 32 HZ =/- 20%
  • Update Rate: 7.5 ms
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on IC200ALG263 . Santa Clara Systems carries 5,875 items from General Electric.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
