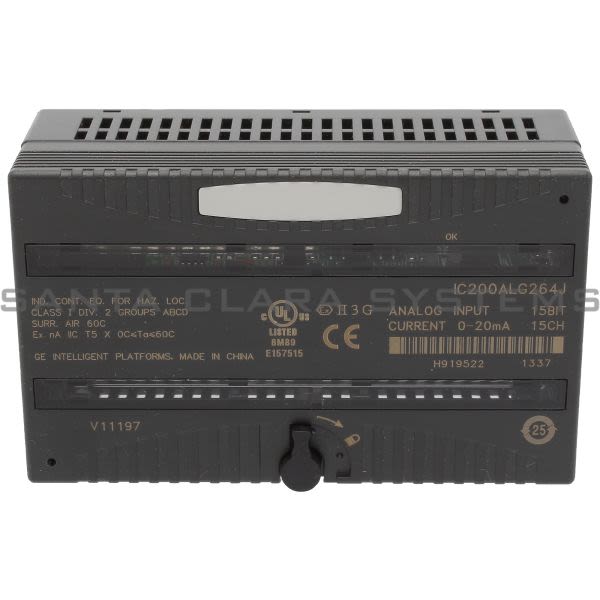

• General Electric IC200 ALG 264 Analog Input 15 Bit Current 15CH Product Image

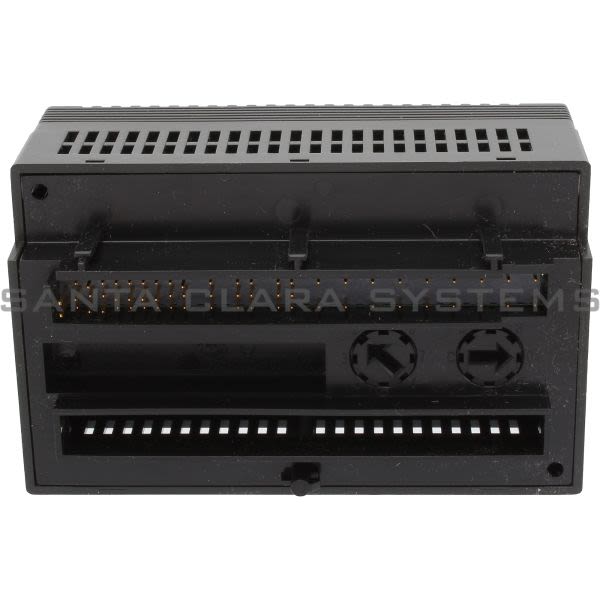

  • General Electric IC200 ALG 264 Analog Input 15 Bit Current 15CH Product Image

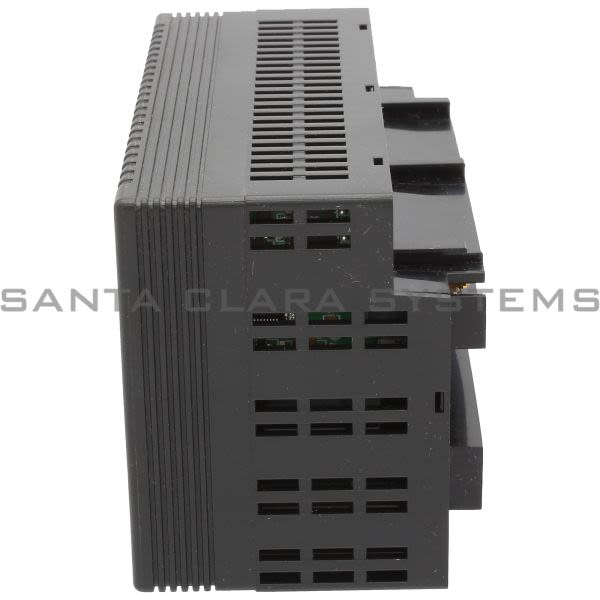

  • General Electric IC200 ALG 264 Analog Input 15 Bit Current 15CH Product Image

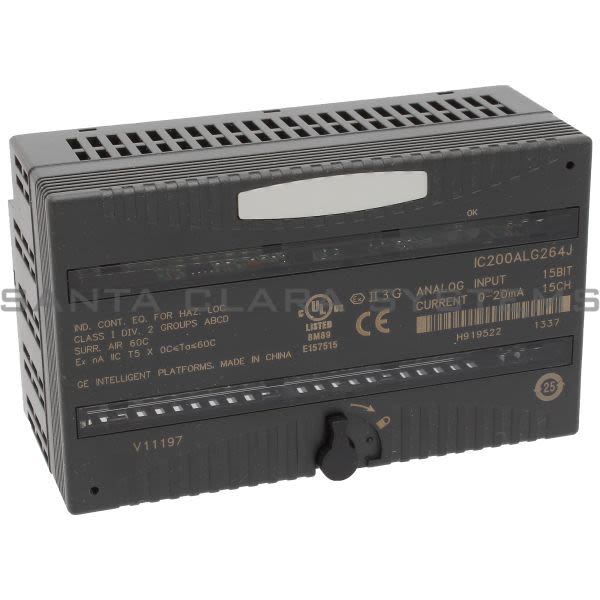

  • General Electric IC200 ALG 264 Analog Input 15 Bit Current 15CH Product Image
  • General Electric IC200 ALG 264 Barcode

IC200ALG264

Product Summary:

  • Type of Device: Analog Input Module; 15 Channel
  • Size: 4.300 Inch Width x 1.956 Inch Depth x 2.630 Inch Height
  • Accuracy: +/-0.3% and +/-0.5% of Full Scale at 25 deg C
  • Input Filter Response: 24 +/-20% Hz
  • Input Impedance: Voltage mode: 100 kilo-Ohm maximum, Current mode: 200 Ohm maximum
Get a Quote

Current response time:

15 Minutes 53 Seconds
  • Description: Analog Input 15 Bit Current 15CH
  • Type of Device: Analog Input Module; 15 Channel
  • Product Description: GE Fanuc Analog input provides an interface to 15 current inputs. It features fifteen single-ended input channels, one group and jumper selection of 4 - 20mA or 0 - 20mA operating range. It measures 4.300 Inch x 1.956 Inch x 2.630 Inch. It receives power from the backplane power supply and no external power source is required for module operation. It has a built-in power LED that indicates the presence of internally generated field power. Power for the module is supplied from an external source.
  • Size: 4.300 Inch Width x 1.956 Inch Depth x 2.630 Inch Height
  • Resolution: 4 - 20 Milli-Amp: 0.5 Micro Amp= 1 count; 0-20 Milli-Amp: 0.625 Micro Amp = 1 Count
  • Accuracy: +/-0.3% and +/-0.5% of Full Scale at 25 deg C
  • Input Filter Response: 24 +/-20% Hz
  • Input Impedance: Voltage mode: 100 kilo-Ohm maximum, Current mode: 200 Ohm maximum
  • Number Of Channels: 15
  • Select Code: AUTOMATION
  • Update Rate: 7.5 ms
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on IC200ALG264 . Santa Clara Systems carries 5,875 items from General Electric.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
