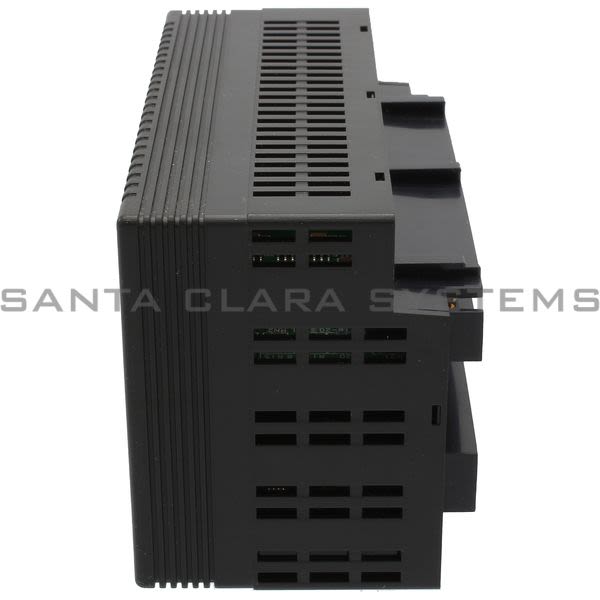

• General Electric IC200 MDL 940 Output Relay Product Image

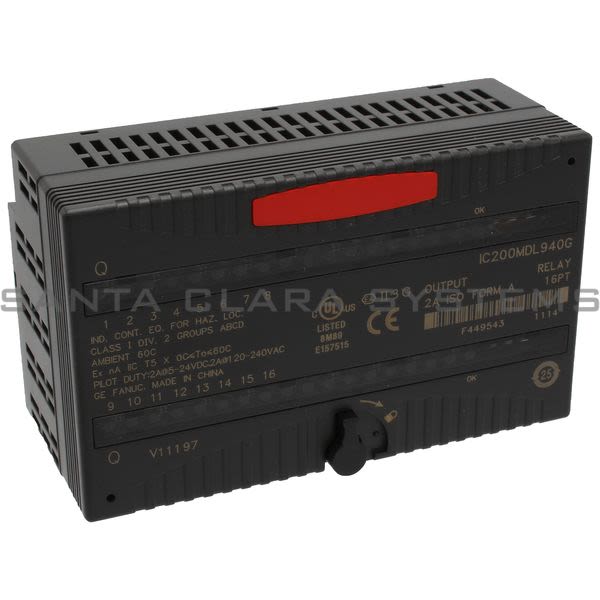

  • General Electric IC200 MDL 940 Output Relay Product Image

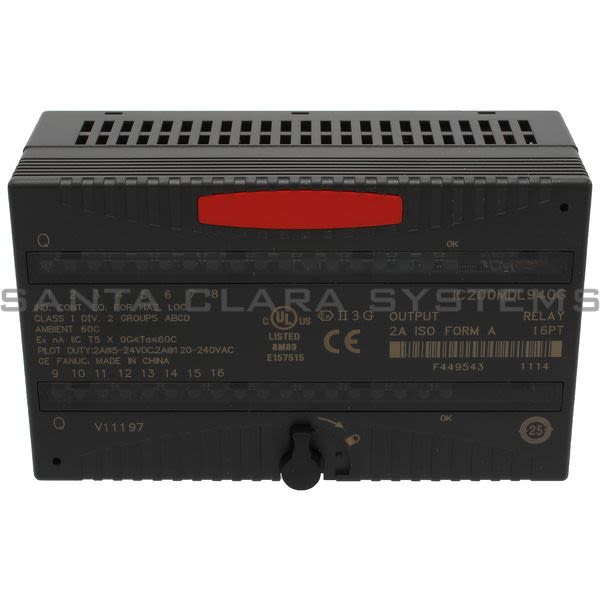

  • General Electric IC200 MDL 940 Output Relay Product Image

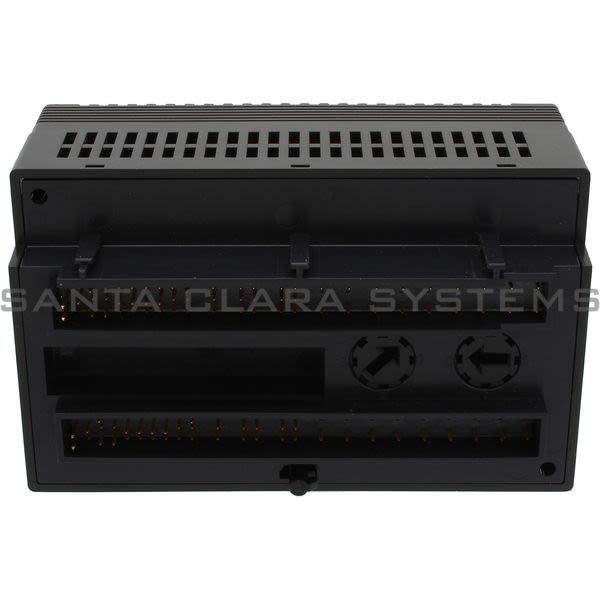

  • General Electric IC200 MDL 940 Output Relay Product Image
  • General Electric IC200 MDL 940 Barcode

IC200MDL940

Product Summary:

  • Type of Device: Isolated Relay Output
  • Size: 4.300 Inch Width x 1.956 Inch Depth x 2.630 Inch Height
  • Response Time: 10 ms On/Off
  • Number of Points: 16
  • Sub Brand: VersaMax
Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: Output Relay
  • Type of Device: Isolated Relay Output
  • Product Description: GE Fanuc Versamax discrete output module has current rating 2 Amps per 16 isolated points. Discrete output module has LED points to indicate ON/OFF status. It offers superior protection against short circuit and overcurrent.
  • Size: 4.300 Inch Width x 1.956 Inch Depth x 2.630 Inch Height
  • Response Time: 10 ms On/Off
  • External Power Supply: 0 - 125 Volt DC, 5/24/125 Volt DC Nominal, 0 - 265 Volt AC (47-63 Hz), 120/240 Volt AC Nominal
  • Load Current: 10 Milli-Amp Minimum Per Point; 2 Amp at 5 - 265 Volt AC Maximum (Resistive); 2 Amp at 5 - 30 Volt DC Maximum (Resistive); 0.2 Amp at 31 - 125 Volt DC Maximum (Resistive)
  • Number of Points: 16
  • Output Range: 0 - 125 Volt DC, 5/24/125 Volt DC Nominal; 0 - 265 Volt AC, 120/240 Volt AC Nominal
  • Sub Brand: VersaMax
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on IC200MDL940 . Santa Clara Systems carries 5,875 items from General Electric.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
