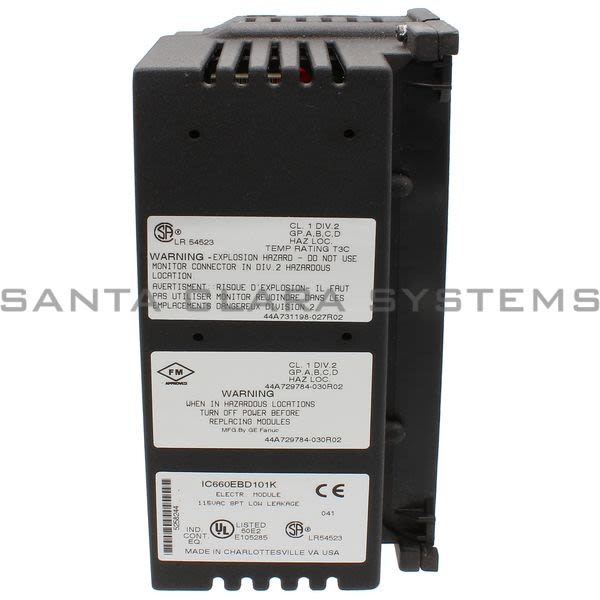

• General Electric IC660 BBD 101 I/O Block | Genius Product Image

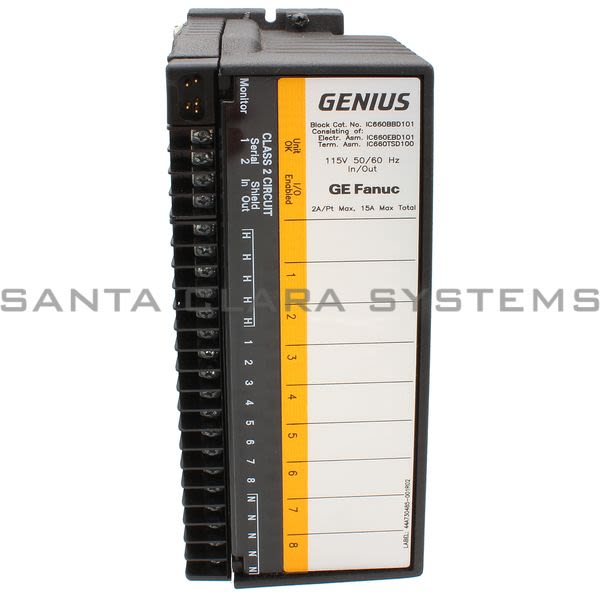

  • General Electric IC660 BBD 101 I/O Block | Genius Product Image

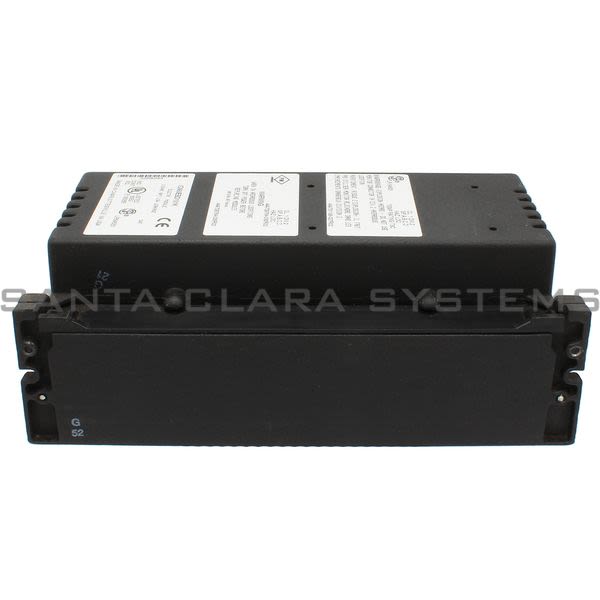

  • General Electric IC660 BBD 101 I/O Block | Genius Product Image
  • General Electric IC660 BBD 101 I/O Block | Genius Product Image
  • General Electric IC660 BBD 101 Barcode

IC660BBD101

Product Summary:

  • Type of Device: Genius 8PT I/O Low Leakage Block 115VAC 50/60HZ
  • Weight: 4 lbs. (1.8 kg)
  • Size (height x width x depth): 8.83? (22.44cm) x 3.34? (8.48cm) x 3.91? (9.93cm)
  • LEDs (I/O Block): Unit OK, I/O Enabled
  • LEDs (each circuit): On logic side of switch
Get a Quote

Current response time:

By 5AM PT on Friday
  • Description: I/O Block | Genius
  • Type of Device: Genius 8PT I/O Low Leakage Block 115VAC 50/60HZ
  • Product Description: GE Fanuc Block 8-Point genius bus discrete input module can interface discrete sensors and actuators to a communication bus. Module has configurable features that include output pulse test capability, selectable input filter time from 10 - 100 milli-second, output powerup defaults, output hold last state or default and each circuit has electronic fusing that shuts down the circuit in 5 milli-seconds. It features open wire over temperature failed switch input diagnostics and the control power is tapped off the input/output device voltages wired to the terminals. The internal electronic short circuit trip trips at 100 milli-second.
  • Weight: 4 lbs. (1.8 kg)
  • Response Time: Input 2 ms Plus Configurable Filter 10 - 100 ms in 10 ms Increments; Outputs Zero crossing
  • Size (height x width x depth): 8.83? (22.44cm) x 3.34? (8.48cm) x 3.91? (9.93cm)
  • LEDs (I/O Block): Unit OK, I/O Enabled
  • LEDs (each circuit): On logic side of switch
  • Block to Block Isolation: 1500V
  • Heat Dissipation: 16W maximum with 8 inputs, 43.5W maximum with 8 outputs on at 2 Amps.
  • Standby power (all inputs and outputs off): 8.5 Watts
  • Operating voltage (single source): 93-132VAC
  • Frequency: 47-63 Hz
  • Power supply dropout time: 1 cycle (16.7ms at 60Hz, 20ms at 50Hz)
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on IC660BBD101 . Santa Clara Systems carries 5,875 items from General Electric.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
